Raise And Lower Monitor Screen; Remove Monitor Stand For Mounting - NEC MultiSync LCD1560VM User Manual

Vacation Switch
Power Button
Figure F.1

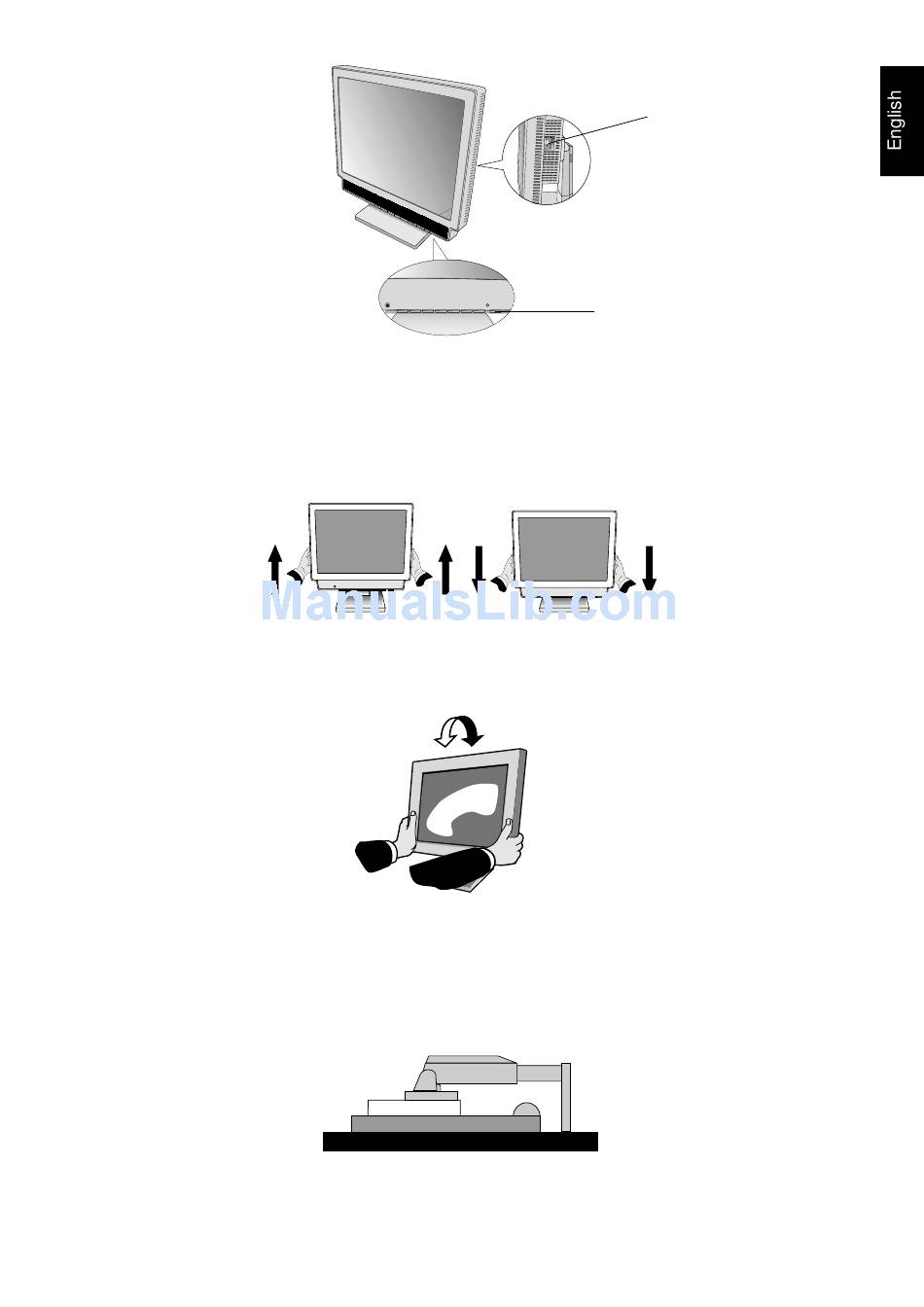

Raise and Lower Monitor Screen

The monitor may be raised or lowered.
To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
Figure RL.1
Tilt
Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).
Figure TS.1

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface. (Figure S.1)
Figure S.1
English-5
