4.7 Internal Chassis View

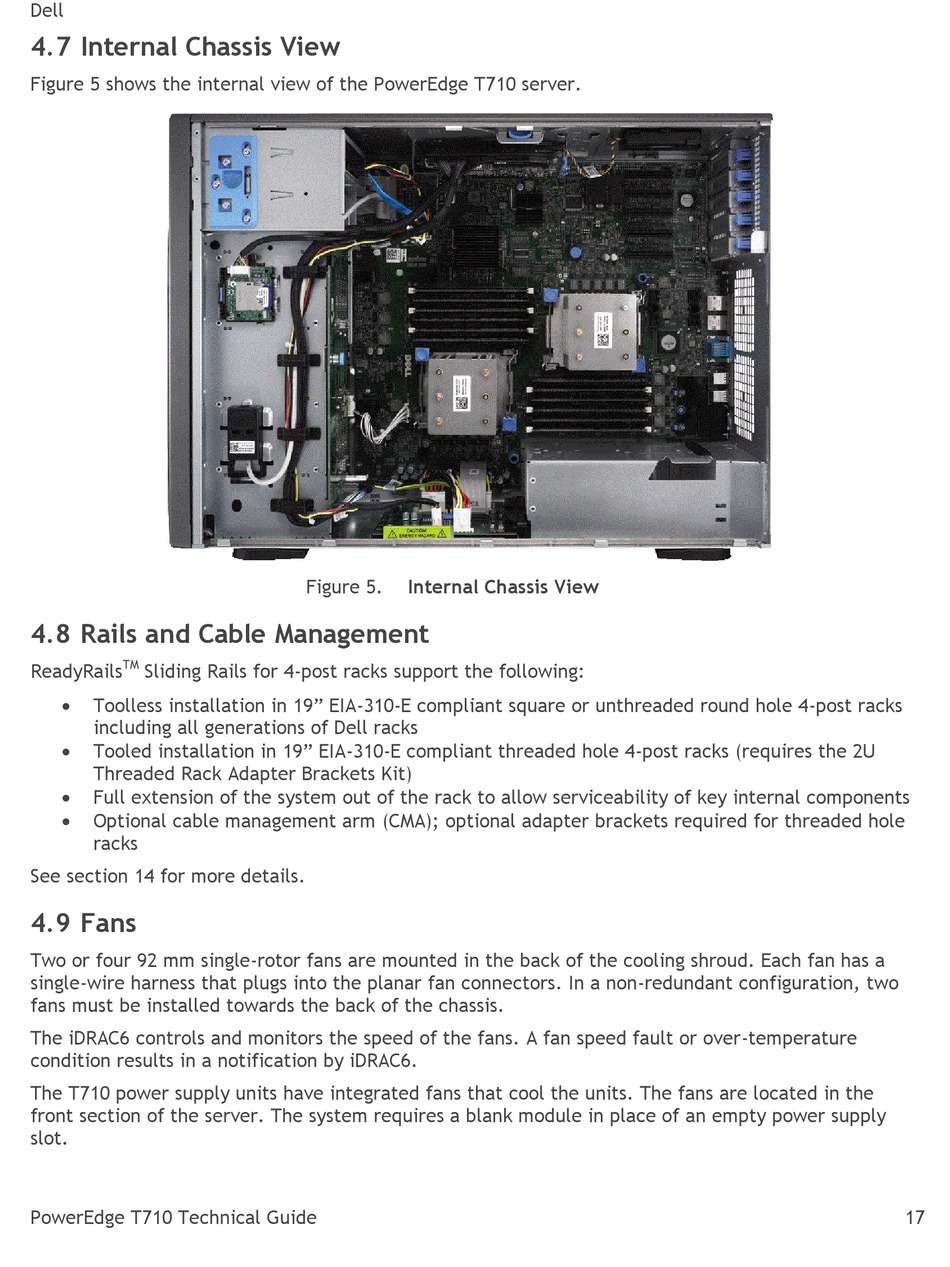

Figure 5 shows the internal view of the PowerEdge T710 server.

4.8 Rails and Cable Management

TM
ReadyRails Sliding Rails for 4-post racks support the following:

Toolless installation in 19‖ EIA-310-E compliant square or unthreaded round hole 4-post racks
including all generations of Dell racks

Tooled installation in 19‖ EIA-310-E compliant threaded hole 4-post racks (requires the 2U
Threaded Rack Adapter Brackets Kit)

Full extension of the system out of the rack to allow serviceability of key internal components

Optional cable management arm (CMA); optional adapter brackets required for threaded hole
racks
See section 14 for more details.

4.9 Fans

Two or four 92 mm single-rotor fans are mounted in the back of the cooling shroud. Each fan has a
single-wire harness that plugs into the planar fan connectors. In a non-redundant configuration, two
fans must be installed towards the back of the chassis.
The iDRAC6 controls and monitors the speed of the fans. A fan speed fault or over-temperature
condition results in a notification by iDRAC6.
The T710 power supply units have integrated fans that cool the units. The fans are located in the
front section of the server. The system requires a blank module in place of an empty power supply
slot.
PowerEdge T710 Technical Guide
Figure 5. Internal Chassis View
