INSTALLATION
INSTRUCTIONS

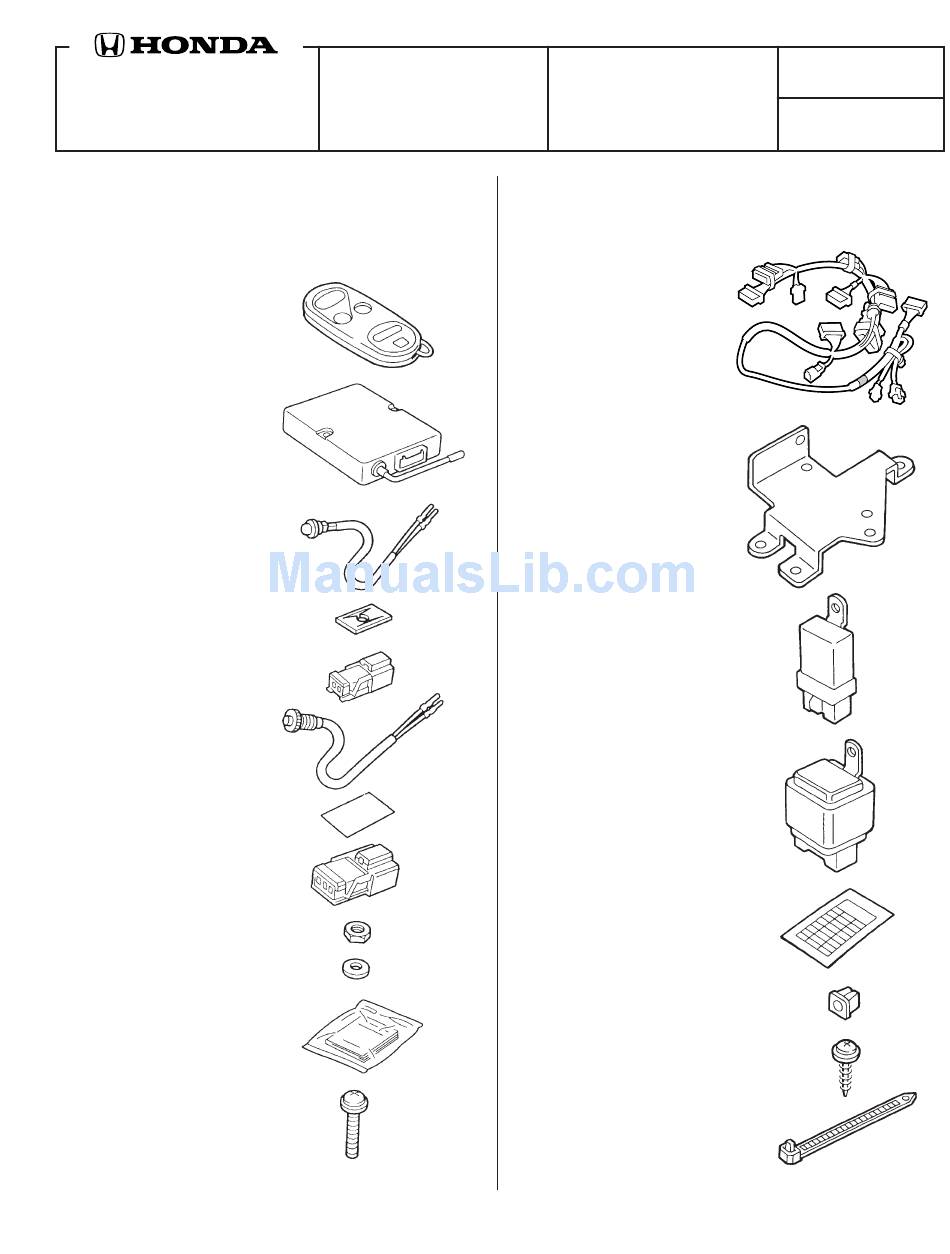

PARTS LIST
Security System:
P/N 08E51-S84-100
2 Remote controls
Control unit
LED
(Not used)
Push nut
(Not used)
2-Pin connector (for LED)
(Not used)
Disarm switch
Window decal
3-Pin connector
(For disarm switch)
Nut, 12 mm
Washer
Owner's Manual
2 Washer-screws, 4 x 30 mm
© 2004 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
SECURITY SYSTEM
Attachment Kit:
P/N 08E55-S2A-101
Security system harness
Control unit bracket
Relay, 4-pin
Relay, 6-pin
Fuse label
4 Grommets
4 Self-tapping screws
9 Wire ties
AII 27627 (0408)
Application
2005 S2000
08E55-S2A-1010-91
Publications No.
AII 27627
Issue Date
AUG 2004
1 of 8
