Honda 2005 CIVIC Installation Instructions Manual

2005 civic 2 and 4-door security system
Hide thumbs

1
2
3
4
5
6
7
8
9
10

Advertisement

Quick Links

x
Download this manual
Download this manual See also: Owner's Manual
INSTALLATION
INSTRUCTIONS

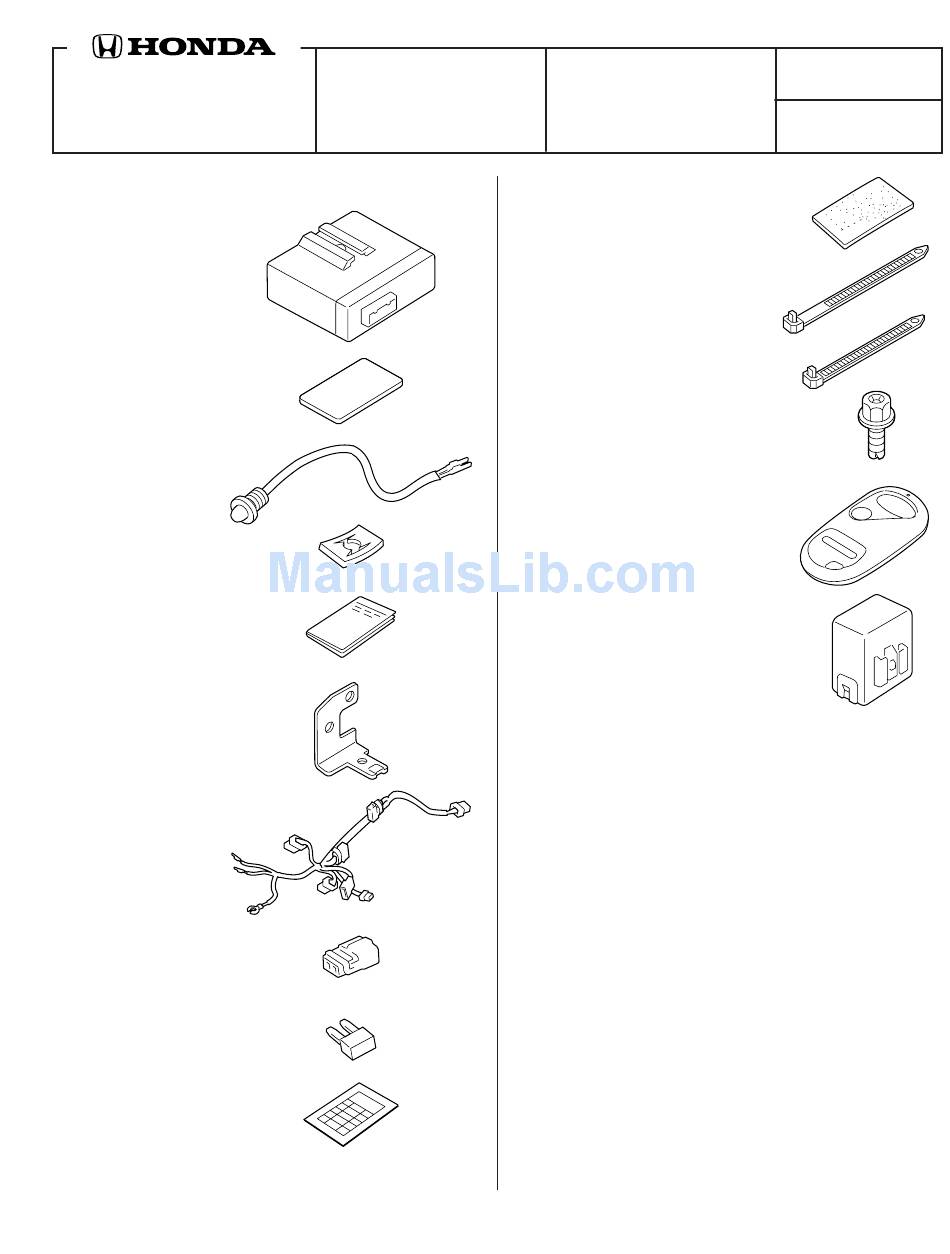

PARTS LIST
Security unit
Window decal
LED
Push nut
Owner's Manual
Bracket
Harness
2-Pin connector (for LED)
Fuse, 2A
Fuse label
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
SECURITY SYSTEM (DX, VP)
08E50-S5D-100F
AII 27876 (0408)
Application
2005 CIVIC
2 AND 4-DOOR
3 Cushion tapes
6 Long wire ties
3 Short wire ties
Ground bolt
2 Transmitters
Keyless unit
TOOLS AND SUPPLIES REQUIRED
Small flat-tip screwdriver
#2 Phillips screwdriver
Eye protection (face shield, safety goggles, etc.)
Center punch
Drill
5.5 mm Drill bit
File
Felt-tip pen
Ratchet
10 mm Socket
Tape measure
Diagonal cutters
Tape
Publications No.
AII 27876
Issue Date
AUG 2004
1 of 10
08E55-S5D-1F02-91

Advertisement

Table of Contents
loading

  Also See for Honda 2005 CIVIC

Honda Civic Owner's Manual
Honda Civic Owner's Manual 470 pages
Honda 2005 Civic Owner's Manual
Honda 2005 Civic Owner's Manual 240 pages
Honda Civic Sedan 2005 Owner's Manual
Honda Civic Sedan 2005 Owner's Manual 236 pages

  Related Manuals for Honda 2005 CIVIC

  Summary of Contents for Honda 2005 CIVIC

  • Page 1: Installation Instructions

    5.5 mm Drill bit File 2-Pin connector (for LED) Felt-tip pen Ratchet 10 mm Socket Tape measure Fuse, 2A Diagonal cutters Tape Fuse label 1 of 10 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27876 (0408) 08E55-S5D-1F02-91...

  • Page 2: Installation

    STEERING COLUMN LOWER STEERING COVER COLUMN COVER Push. RETAINING TABS (4) SELF-TAPPING SCREW DASHBOARD WASHER- RETAINING LOWER COVER SCREW TABS (6) KNOB 2 of 10 AII 27876 (0408) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
  • Page 3 SECTION RETAINING TABS (6) BOOT CENTER CONSOLE TRIM ESCUTCHEON CLIPS (3) CLIPS (3) RETAINING TABS (4) CENTER 3624030K CONSOLE TRIM 3 of 10 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27876 (0408)
  • Page 4 CLIPS (9) SELF- COVER TAPPING CIGARETTE SCREW LIGHTER CONNECTOR FOG LIGHT SWITCH ACCESSORY ILLUMINATION CONNECTOR SOCKET BULB CLIPS (9) (if equipped) CONNECTOR 3804020K 4 of 10 AII 27876 (0408) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
  • Page 5 FOG LIGHT CONNECTOR SWITCH (if equipped) (if equipped) SHIFT LEVER SCREW DASHBOARD CENTER Place in the CLIPS (6) LOWER COVER Neutral position. 3620020K 5 of 10 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27876 (0408)
  • Page 6 FUSE BOLT (Reuse.) 14. Remove the bolt that fastens the fuse box, and slide the fuse box down. 6 of 10 AII 27876 (0408) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
  • Page 7 17. Reinstall the fuse box. Be careful not to pinch the push the LED terminals into the 2-pin connector harness. until they click into position, then lower the lock. 7 of 10 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27876 (0408)
  • Page 8 16-pin connector in the locations shown. GROUND Reattach the lock to the connector. TERMINAL HARNESS 8 of 10 AII 27876 (0408) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
  • Page 9 UPPER STEERING COLUMN COVER VEHICLE HARNESS HARNESS SECURITY CUSHION UNIT TAPE SECURITY SYSTEM HARNESS 2-PIN CONNECTOR SECURITY SYSTEM HARNESS 9 of 10 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27876 (0408)
  • Page 10 5 minutes. 31. Attach the 2A “OPTION FUSE” fuse label over the No.15 on the back of the dashboard lower cover. 10 of 10 AII 27876 (0408) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
