Page 1: Air Conditioning

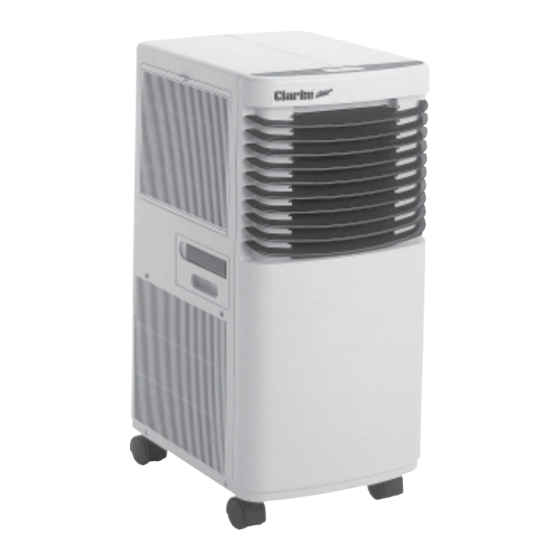

MOBILE AIR CONDITIONING & DEHUMIDIFYING UNIT Model No. CA7500 OPERATING & MAINTENANCE INSTRUCTIONS 1001... -
Page 2: Table Of Contents
GUARANTEE @192.168.1.10.newnet.co.uk This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 3: Unpacking And Introduction
UNPACKING Once the outer cover has been removed, in accordance with the information printed on the carton, the following items are to be found in styrafoam trays mounted on top of the air-con unit. 2 Metre Outlet Hose Fig.1 Outlet Hose Adapter Hose/Wall Adapter Flat Outlet Adapter Drain Hose... -
Page 4: Elecrtrical Connections
ELECTRICAL CONNECTIONS WARNING: THIS MACHINE MUST BE EARTHED. This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard domestic, electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. -
Page 5: Installation
INSTALLATION REMEMBER - If the unit has been laid on its side for any reason, it MUST be stood in an upright position for at least 6 hours before switching ON, • Always ensure that there is an air gap, between a wall and the rear of the unit, of at least 50cm, whatever the mode being used. -
Page 6: Control Panel Description
CONTROL PANEL The control panel is located on top of the unit, and all functions are operated by pressure pad type controls as illustrated in fig.4. Fig.4 In the centre of the panel is an LCD window, shown in fig.5, and in which is displayed the current status of the unit. -
Page 7: Control Functions
FUNCTIONS By pressing the pressure pads with the symbols as illustrated, the functions in the accompanying description will be initiated. Start or stop the machine. Each press of the button will scroll through the three available modes ..Fan, Cool or Dehumidify. Stop at the symbol for your desired mode. -
Page 8: Operation
OPERATION Ensure the unit is located in accordance with previous instructions, and plug it into the mains supply. On doing so, the system will carry out a self test and you should hear a beep, indicating that the mains power has been detected and the unit is functioning correctly. If the unit is to be used for air conditioning (cooling), ensure the outlet hose is connected to the air outlet. - Page 9 For this reason, a second drain is provided which may be connected to either a larger container or a permanent drain. This continuous drain connector is shown in fig. 2 on page 3. Simply pull the connector out from the side of the unit, and attach the hose, which is supplied for the purpose, or a hose of similar size, which may then be led away to a large container or drain.
-
Page 10: Maintenance
C) with a neutral detergent. Allow it to dry before replacing it again over the door hooks. IMPORTANT: The filter should be replaced every two or three washes. See your CLARKE dealer. • Whilst the filter door is open, inspect the cooling fins of the evaporator. VERY CAREFULLY remove any dust that may be present using the soft brush attachment of a vacuum cleaner, taking great care not to press down on to the fins or damage them in any way. -
Page 11: Troubleshooting
PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com SERVICE: Service@clarkeinternational.com Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International...
