Summary of Contents for Clarke AC13050

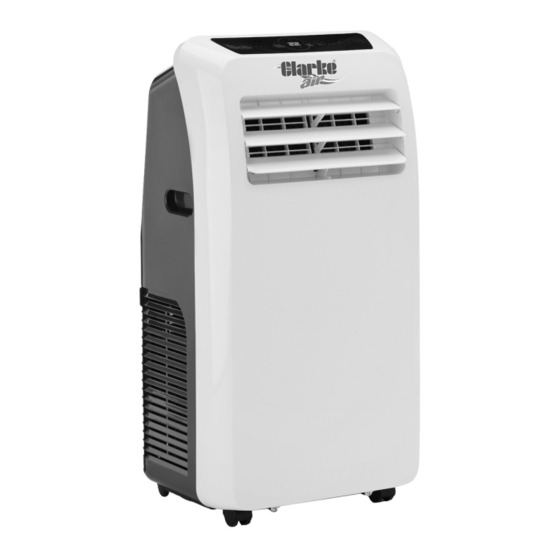

- Page 1 PORTABLE AIR CONDITIONER MODEL NO: AC13050 PART NO: 3230578 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC11/22 - rev 2...
-
Page 2: Technical Specifications
INTRODUCTION Thank you for purchasing this CLARKE Portable Air Conditioner. Before attempting to operate the machine, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the product giving you long and satisfactory service. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Carefully read the instructions before operating the unit. • This air conditioner is for indoor use only. • This air conditioner must be only connected to a 230 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the air conditioner is used. - Page 4 • The air conditioner unit must always be stored and transported upright, otherwise irreparable damage may be caused to the compressor; if in doubt we suggest waiting at least 24 hours before starting the unit. • Avoid restarting the air conditioning unit unless 3 minutes have passed since being turned off.
-
Page 5: Environmental Protection
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility. Under the Waste Batteries and Accumulators Regulations Act 2009, Clarke International are required to inform the owner of products containing batteries (as defined within these regulations), that they must also be disposed of at a recycling centre or suchlike facility. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230 V AC 50Hz. - Page 7 OVERVIEW DESCRIPTION DESCRIPTION Air Outlet Flap Air Filter Frame (side) Control Panel Power Cable Storage Hooks Handle Drainage Cap and Plug Air Intake (rear) Plug Storage Socket Air Outlet Port (for ducting) Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 8 CONTROL PANEL AND REMOTE CONTROL UNIT 1. Power Button Press the button to turn the air conditioner ON/OFF. 2. Swing Button Pressing the swing button makes the louvres move up and down. 3. Speed Button Press the speed button to select between High / Mid / Low speed.
-
Page 9: Installation
2. Exhaust Duct Set 3. Remote Control Unit (including 2 x AAA batteries) 4. Window Kit Should any loss or damage be apparent, please contact your CLARKE dealer immediately. INSTALLATION IMPORTANT: Do not position your air conditioner where it will be exposed to sources of heat above 35 1. - Page 10 5. Move the air conditioner into position and extend the flexible exhaust duct to suit your window layout. NOTE: The length of the exhaust duct is variable between 480mm and 1500mm (adaptors included). Using a shorter length of ducting uses less energy. NOTE: The length of duct has been designed to suit the specification of the air conditioner.
-
Page 11: Fitting Batteries
FITTING BATTERIES 1. Slide the battery cover away as indicated by the arrow on the rear of the remote control. • Fit 2 x AAA batteries into the battery compartment following the polarity diagram inside. OPERATION GENERAL OPERATION • If the room is exposed to direct sunlight, draw any curtains during the sunniest part of the day. -
Page 12: Fan Mode (Fan)
FAN MODE (FAN) 1. Press the mode button repeatedly to select FAN. • The FAN indicator lamp lights up. 2. Press the speed button to select between High / Mid / Low speed. NOTE: In fan mode, you cannot set the temperature. -
Page 13: Timer Mode
The following fault codes can be displayed on the control panel. Code Diagnosis of Fault Action Required Coil temp is abnormal. Return to CLARKE Service Department for repair. Room temp is abnormal. Return to CLARKE Service Department for repair. Anti-freezing protection. -
Page 14: Continuous Drainage
4. Remove the drain cap / plug from the drain port - water will drain from the water tank. 5. Once drained, replace the drain cap / plug and switch back on. CONTINUOUS DRAINAGE 1. Remove the drain cap / plug from the drain port 2. - Page 15 1. Remove the rear grille. 2. Slide out the 3 air filters. NOTE: One of the filters is attached to the rear grille. 3. Wash the air filters gently in warm water with a mild detergent. 4. Rinse the filters and dry them gently out of direct sunlight.
-
Page 16: Troubleshooting
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. - Page 17 AC13050 COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 18 Description Description Wheel Driving rocker Chassis Step motor Compressor foot pad Swing motor base Gasket Connecting rod Driven rocker Compressor assembly Shaft sleeve Exhaust pipe Front panel Exhaust pipe dumping rubber Support strip Compressor cable assembly Air deflecting strip (lower) Compressor bushing Air deflecting strip (middle) Air suction pipe...
-
Page 19: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
