Summary of Contents for Clarke AC9000

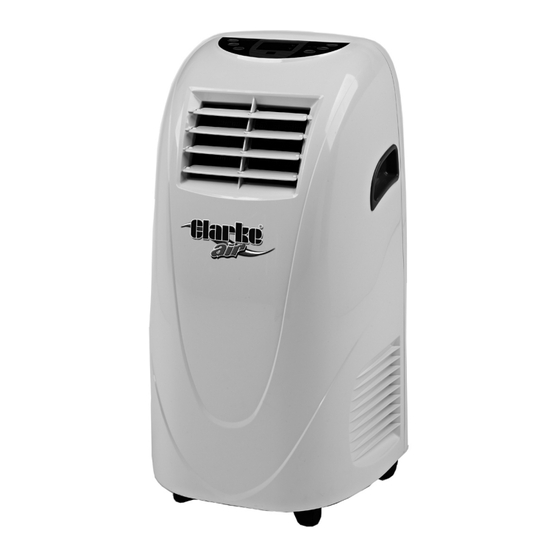

- Page 1 PORTABLE AIR CONDITIONER MODEL NO: AC9000 PART NO: 3230570 OPERATION & MAINTENANCE INSTRUCTIONS GC0113...
-
Page 2: Environmental Protection
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Safety Warnings
3. This appliance is designed to condition residential environments and must not be used for other purposes. 4. If the appliance requires repair, always contact your CLARKE dealer. Always insist on original spare parts. Repairs carried out by unauthorized persons may be dangerous and invalidate the guarantee. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 5 OVERVIEW DESCRIPTION DESCRIPTION Control Panel Power Cable & Plug Air Outlet Louvre Filter Access Panel Handle Water Drain Plug Air Inlet Air Discharge Opening Castor Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: Installation
CONTENTS Ensure the air conditioner and its components suffered no damage during transit and that all components are present. Should any loss or damage be apparent, please contact your CLARKE dealer immediately. The following components are supplied with the unit;... - Page 7 5. The flexible exhaust ducting can be bent to an angle if followed by a straight section, but tight curves and kinks must always be avoided. 6. The window slider plate is designed to fit most standard vertical sash type and horizontal sliding windows.
-
Page 8: The Control Panel
8. Slide the battery cover away and install two AAA batteries as indicated by the diagram inside the battery compartment. THE CONTROL PANEL The control panel has the following buttons: Press this button to select AUTO, COOL, or FAN mode. 1. -
Page 9: The Remote Control
THE REMOTE CONTROL The remote control incorporates the following controls: Timer Press to access the time setting mode Sleep Press to select the SLEEP mode Max Cool Press to select this mode for maximum cooling Optional fan running speed High Optional fan running speed Press to raise the temperature or running time Down... -
Page 10: Operation
OPERATION Use the MODE button to switch between the following three operating modes; AUTOMATIC ADJUSTING MODE (AUTO) 1. Press the MODE button to choose the automatic mode. The AUTO indicator will light up. • After this, the operating condition will depend upon room temperature. When the room temperatue is higher than 25 C the unit will run in COOL mode. -
Page 11: Draining Off The Water
3. Position the front louves to direct the airflow as required. DRAINING OFF THE WATER The AC9000 has a self-evaporating system. The condensing water will recycle to cool the condenser, which improves cooling efficiency but also saves energy and reduces noise. -
Page 12: Maintenance
MAINTENANCE CLEANING 1. Always turn off the unit and disconnect it from the power supply before cleaning. 2. Clean the outside surfaces of the unit with a duster or a soft, moist cloth. Do not use solvents which could damage the plastic components. 3. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Check Solution The unit fails to operate Check for power failure if unit is Plug the unit into the socket. plugged in. Check the switch is on and that Replace fuse or switch on. the fuse is not blown. Check that full (FL) is not Drain the water container. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Power Supply 220-230V/50Hz Weight 25.7 kg Dimensions (D x W x H) 354 x 434 x 789 mm Water Holding Capacity 1.0 L Air Flow Volume 360 m Refrigerant Type R410A Refrigerant Volume 500 g Operating Temperature 17 - 35 Exhaust Duct Diameter 150 mm Exhaust Duct Length (expanded) -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
