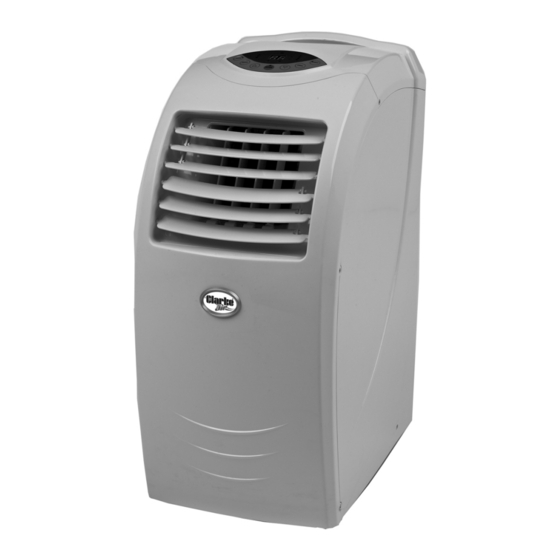

- Page 1 PORTABLE AIR CONDITIONER MODEL NO: AC12000 PART NO: 3230572 OPERATION & MAINTENANCE INSTRUCTIONS GC12/13...
-
Page 2: Environmental Protection
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Safety Warnings
3. This appliance is designed to condition residential environments and must not be used for other purposes. 4. If the appliance requires repair, always contact your CLARKE dealer. Always insist on original spare parts. Repairs carried out by unauthorized persons may be dangerous and invalidate the guarantee. -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 5 OVERVIEW DESCRIPTION DESCRIPTION Control Panel Handle Vertical Louvre Power Cable Storage Hook Horizontal Louvre Power Cable & Plug Air Inlet Grille Air Outlet Grill Air Filter Water Refill Port Flexible Exhaust Duct Water Drain Port Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: Installation
Ensure the air conditioner and its components suffered no damage during transit and that all components are present. Should any loss or damage be apparent, please contact your CLARKE dealer immediately. The following components are supplied with the unit; 1. Flexible exhaust duct. - Page 7 6. Pass the discharge end out of the nearest window. NOTE: The length of the exhaust duct is variable between 600 mm and 1700 mm (adaptors included). Using a shorter length of ducting uses less energy. NOTE: The length of duct has been designed to suit the specification of the air conditioner.
- Page 8 8. The window slider plate is designed to fit most standard vertical sash type and horizontal sliding windows. However, it may be necessary for you to adapt the installation procedure for various other types of window. 9. Extend the two parts of the window slider and fit into the window opening, below or beside the window panel.
-
Page 9: Panel Control
PANEL CONTROL The control panel has the following buttons: 1. TIMER: Press this button to enter the time-setting mode. 2. MODE: Press this button to select COOL, DRY or FAN mode. 3. UP/DOWN: Press the UP or DOWN buttons to set the temperature or adjust the time in the TIMER mode. -
Page 10: Remote Control
REMOTE CONTROL The remote control incorporates the following controls: The POWER button turns the unit on or off. The TIMER button sets the timer. The SWING button makes the vertical louvre swing automatically from side to side. Switches between degrees Celsius to degrees Fahrenheit. Selects the COOLING mode. -
Page 11: Operation
OPERATION SETTING THE TIMER 1. Press the TIMER button when the unit is on. The LED display will flash five times. 2. During this period, press the Up or Down button to adjust the set time from 0.5 hour to 24 hour. •... -
Page 12: General Operation
2. Set the fan speed to Low and the LED will display the room temperature. These elements cannot be adjusted. GENERAL OPERATION 1. Set the fan speed switch to high and the thermostat to the coolest position for the initial startup, then set the fan switch to low and lower the thermostat to a comfortable setting. -
Page 13: Draining Off The Water
DRAINING OFF THE WATER The AC12000 has a self-evaporating system. The condensing water will recycle to cool the condenser, which improves cooling efficiency but also saves energy and reduces noise. When the water container is full, the water Full indicator will illuminate and the appliance will stop running. -
Page 14: Maintenance
MAINTENANCE CLEANING 1. Always turn off the unit and disconnect from the power supply before cleaning. 2. Clean the outside surfaces of the unit with a duster or a soft, moist cloth. Do not use solvents which could damage the plastic components. 3. -
Page 15: Troubleshooting
TROUBLESHOOTING Problem Check Solution The unit fails to operate Check for power failure if unit is Plug the unit into the socket. plugged in. Check the switch is on and that Replace fuse or switch on. the fuse is not blown. Is the set time correct? Change the set time. -
Page 16: Parts List
PARTS LIST PART NO DESCRIPTION PART NO DESCRIPTION Logo Surround Right Panel Logo Fastening Front Panel Lower Fan Motor Stepping Motor Electronic Control Box Cover Horizontal Louve Connector Capacitor Fixing Clip Horizontal Louvre Capacitor Air Outlet Drain Plug Vertical Louvre Connector Drainage Outlet Vertical Louvre Fan Motor Capacitor A... -
Page 17: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Power Supply 220-230V/50Hz Weight 33 kg Dimensions (L x W x H) 535 x 335 x 710 mm Water Holding Capacity 2.0 L Air Flow Volume 450 m Refrigerant Type R410A Refrigerant Volume 480 g Extraction Rate 1 Litre/day Operating Temperature 18 - 40 Exhaust Duct Diameter... -
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
