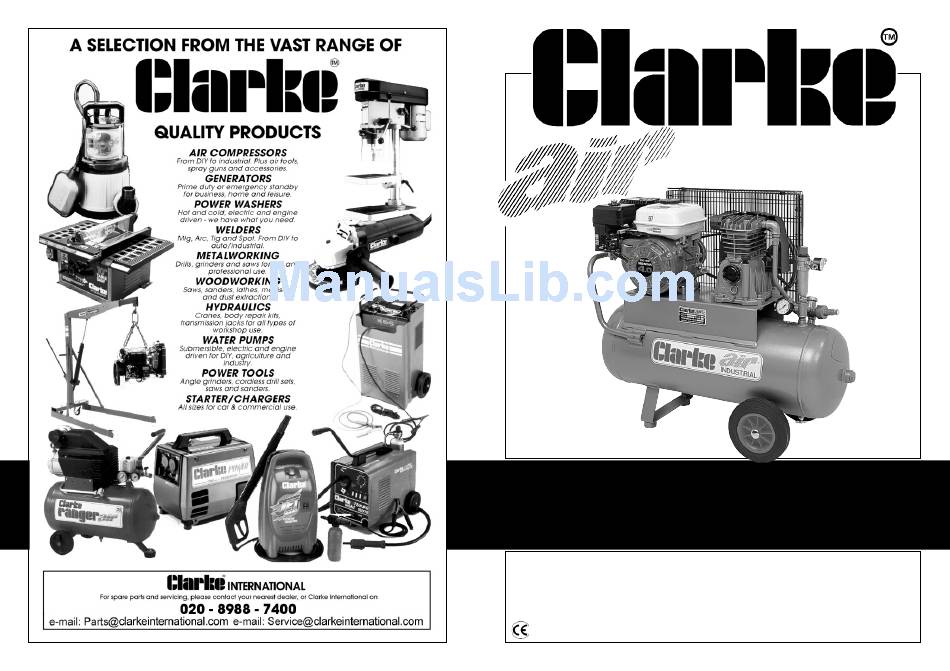

- Page 1 Air Compressor PP10ND • PPH10ND • PP15ND • PPH15ND Operating & Maintenance Instructions © 1002...
-
Page 2: Guarantee
PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 NOTE: Specifications are correct at the time of going to press. Clarke International e-mail as follows: reserves the right to change specifications at any time, as it sees fit, in the interests of safety or improvement in design. -
Page 3: Table Of Contents
Read these safety instructions before using the equipment. INTRODUCTION Thank you for purchasing this Clarke portable compressor. The unit is powered by a Honda engine, a manual for which, is provided separately. Please refer to that manual for all matters relating to the engine, ...starting and stopping procedures, maintenance etc. -
Page 4: For Your Own Safety
FOR YOUR SAFETY WARNING As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked, or ignored, personal injury to the operator, or damage to property may result. -
Page 5: Important General Notes
NEVER allow anyone, not fully familiar with compressors, to use this equipment. • DO NOT alter the engine settings..these settings are set at the factory. Should they need recalibration - consult your Clarke dealer - 16 - - 5 -... -
Page 6: General Layout
Suction rendered difficult or Larger fresh-air inlet. impossible at suction intake, or the air being taken in is too warm. Change pressure gauge. Pressure gauge defective. Connect a supplementary Unit too small in relation to air Fig.1 compressor or install a larger consumption. -
Page 7: Preparation For Use
Clean or change valves. • Attach the air tool/spray gun to the air hose...If using snap couplings, use dust or choked up. a whip end, available from your Clarke dealer. Inspection cover or plug Empty air receiver and leaking. change seal. -
Page 8: Starting The Compressor
STARTING THE COMPRESSOR PUMP PARTS Initial Start-up 10ND 15ND Fully open the receiver drain cock, (located between the wheels). Description Part No. Part No. Start the engine, according to the instructions contained in the engine service manual, and allow to run for 10 minutes. Screw 014013054 014013054... -
Page 9: Shutting Down The Compressor
When starting subsequently, start the machine as follows: PUMP PARTS At the beginning of the day, open the drain cock and allow any condensate to drain completely, then close the cock. To ease starting, ensure there is no pressure in the pump outlet manifold by opening the Bleed Valve (See Fig.2). -
Page 10: Maintenance
2100085 2100084 schedule. Engine complete 800047 (GX120QH) 800055 (GX200QH) Repairs should only be carried out by a qualified engineer. If problems Manifold 3-way CBM45469000 CBM45469000 occur, contact your Clarke dealer. Air Receiver 1999705 1999705 - 10 - - 11 -...
