Ikegami HL-59WNA Brochure & Specs

Ikegami

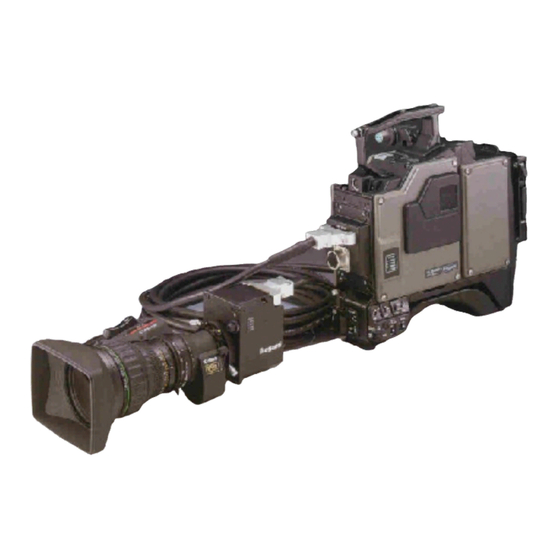

Extended Optics Digital Portable CCD Camera
HL-59WNA
The HL-59WNA is a multifunctional high-performance
digital processing camera that enables you to shoot at
various camera angles by separating the optical block
from the camera body.
The distance between the camera body and optical

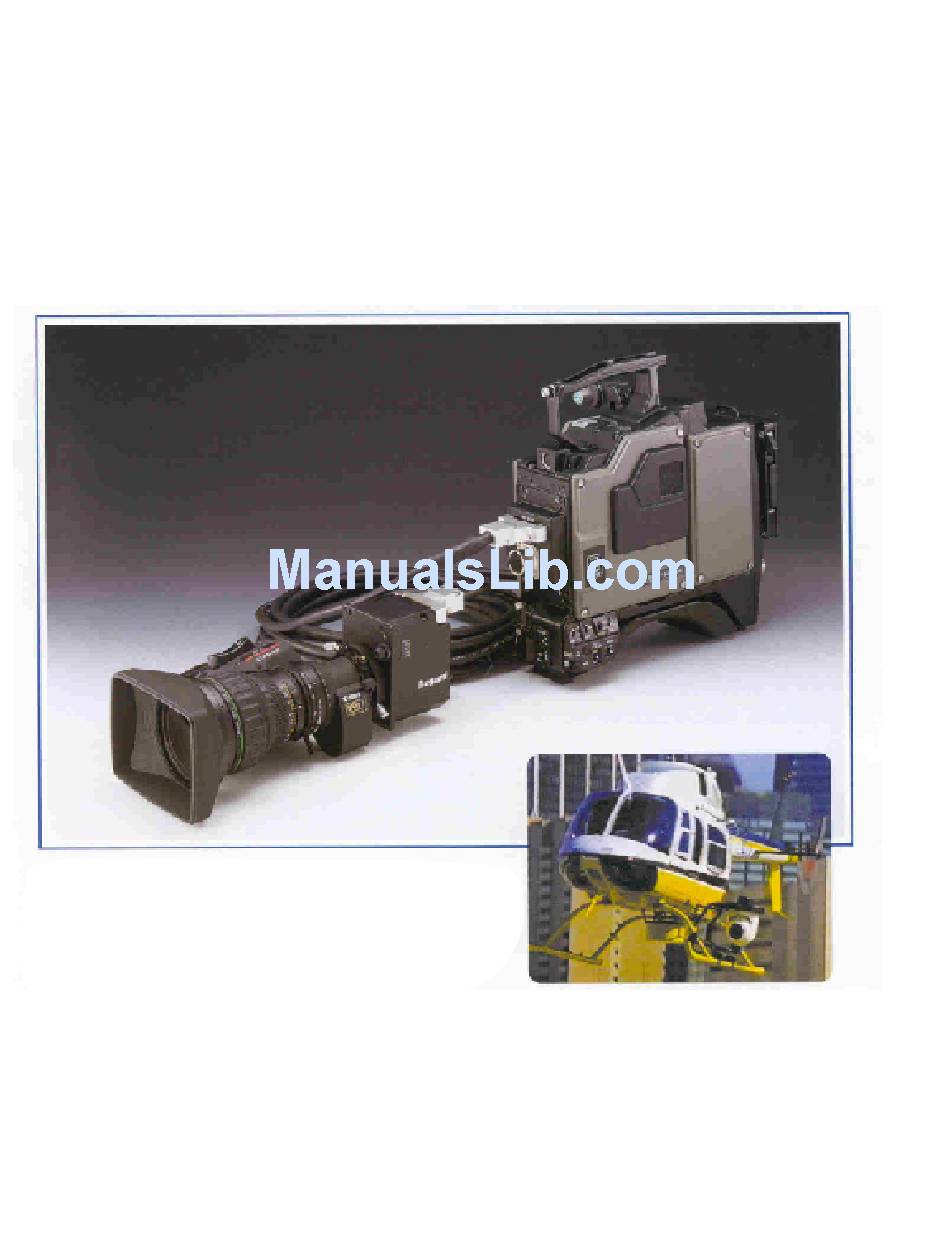

Photo courtesy, FLIR Systems
block can be extended to 20m.
The camera section is designed based on the HL-59W, a broadcast-qualit y 10-bit digital
processing camera, so it delivers high image qualit y with rock-solid stabilit y.
Switchable operation between 16:9 and 4:3 is also supported.
The optical block is compact and lightweight.
It achieves a minimum illumination of 0.251x/f1.4 (with +42dB gain-up).
It is ideally suited for helicopter gyro-stabilized systems and point-of-view applications on
mobile vans.
