Ikegami ICD-508 Instruction Manual

INSTRUCTION MANUAL

COLOR CAMERA
MODEL
ICD-508
OUTDOOR USE WARNING
WARNING – TO PREVENT FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSED THIS APPLIANCE TO
RAIN OR MOISTURE.
Ikegami Tsushinki Co., Ltd.
Ikegami Electronics (U.S.A.), Inc.
37 Brook Avenue, Maywood, New Jersey 07607, U.S.A.
Phone: (201) 368-9171, FAX 201-569-1626
Ikegami Electronics (Europe) GmbH
Ikegami Strasse 1, 41460 Neuss 1, F.R. Germany
TEL. 02131-123-0/FAX 02131-102820
Ikegami Electronics (Europe) GmbH U.K. Branch
Unit E1 Cologne Court Brooklands Close, Windmill Road Sunbury-
on-Thames Middlesex TW16 7EB, UK
TEL. 01932-769700/FAX 01-92-769710
Thank you very much for your wise choice of the Ikegami Color CCD Camera. Please
carefully read this Instruction Manual to keep your camera at full capacity.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
CAUTION; ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED
BY THE PART RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS
AUTHORITY TO OPERATE THE EQUIPMENT.
Muchísimas gracias por haber elegido la cámara CCD en color de Ikegami. Lea
cuidadosamente este manual de instrucciones para mantener su cámara en las mejores
condiciones de funcionamiento.
El signo de exclamación en el interior de un triángulo equilátero tiene la
finalidad de avisar al usuario de la presencia de instrucciones de
utilización y mantenimiento (servicio) importantes en el manual que
acompaña al aparato.
NOTA: Este equipo ha sido probado y ha demostrado cumplir con los límites
establecidos para los dispositivos digitales de la clase A, en conformidad con el
Apartado 15 de los Reglamentos de la FCC. Estos límites han sido diseñados para
proporcionar una protección razonable contra la interferencia perjudicial si el equipo
se utiliza en un entorno comercial. Este equipo genera, utiliza y puede radiar energía
radioeléctrica, y, si no se instala y usa de acuerdo con las instrucciones, puede
causar interferencias perjudiciales en las comunicaciones por radio, en conformidad
con el Apartado 15 de los Reglamentos de la FCC. Estos límites han sido
establecidos para proporcionar una protección razonable, el usuario tendrá que
corregir la interferencia corriendo él a cargo de los gastos pertinentes.
PRECAUCIÓN; CUALQUIER CAMBIO O MODIFICACIÓN QUE NO HAYA SIDO
APROBADO EXPRESAMENTE POR LA PARTE RESPONSABLE PODRÍA ANULAR
LA AUTORIZACIÓN QUE TIENE EL USUARIO PARA UTILIZAR EL EQUIPO.
English

Handling precautions

E-1.
(1) Do not open the case of camera and never touch inside, where precision
parts are assembled. A trouble or accident may result.
(2) Do not install the unit where it is exposed to water splash, high humidity
and heavy dust. Internal parts may be damaged. Preferably use the
camera at ambient temperatures of -10 to +50°C.
(3) Be very careful not to drop or shock the camera.
(4) Never touch the CCD surface.

General

E-2.

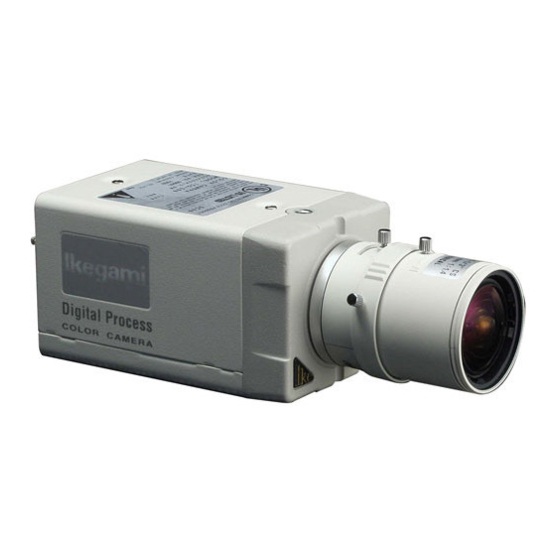

The ICD-508 are single CCTV cameras that employ a 1/3-inch CCD (Charge
Coupled Device) respectively, with 380,000 picture elements. The units
feature high resolution, high sensitivity and high picture quality, and are
equipped with many functions: back-light compensation, automatic electronic
shutter, automatic iris control and others. The cameras are best suited for
general-purpose monitoring.

Features

E-3.
(1) Digital processing
(2) High-quality picture and high resolution
(3) High-sensitivity design
(4) Equipped with back-light compensating function
(5) 2-way automatic iris controlling function
(6) Automatic white balance
(7) AES (Automatic Electronic Shutter)
(8) Flange focal distance adjusting mechanism

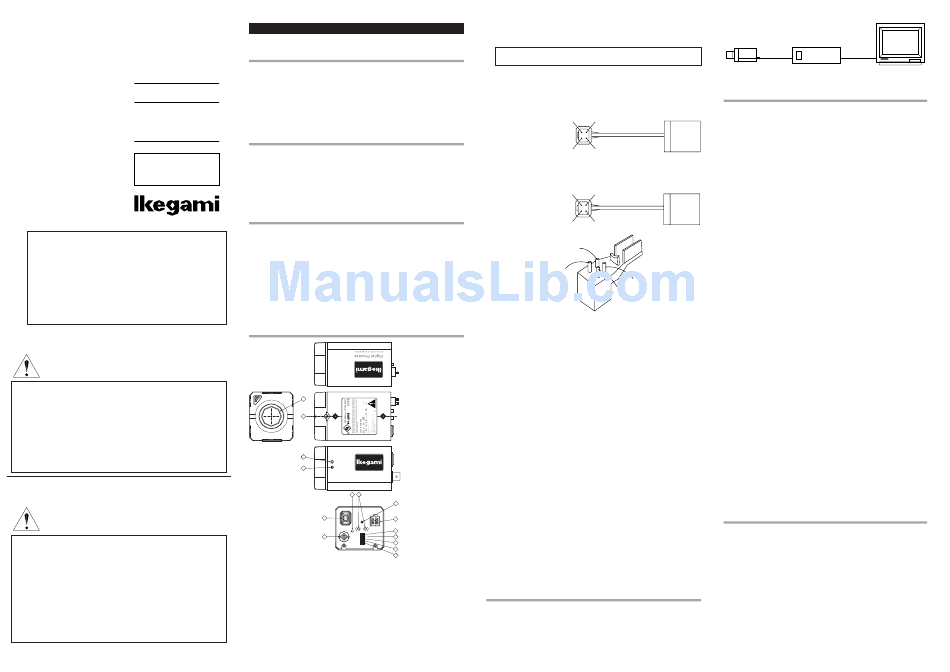

Names of parts and
E-4.
their functions
K32569-1
1
4
2
FOCUS ADJ
3 LOCK
Digital Process
COLOR CAMERA
13 7
LENS
AC24V60Hz3.6W
5
IRIS LEVEL
LL PHASE
MAX40mA - +
POWER
VIDEO OUT DC12V3.6W
CLASS 2
AES OFF O N
14
BLC OFF O N
AGC NOR O N
LENS D C VIDEO
SYNC INT L L
① Lens mount (CS mount)
This is used to mount the lens on the camera. Many types of CS mount
lens can be attached.
② Flange focal distance adjuster
The flange focal distance may need readjustment depending on the type
of lens. Readjust the distance also when the focus ring on the lens fails to
put the image in focus.
③ Flange focal distance lock screw
After finely adjusting the camera's flange focal distance, fix the distance
with this screw.
④ Holder mounting screw holes
These holes are used to fix the camera on the camera holder. They are
also applicable to general tripods.
Note: To attach the camera on a tripod or a camera holder, be sure to
use mounting screws (1/4" -20UNC) that are shorter than 5.5 mm.
⑤ Auto iris lens connector
The connector is specifically used to connect the auto iris lens.
Use the optional auto iris lens control connector plug (E4-191J-150 or equivalent).
• For the video type auto iris lens
Set the lens selector switch to VIDEO position.
— Connector cable leads —
2
1. Red (power)
2. Not used
3. White (video)
4. Black (shielded)
1
* Dress the tip of the green lead to prevent a short-circuit.
• For the DC type auto iris lens
Set the lens selector switch to DC position.
— Connector cable leads —
2
1. Damping coil (-)
2. Damping coil (+)
3. Driving coil (+)
4. Driving coil (-)
1
* Connect the leads as shown above.
Refer also to the instructions of the lens.
3
1
Numbers of connector pins
⑥ Iris level control (IRIS LEVEL)
This control adjusts the sensitivity with a DC iris lens in use.
⑦ Line lock phase control (LL PHASE)
This control adjusts the phases of the video output and the power line.
■ Precautions in setting the LL PHASE
(LEFT VIEW)
1. Press the LL PHASE's "<" and ">" buttons at once, and the phase will
be back to its factory setting.
2. When the "<" and ">" buttons have been pressed at once, push the
">" button once more to put the data in memory.
⑧ AES selector switch (AES)
The switch turns on and off the AES function. When an auto iris lens is
(TOP VIEW)
used, be sure to keep this switch at OFF position.
⑨ Backlight compensation selector switch (BLC)
The switch turns on and off the backlight compensation function.
⑩ AGC selector switch (AGC)
The switch turns on and off the AGC function.
⑪ Lens selector switch (LENS)
(RIGHT VIEW)
The switch has two positions, for a video iris lens and a DC iris lens.
⑫ Sync system selector switch (SYNC)
Used to choose between the internal sync and the line lock. Set the
selector to INT for use in internal sync, and LL for use in line lock. The line
lock cannot be used in regions with the power frequency of 50Hz.
6
⑬ Power indicator (POWER)
(BACK VIEW)
The LED indicator stays on in green while the camera power is on.
15
⑭ Video output connector (VIDEO OUT)
The output connector is connected to the video input connector of a monitor,
8
9
switcher or the like. (Terminate the terminal with a 75-ohm impedance.)
10
⑮ AC24V/DC12V power input terminal
11
Keep the input power at AC24V (21.6-26.4 V) or DC12V (10.5-15.0 V).
12
※ This installation should be made by a qualified service person and
should conform to all local codes.

Connection

E-5.
Video output connector (VIDEO OUT)
• This is the output connector of video signal.
• The connector is used to connect the video camera to the video input connector of a
monitor, switcher or the like. (To be connected with 75-ohm impedance)
• Use a coaxial cable for connection.
(Typical connections)
ICD-508

Specifications

E-6.
(1) Imaging device:
(2) No. of effective
Auto iris lens
4
picture elements:
3 (3) Sensing area:
(4) Horizontal resolution:
(5) Minimum illuminance:
(6) S/N ratio:
(7) TV system:
Auto iris lens (8) Sync system:
4
(9) Vertical sync frequency:
(10) Horizontal sync frequency: Int: 15.734KHz
3
(11) Video output:
(12) White balance:
(13) Backlight compensation:
(BLC)
4
(14) AES:
(15) AGC:
2 (16) Auto iris function:
(17) Flange focal distance
adjustment function:
(18) Lens mount:
(19) Camera mount:
(20) Ambient operating
temperature:
(21) Power supply:
(22) Power consumption:
(23) Input/output connectors:
(24) Outer dimensions:
(25) Weight:
(26) Accessories:
(27) Option:
Warranty and after-sale
E-7.
service
A warranty accompanies this product. Read and fill out the warranty card
that you have received at your dealer. Keep this card in a safe place.
· Please consult Ikegami Electronics (U.S.A.) Inc. or your dealer for full
warranty information. Your dealer will repair or replace free of charge
within the warranty period according to the warranty coverage.
· For repairs after the expiration of the warranty period, consult your
dealer or sales representative. It will first be judged whether the
trouble is repairable or not. Charged servicing will then be made upon
request of the user.
· Before you ask for servicing, take trouble of reading the Instruction Manual. If
the unit still fails, take note of the model number, date of purchase, problem,
etc. in detail, and inform your dealer or sales representative.
· If you have questions about the after-sale service, contact your dealer
or sales representative.
※ We suggest you ask for preventive inspection earlier.
VCR MONITOR
1/3 inch, interline transfer type CCD
Approx. 380,000 pixels,
768(H) and 494(V) lines
Color filter: Color difference line
sequential system
4.8(H) x 3.6(V) mm
480 lines
1 lux/F1.4 (at subject reflectance of 89%)
48 dB/rms or better (at rated illuminance)
2: 1 interlace, as per NTSC system
Internal sync: Crystal lock or Line lock
(phase adjustable)
Int: 59.94Hz
Line lock: 60Hz
Line lock: 15.750KHz
(Varies with power frequency for line-
lock SC notsynchronized)
VBS 1.0Vp-p/75 ohms
TTL method, ATW
On/off, switchable
On/off, switchable, AES range 1 : 1600
On/off, switchable
Video iris/DC iris, switchable
(DC iris level adjustable)
Provided
CS mount
1/4"-20UNC (top and bottom mounting)
-10 to +50°C
AC24V ±10%, 60Hz / DC12V (10.5-15.0 V)
Approx. 3.6W
(1) Video output; BNC
(2) AC24V/DC12V input;
2-pin terminal block
(3) Lens; 4-pin
(applicable plug, E4-191J-150 or
equivalent option)
62(W) x 55(H) x 98(D) mm
(projections and accessories not included)
Approx. 370g (13.1 oz)
Operation manual, 1 copy
Lens connector plug E4-191J 150 or
equivalent 1pc.
