Ikegami ICD-808 Specifications

High Performance

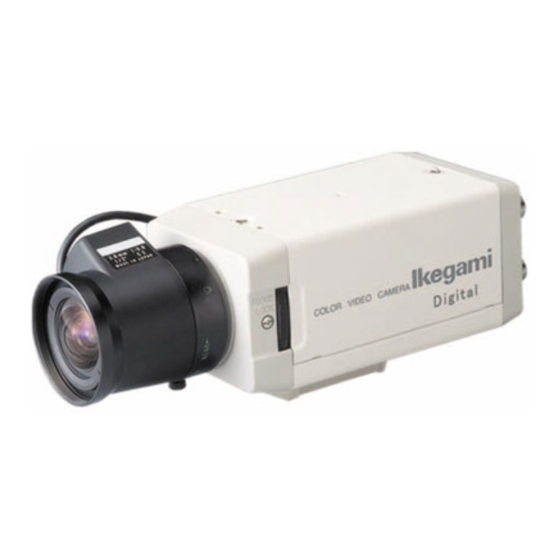

1/3" Digital Processing CCD Color Camera
ICD - 808
ICD - 808
1/2" Digital Processing CCD Color Camera
ICD - 828
ICD - 828
Conventional Models
Spot BLC OFF

Auto White Balance

In addition to Auto White Balance (ATW1) of
auto-tracking type, the camera also features
ATW2 that is compatible with sodium-vapor
lamps used for lighting on highways and other
purposes. Thus, it can capture optimal video
under various conditions, both indoors and
outdoors.
808P
/
808P
/
[ NTSC ]
828P
/ 828P
/
[ NTSC ]
ICD-808/808P . ICD-828/828P
Spot BLC ON
AES
( Automatic Electronic Shutter )
The camera boasts AES capability with a
sensitivity ratio of about 1:1600 (NTSC) or
1:2000 (PAL). Even with a fixed-aperture lens,
the sensitivity can be adjusted appropriately
according to changes in illumination of the
surveillance area.
This feature cannot be used in geographical regions where
the line frequency and the camera's vertical frequency are
different from each other.
[ PAL ]
[ PAL ]
Low Smear and High Sensitivity
The ICD-808/808P(1/3" CCD) and ICD-828/828P(1/2"
CCD) employ a high-sensitivity on-chip lens CCD. The
smear level is -110dB for the IDC-808/808P, and -126dB
for the ICD-828/828P. They also achieve a high sensitivity
with a minimum subject illumination of 0.5 lx/F1.4 for the
ICD-808/808P, and 0.15 lx/F1.4 for the ICD-828/828P.
These cameras are ideally suited for outdoor surveillance,
such as traffic monitoring.
Spot Backlight Compensation
The camera is capable of specifying only a backlight area
displayed on the screen and reproducing the backlight
scene as an optimal image. Even when, for example, a
car's number plate or a person is captured in a backlight
situation, its image can be reproduced crisply.
High Picture Quality
It delivers 480 lines of horizontal resolution.
Incorporating state-of-the-art digital process
circuitry, the camera can reproduce a rock-
solid, sharp image.
These photographs for an image example may differ from actual pictures on Monitor.
