MFGD 5621 HD

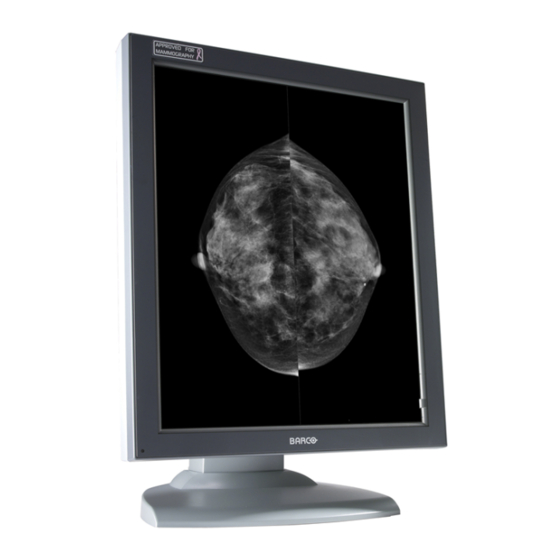

5MP Medical Flat Grayscale Display for digital mammography
Barco's  MFGD  5621  HD  is  a  first­class  5  MegaPixel  stand­alone  display
specifically  designed  for  use  in  very  demanding  digital  mammography
applications.  Innovative  new  technologies,  such  as  I­Guard®,  Defect  Pixel
Compensation  (DPC)  and  Per  Pixel  Uniformity  (PPU),  make  it  the  perfect
choice for today's mammography imaging.
The MFGD 5621 HD is part of Barco's Coronis® 5MP Mammo display system
for digital mammography.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MFGD 5621 HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco MFGD 5621 HD

Summary of Contents for Barco MFGD 5621 HD

  • Page 1 MFGD 5621 HD 5MP Medical Flat Grayscale Display for digital mammography Barco's  MFGD  5621  HD  is  a  first­class  5  MegaPixel  stand­alone  display specifically  designed  for  use  in  very  demanding  digital  mammography applications.  Innovative  new  technologies,  such  as  I­Guard®,  Defect  Pixel Compensation  (DPC)  and  Per  Pixel  Uniformity  (PPU),  make  it  the  perfect choice for today's mammography imaging.
  • Page 2 Supported resolution 2560 x 2048 (Landscape) 2048 x 2560 (Portrait, features Portrait Accelerator) VGA boot  (1 to 1 pixel mapping) Input power 90 to 264 VAC 45 to 65Hz Inputs 72W max Power save Supports DVI­DMPM (when DVI input selected) Operating temperature range 0° to +40°C (32° to 104°F) Within specifications +15° to +35°C (59° to 95°F) Safety KETI UL60601­1 (UL2601­1) Emission EN 55022 LIMT A EN 55022 LIMIT B FCC class a FCC class B EN 61000­3­2 Medical FDA 510 (k) pending Dimensions P: 408 x 592 x 217 mm (16.1 x 23.3 x 8.5”) Weight 13.5 kg (29.7 lbs) Ergonomics Tilt & swivel base with P/L rotation, 100 mm VESA mounting standard AR coated front cover Display controls Display on/off backlight adjustments Generated on: 20 Feb 2014 Technical specifications are subject to change without prior notice. Please check www.barco.com for the latest information.
