Instructions – Parts List
74:1 RATIO PREMIERt CARBON STEEL
Cart-Mounted
Airless Package
WITH DURA-FLOT 1100 DISPLACEMENT PUMP
50.0 MPa, 500 bar (7252 psi) Maximum Working Pressure
0.67 MPa, 6.7 bar (97 psi) Maximum Air Inlet Pressure
Part No. 236489, Series B
With High Pressure Fluid Filter
Part No. 237158, Series B
With High Pressure Fluid Filter,
hose and gun
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for model numbers and maximum
working pressures.
308415P
05899D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco Dura-Flo 1100
Summary of Contents for Graco Dura-Flo 1100

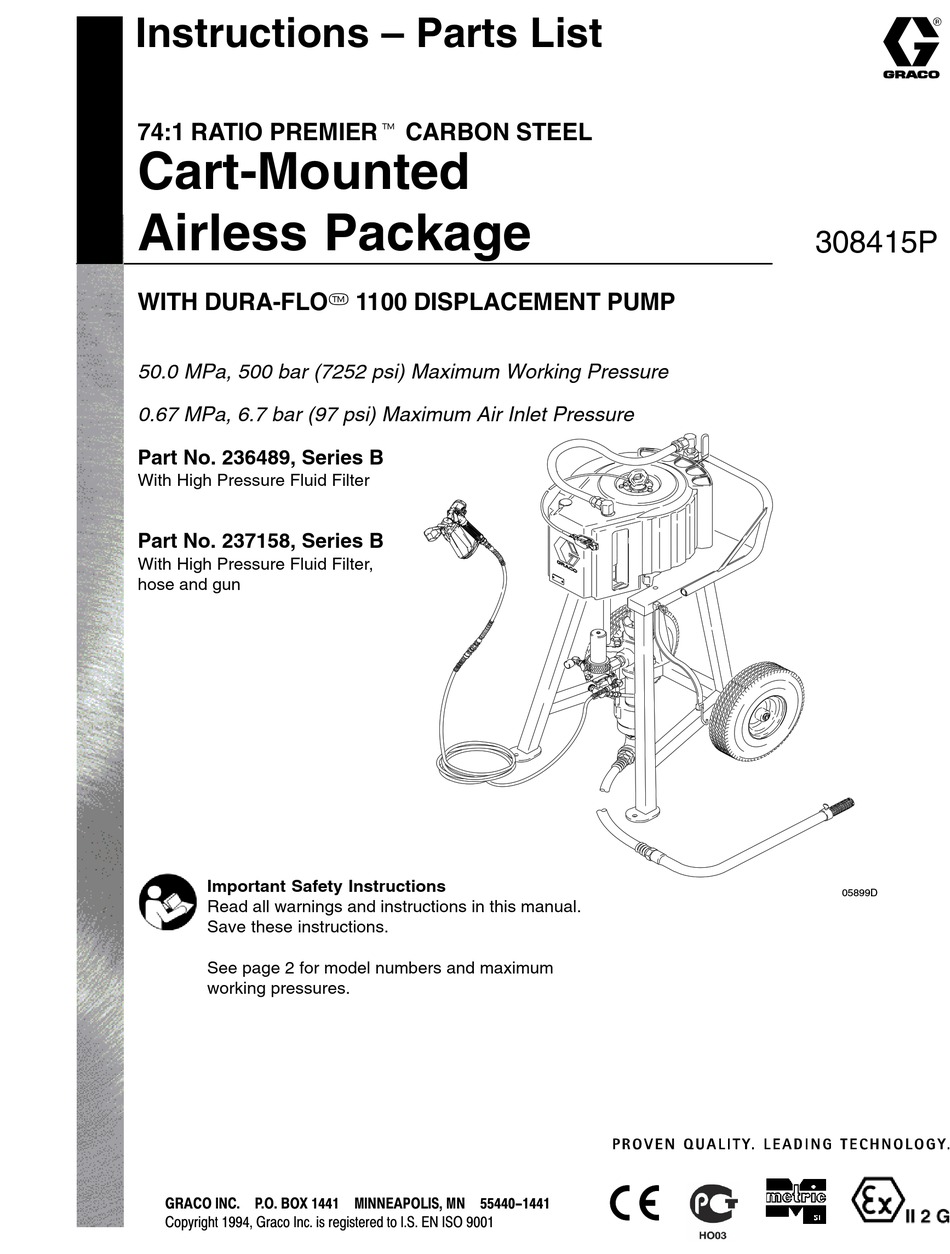

- Page 1 Instructions – Parts List 74:1 RATIO PREMIERt CARBON STEEL Cart-Mounted Airless Package WITH DURA-FLOT 1100 DISPLACEMENT PUMP 50.0 MPa, 500 bar (7252 psi) Maximum Working Pressure 0.67 MPa, 6.7 bar (97 psi) Maximum Air Inlet Pressure Part No. 236489, Series B With High Pressure Fluid Filter Part No.
- Page 2 Table of Contents Warnings ........Setup .
- Page 3 SKIN INJECTION HAZARD Spray from the gun, hose leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin might look like just a cut, but it is a serious injury.
- Page 4 FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed. Refer to Grounding on page 5. D If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately.
- Page 5 General Information NOTE: Reference numbers and letters in parentheses in the text refer to the callouts in the figures and the parts drawing. NOTE: Always use Genuine Graco Parts and Acces- sories, available from your Graco distributor. Refer to the Product Data Sheet for your pump, Form No. 305756.
- Page 6 Supplied Components Refer to Fig. 2. WARNING A red-handled bleed-type master air valve (30) and a fluid drain valve (D) are supplied. These accesso- ries help reduce the risk of serious injury, including fluid injection and splashing of fluid in the eyes or on the skin, and injury from moving parts if you are adjusting or repairing the pump.
- Page 7 SUPPLIED WITH ALL MODELS Pump Cart Pump Air Regulator Suction Hose Fluid Filter (includes drain valve) 22 Pump Intake Bushing 24 Suction Tube 30 Red-Handled Bleed-Type Master Air Valve (required, for pump) 32 Air Manifold 57 Ground Wire (required; see page 5 for installation instructions) 69 Fluid Shutoff Valves 70 Air Line Male Coupler...
-
Page 8: Operation
Pressure Relief Procedure WARNING SKIN INJECTION HAZARD The system pressure must be manually relieved to prevent the system from starting or spraying accidentally. Fluid under high pressure can be injected through the skin and cause serious injury. To reduce the risk of an injury from injection, splashing fluid, or moving parts, follow the Pressure Relief Procedure whenever you:... - Page 9 CAUTION To avoid tip-over, the cart must be on a flat and level surface. Failure to follow this caution could result in injury or equipment damage. Prime the Pump 1. See Fig. 3. Remove the tip guard and spray tip from the gun (102).
- Page 10 Shutdown and Care of the Pump WARNING To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the Pressure Relief Procedure on page 8. For overnight shutdown, stop the pump at the bottom of its stroke to prevent fluid from drying on the ex- posed displacement rod and damaging the throat packings.
- Page 11 Pump Air Regulator Suction Hose Fluid Filter 24 Suction Tube 30 Red-Handled Bleed-Type Master Air Valve (required, for pump) 69 Fluid Shutoff Valve 70 Air Line Male Coupler 71 Air Line Female Coupler 102 Airless Spray Gun 103 Electrically Conductive Fluid Supply Hose Fluid Drain Valve (required) Packing Nut/Wet-Cup Torque to 129–142 NSm...
- Page 12 Part No. 236489, Series B (includes items 1–78) Part No. 237158, Series B (includes items 1–106) Ref. Part No. Description 236932 PUMP, Premier, 74:1 ratio; See manual 308357 for parts 236943 CART, portable Includes replacement items 4a–4d 112860 . WHEEL 107146 .
- Page 13 Part No. 236489, Series B (includes items 1–78) Part No. 237158, Series B (includes items 1–106) 33 (Ref) 15 16 Parts 4c 4b 308415 05900E...
-
Page 14: Technical Data
Category Maximum fluid working pressure Maximum air input pressure Ratio Pump performance data Air consumption data Air inlet size Fluid outlet size (at fluid filter) Fluid inlet size Maximum operating temperature Wetted parts Vitonr is a registered trademark of the DuPont Co. 0.28 MPa, 2.8 bar Air Motor (40 psi) - Page 15 Pump Model 236489 1270 mm (50 in.) 237158 1270 mm (50 in.) Dimensions 864 mm (34 in.) 864 mm (34 in.) 737 mm (29 in.) 864 mm (34 in.) 864 mm (34 in.) 737 mm (29 in.) 05902C Width Across Weight Wheels 138 kg (305 lb)
-
Page 16: Graco Standard Warranty
Graco Standard Warranty Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
