Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete
User's Manual can be found in the
Bonus Pack CD Disc. Thanks for
the help of saving our earth.
Motherboard x1
40-wire IDE Cable x1
Floppy Disk Drive Cable x1
80-wire IDE Cable x1
Bonus Pack CD Disk x1
NORTON AntiVirus CD x1
AX3P/AX3SP Pro EIG x1
AX3SP/AX3SP Pro Online Manual x1 (AX3SP Pro Only)
PART NO: 49.87A08.001 DOC. NO: AX3SP2P-EG-E0101A

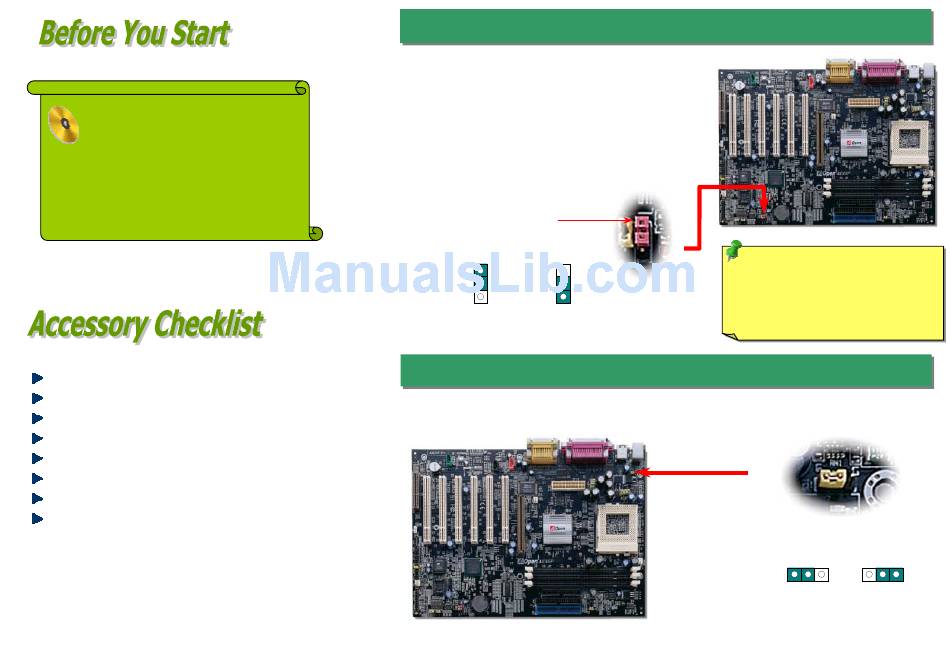

You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pins 1 & pin2.
Online
5. Connect ATX power cable back to connector PWR2.
This motherboard provides keyboard/mouse wake-up function. You can use the JP28 to enable or disable
this function.

1. JP14 Clear CMOS

Pin 1
1 1
Clear CMOS
Normal Operation
(default)
2. Enable/Disable Keyboard/Mouse Wake-Up
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
2. Forget password...
3. Troubleshooting...
JP28
KB/Mouse Wake-up
Enable Disable
(Default)
