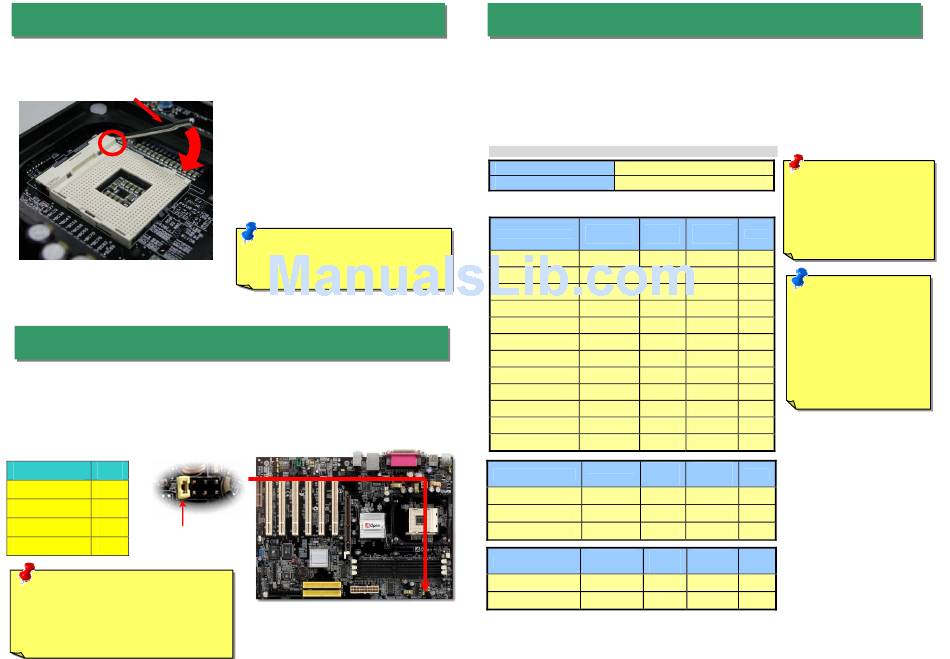

3. Installing Processor

This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package
developed by Intel. Other forms of CPU package are impossible to be fitted in.
CPU socket lever

4. JP29 DDR Voltage Jumper

This motherboard supports all DDR266/333/400 DDR RAM in the market. And in order to
get higher and more stable performance of memory, we provide JP29 to adjust the voltage
of RAM from 2.55V to 2.70V. However, if you wish to use DDR400 RAM which requires
higher voltage, you may have to adjust the jumper to set a suitable voltage supply from
2.65V to 2.70. Moreover, you can not run all three RAM in slots at the same time when run
in DDR 400.
DDR Voltage JP29
2.55 V 1-2
2.60 V 3-4
2.65 V 5-6
Pin 1
2.70 V 7-8
Warning: Due to the limitation
SiS648FX/SiS963 Chipset itself,
motherboard does not support DDR 266 when
run in FSB 800.Otherwise, serious damage
will happen to your motherboard and RAM.
1.
Pull up the CPU socket lever and up to
90-degree angle.
2.
Locate Pin 1 in the socket and look for
a (golden) cut edge on the CPU upper
interface. Match Pin 1 and cut edge.
Then insert the CPU into the socket.
3.
Press down the CPU socket lever and
finish CPU installation.
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well,
you may damage the CPU.
of
this
5. Setting CPU Voltage & Frequency
Setting CPU Core Voltage
This motherboard supports CPU VID function. The CPU core voltage will be automatically
detected and you don't need to set the voltage by yourself.
Setting CPU Frequency
This motherboard includes CPU jumper-less design, you can set CPU frequency through
the BIOS setup, and no jumpers or switches are needed. The default setting is "table
select mode". You can adjust the FSB from "CPU Bus Frequency" for overclocking.
BIOS Setup > Frequency / Voltage Control > CPU Bus Frequency
CPU Ratio 8x,.......30x
CPU FSB (By BIOS table) 100~248MHz by 1MHz stepping
CPU Core FSB
Northwood CPU
Frequency Clock
Pentium 4 2.0G 2000MHz 100MHz
Pentium 4 2.2G 2200MHz 100MHz
Pentium 4 2.26G 2260MHz 133MHz
Pentium 4 2.4G 2400MHz 133MHz
Pentium 4 2.4G 2400MHz 200MHz
Pentium 4 2.53G 2530MHz 133MHz
Pentium 4 2.66G 2660MHz 133MHz
Pentium 4 2.80G 2800MHz 133MHz
Pentium 4 2.80G 2800MHz 200MHz
Pentium 4 3.00G 3000MHz 200MHz
Pentium 4 3.06G 3060MHz 133MHz
Pentium 4 3.20G 3200MHz 200MHz
CPU Core
FSB
Willamette CPU
Frequenc
Clock
Pentium 4 1.8G 1800MHz 100MHz
Pentium 4 1.9G 1900MHz 100MHz
Pentium 4 2.0G 2000MHz 100MHz
CPU Core FSB
Celeron CPU
Frequency Clock
Celeron 2.2G 2200MHz 100MHz
Celeron 2.4G 2400MHz 100MHz
Warning:
SiS648FX/SiS963
supports maximum 800MHz
system bus and 66MHz
AGP clock; higher clock
System
setting may cause serious
Ratio
Bus
system damage.
400MHz 20x
400MHz 22x
Note: Since some of the
533MHz 17x
latest CPU would detect
533MHz 18x
the clock
automatically, you may not
800MHz 12x
be able to adjust the clock
533MHz 19x
ratio of some CPU in
533MHz 20x
BIOS manually. BIOS will
show the
533MHz 21x
settings for customers to
800MHz 14x
choose.
800MHz 15x
533MHz 23x
800MHz 16x
System
Ratio
Bus
400MHz 18x
400MHz 19x
400MHz 20x
System
Ratio
Bus
400MHz 22x
400MHz 24x
Chipset
ratio
adjustable
