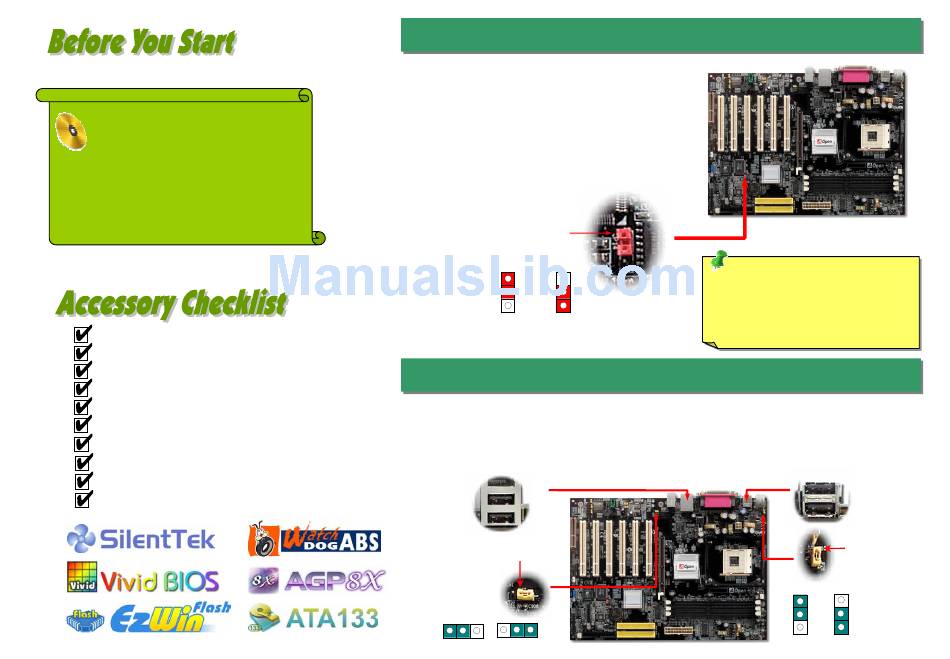

AOpen AX45F-1394 Easy Installation Manual page 2

Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete Online
User's Manual can be found in the
Bonus Pack CD. Thanks for the
help of saving our earth.
User's Manual x1
Easy Installation Guide x1
40-wire IDE Cable x1
80-wire IDE Cable x1
Floppy Disk Drive Cable x1
Registration Card x1
Bonus Pack CD x1
Back Panel I/O Shield x1
IEEE1394 Cable x1
Norton Anti-Virus CD x1
PART NO: 49.8A303.EE1 DOC. NO: AX45F1394-EG-E0306A
1. JP14 Clear CMOS
You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pin 1 & pin 2.
5. Connect ATX power cable back to connector PWR2.
Pin 1
1 1
Normal
Clear CMOS
(default)
2. JP27/28 Keyboard/Mouse Wakeup Jumper
This motherboard provides USB and PS2 keyboard / mouse wake-up function. You can use JP27 / JP28 to enable or
disable the resuming of your system from suspend mode with any USB keyboard or mouse connected. JP28 controls 1
nd
USB channel, and JP27 controls 2 USB channel. The factory default setting is set to "Disable" (1-2), and you may enable
this function by setting the jumper to 2-3. Please note that you have to enable USB, PS2 keyboard and PS2 mouse
settings in the "Power Management Setup" section in BIOS before you use this function.
nd
2 USB Channel
Pin 1
JP27 KB/Mouse
Wakeup
1
1
Disable
Enable
(Default)
Tip: When should I Clear CMOS?
1. Boot fails because of overclocking...
2. Forget password...
3. Troubleshooting...
st
1 USB Channel
Pin 1
JP28 KB/Mouse
Wakeup
1 1
Disable
Enable
(Default)
st
