Page 4
SPEAKER SPECIFICATIONS
System Description:
High Frequency Drivers:
Low Frequency Driver:
Impedance:
Frequency Adjustments:
Efficiency:
Frequency Response:
Power Recommendations:
Diameter x Depth:
Cut-Out Diameter:
In our attempt to constantly improve our products, features and specifications are subject to change without notice.
SpeakerCraft offers a variety of accessories to make your installation of these speakers and other SpeakerCraft products easy, economical,
and professional. Contact your authorized SpeakerCraft Dealer for more information.
Should you have any questions regarding this, or any other SpeakerCraft product, please call our toll-free Service Hotline at
1-800-448-0976. We are available to assist you every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.
940 Columbia Ave., Riverside CA 92507-4492
(800) 448-0976 Fax (951) 787-8747
www.speakercraft.com
AIM8 DT One
Two tweeters mounted onto a dual
voice coil woofer
Dual 1" Resin coated Silk Dome
Tweeters
8" Polypropylene Cone Woofer
with Dual Voice Coil and Rubber
Surround
8Ω
None
91dB 1w/1m
48Hz - 20kHz
80 Watts (undistorted)
11
⁄
" x 5
⁄
"
7
3
1 6
4
(290.499mm x 146.050mm)
9
⁄
"
3
4
(247.650mm)
AIM8 DT Owner' s Manual

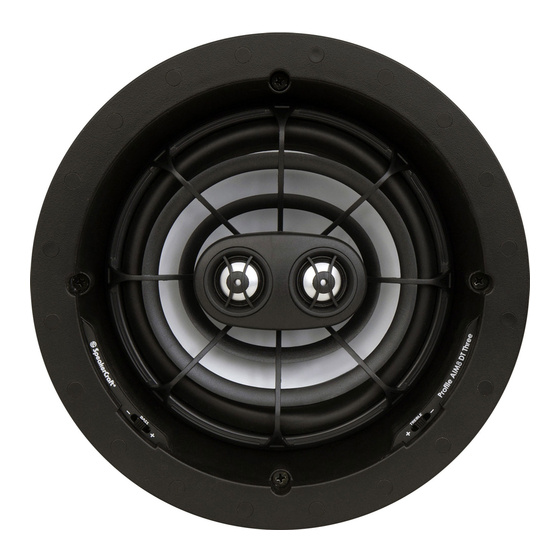

AIM8 DT Three
Two tweeters mounted onto a
dual voice coil woofer
Dual 1" Aluminum Dome
Tweeters
8" Aluminum Cone Woofer with
Dual Voice Coil and Rubber
Surround
8Ω
Front mounted treble/bass
switch allows the treble/bass to
be set at one of 3 posistions:
-3db, flat, +3db
91dB 1w/1m
45Hz - 20kHz
100 Watts (undistorted)
11
⁄
" x 5
⁄
"
7
3
1 6
4
(290.499mm x 146.050mm)
9
⁄
"
3
4
(247.650mm)
LIT75810
