Page 4
SPEAKER SPECIFICATIONS
System Description:
High Frequency Drivers:
Low Frequency Driver:
Impedance:
Frequency Adjustments:
Efficiency:
Frequency Response:
Power Recommendations:
Diameter x Depth:
Cut-Out Diameter:
In our attempt to constantly improve our products, features and specifications are subject to change without notice.
SpeakerCraft offers a variety of accessories to make your installation of these speakers and other SpeakerCraft products easy, economical,
and professional. Contact your authorized SpeakerCraft Dealer for more information.
Should you have any questions regarding this, or any other SpeakerCraft product, please call our toll-free Service Hotline at
1-800-448-0976. We are available to assist you every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.
940 Columbia Ave., Riverside CA 92507-4492
(800) 448-0976 Fax (951) 787-8747
www.speakercraft.com
AIM7 DT One
Two tweeters mounted onto a
dual voice coil woofer
Dual 1" Resin coated Silk Dome
Tweeters
7" Polypropylene Cone Woofer
with Dual Voice Coil and
Rubber Surround
8Ω
None
91dB 1w/1m
55Hz - 20kHz
5-60 Watts (undistorted)
9
⁄
" x 4
⁄
"
13
1
1 6
4
8
⁄
"
1
4
AIM7 DT Owner' s Manual

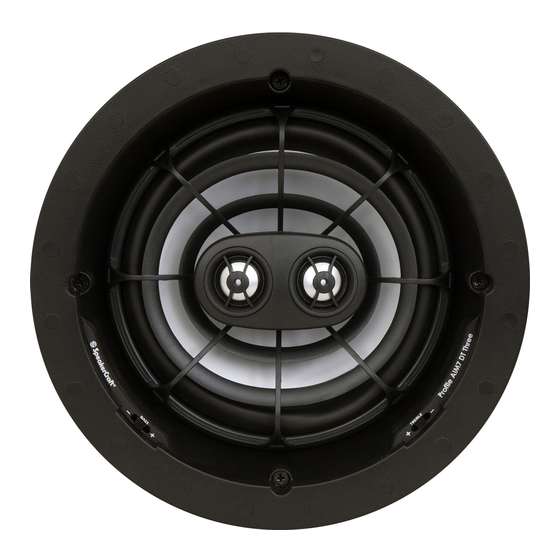

AIM7 DT Three
Two tweeters mounted onto a
dual voice coil woofer
Dual 1" Aluminum Dome
Tweeters
7" Aluminum Cone Woofer
with Dual Voice Coil and
Rubber Surround
8Ω
Front mounted treble/bass
switch allows the treble/bass
to be set at one of 3 posis-
tions: -3db, flat, +3db
91dB 1w/1m
55Hz - 20kHz
5-60 Watts (undistorted)
9
⁄
" x 4
⁄
"
13
3
1 6
4
8
⁄
"
1
4
LIT75700
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SpeakerCraft AIM7 DT Three
Summary of Contents for SpeakerCraft AIM7 DT Three
-
Page 1: Speaker Specifications
In our attempt to constantly improve our products, features and specifications are subject to change without notice. SpeakerCraft offers a variety of accessories to make your installation of these speakers and other SpeakerCraft products easy, economical, and professional. Contact your authorized SpeakerCraft Dealer for more information. -
Page 2: Speaker Placement
MOUNTING SURFACE PREPARATION New Construction - Unfinished Ceilings A New Construction Bracket, SpeakerCraft part number BKT90611 (available from your dealer), may be installed prior to drywall application across joists (up to 24" on-center) where a speaker will be located. Insulation material should be in place prior to installing drywall. After the hole is cut and the drywall is installed, the speaker can then be easily installed following the instructions for mounting under “Finished... -
Page 3: Speaker Installation
(See Diagram 5). ADJUSTING THE FREQUENCY RESPONSE (AIM7 DT Three) The output of the woofer and tweeter on the AIM7 DT Three can be adjusted to suit any environment. In general, we recommend leaving all of the adjustments at the flat (0dB) setting. -
Page 4: Painting The Speaker
It is preferable to ship this product in the original shipping container to lessen the chance of transit damage. In any case, the risk or loss or damage in transit is to be borne by the purchaser. If, upon examination at the Factory or SpeakerCraft Authorized Dealer, it is determined that the unit was defective in materials or workmanship at any time during this warranty period, SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below.
