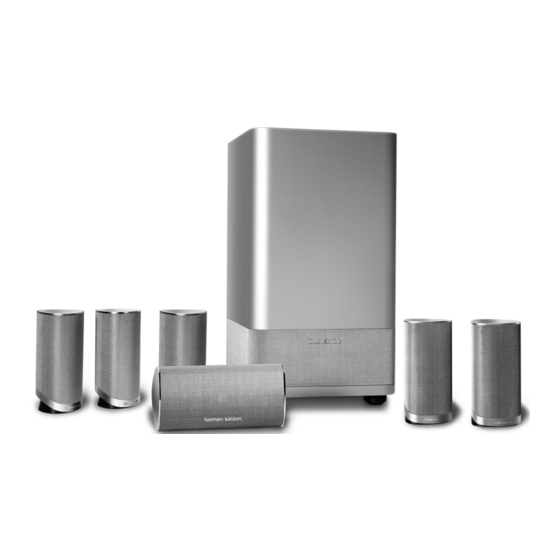

HKTS 8 Home Theater Speaker System
OWNER'S MANUAL
Power for the Digital Revolution
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HKTS 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman Kardon HKTS 8

Summary of Contents for Harman Kardon HKTS 8

  • Page 1 HKTS 8 Home Theater Speaker System OWNER’S MANUAL Power for the Digital Revolution ®...

  • Page 2: Table Of Contents

    Table of Contents 3 Introduction 4 SUB-TS8 Subwoofer Amplifier Panel Controls and Connections 6 Speaker Placement 7 Mounting Options Declaration of Conformity 8 Speaker Connections Speaker-Level Connection Guide Dolby Digital or DTS (or Other Digital Surround Mode) Connection Dolby Pro Logic (Non-Digital) – Line Level We, Harman Consumer Group International Dolby Pro Logic (Non-Digital) –...

  • Page 3: Introduction

    Thank you for purchasing the Harman Kardon woofer input for use with equipment that has a HKTS 8, with which you’re about to begin many dedicated subwoofer connection that carries a years of listening enjoyment. The HKTS 8 has low-frequency output.

  • Page 4: Rear Panel Connections

    Rear Panel Connections SUBWOOFER LEVEL SUB-TS8 For use with HKTS 8 System ¡ FILTER ™ CAUTION CAUTION £ RISK OF ELECTR IC SHOCK RISK OF ELECTR IC SHOCK RISK OF ELECTR IC SHOCK DO NOT OPE N DO NOT OPE N...
  • Page 5 Rear Panel Connections Line-Level Subwoofer (SUB) Input: Con- Master Power Switch: Place this switch in nect the subwoofer output of a receiver with the “•” position to power-on the SUB-TS sub- digital surround sound decoding, such as Dolby* woofer. The SUB-TS will then be either in the Digital or DTS ®...

  • Page 6: Speaker Placement

    Speaker Placement Color-Coding System Center Channel Speaker Surround Speakers The HKTS 8 uses the channel color-coding system established by the Consumer Electronics White Association to make setting up your home 0-0,55 m theater speaker system as easy as possible. Your...

  • Page 7: Mounting Options

    Mounting Options Wall-Mounting The wall-mounted speaker may be pivoted from Wires to Speaker side to side; however, the bracket is not Unscrew the bolt that attaches the black shelf designed to tilt up or down, and attempting to stand to the bottom of the speaker. Store the tilt it will damage the bracket and possibly the stand and bolt in a safe place in case they are wall, which would not be covered by your...

  • Page 8: Speaker Connections

    Gently tug on the ufacturers of speakers and electronics, including wire to make sure that it is fully inserted. Harman Kardon, use red to denote the (+) terminal and black for the (–) terminal. For the best performance, Harman Kardon...

  • Page 9: Dolby Digital Or Dts (Or Other Digital Surround Mode) Connection

    Speaker Connections Dolby Digital or DTS ® jack to the LFE output or subwoofer output Make sure that you have configured your sur- (or Other Digital Surround Mode) on your receiver or amplifier. Connect each round-sound processor for “Subwoofer On.” Connection speaker to the corresponding speaker terminals The front left, front right, center and rear speak-...

  • Page 10: Dolby Pro Logic (Non-Digital) - Line Level

    Speaker Connections Dolby Pro Logic (Non-Digital) – Use both the left and right inputs on the sub- If your receiver/processor has a built-in low- Line Level woofer if your receiver or processor has both left pass-crossover filter for the subwoofer output, and right line-level outputs.

  • Page 11: Dolby Pro Logic (Non-Digital) - Speaker Level

    Speaker Connections Dolby* Pro Logic* (Non-Digital) – Connect your receiver or amplifier’s front left Connect your receiver or amplifier’s center, left Speaker Level and right speaker terminals to the left and right and right surround-speaker terminals to the terminals on the subwoofer that are marked corresponding terminals on the back of your Use this installation method for Dolby Pro Logic “High Level In.”...

  • Page 12: Operation

    Operation Move the Master Power switch (marked Volume Additional Bass Adjustments “Power” ) to the “•” (On) position to use the Volume can be adjusted using the Subwoofer In addition to the volume adjustments described subwoofer. The SUB-TS subwoofer will automati- Level Control (above), as shown below.

  • Page 13: Troubleshooting

    Troubleshooting If there is no sound from • Check that receiver/amplifier is on and a source is playing. any of the speakers: • Check that the powered subwoofer is plugged in, its Power switch is switched on to the “ON•” position. •...

  • Page 14: Specifications

    Weight 0.6kg All features and specifications are subject to change without notice. Harman Kardon and Power for the Digital Revolution are registered trademarks of Harman International Industries, Incorporated. * Trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Theater Systems, Inc.
  • Page 16 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com Harman Consumer Group International 2, Route de Tours, 72500 Château-du-Loir, France © 2005 Harman Kardon, Incorporated Part no.: 406-000-05150...
