Instruction Manual

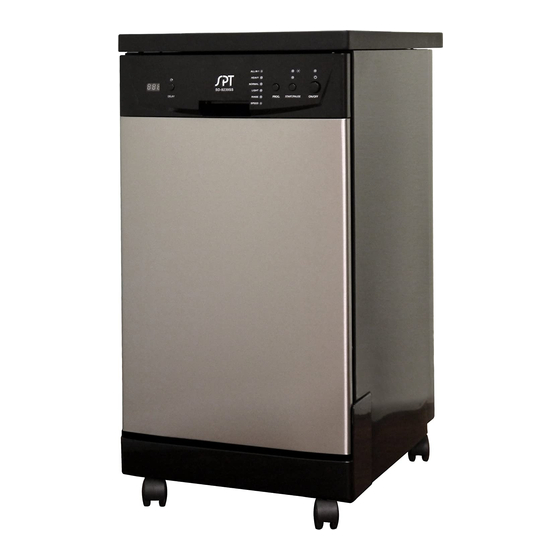

SD-9241SS-Stainless Steel
SD-9
241
W-White
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dishwasher Features . . . . . . . . . . . . . . . . . . . . . . 3
Wash Cycle Table . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
All-in-1 Program. . . . . . . . . . . . . . . . . . . . . . . . . . 6
Loading the Dishwasher Rack . . . . . . . . . . . . . . . 7
Silverware Basket .. . . . . . . . . . . . . . . . . . . . . . . . . 8
Turning On the Appliance . . . . . . . . . . . . . . . . . . . 8
Filtering System . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Caring for the Dishwasher . . . . . . . . . . . . . . . . . . 9
Electrical Connection.. . . . . . . . . . . . . . . . .. . . . .10
Before calling for service . . . . . . . . . .
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
. . . . . . . . . . . . . . . . 1
. . . . . . . . . . . .. . . . . . . . . . 2
11,12
. . . . . .
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SPT SD-9241SS
Summary of Contents for SPT SD-9241SS
- Page 1 SD-9241SS-Stainless Steel SD-9 W-White ....1 ..... . 2 Control Panel.
-
Page 2: Wash Programs
This electric dishwasher has the common characteristics of other house-hold dishwashers, as well as these unique specialties: Time delay feature Allows you to program the operation to begin at a later time, between 1 to 24 hours. Program to run during off- peak hours helps reduce eletricity cost. - Page 3 This appliance must be grounded. In the event Improper connection of the equipment- of a malfunction or breakdown, grounding will grounding conductor can result in a risk reduce the risk of electric shock by providing a of electric shock. Check with a qualified path of least resistance of electric current.
- Page 4 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Display window: Program remaining time, Rinse aid low warning light. delay time, running indicator, fault codes and etc. Powe r in dica tor light. Delay Button : Press to program delay start.
- Page 5 For all soiled loads, such as Pre-wash Pre-wash pots,pans,c asserole dishes All in 1 wash 1 36 F ° and dishes that have been Rinse 1 54 F ° sitting with dried foo d on them Dryi ng. for a wh ile. Pre-wash For the heaviest soiled Pre-wash (122...
- Page 6 TO PREVENT FORMATION OF DEPOSITS, DO NOT ADD TOO MUCH DETERGENT. THIS DISHWASHER HAS SPECIALLY-DESIGNED WATER SOFTENERS. The dispenser must be refilled before the start of each wash cycle Refer to instructions under the Wash Cyc le Table on page 4. This unit uses less detergent and rinse aid than most conve ntional dishwashers. In general, only one tablespoon or detergent is needed for a nomral wash load.
- Page 8 The upper rack is de signed to ho ld more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be adjus ted for height by putting wheels of different height into the rails.
- Page 10 For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter. Main filter Food and soil particles trapp ed by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
- Page 11 To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish.
- Page 12 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
- Page 13 Combination of soft Use less detergent if you have soft water and select a water and too much shorter cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
-
Page 14: Your Guarantee
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
