Summary of Contents for SPT SD-9263SS

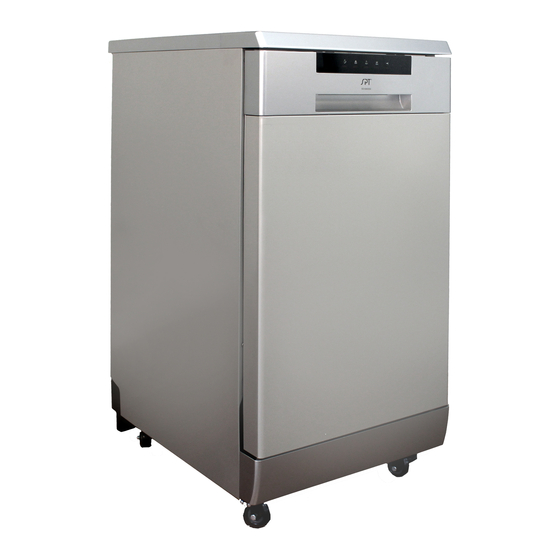

- Page 1 SD-9263SS SD-9263W Please read this manual carefully before using the dishwasher and Keep this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION Earthing Instructions Disposal PRODUCT OVERVIEW INSTALLATION INSTRUCTION About Power Connection Position The Appliance Water Supply Connection Of Drain Hoses USING YOUR DISHWASHER Control Panel Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser Basket Used Tips Preparing And Loading Dishes Loading The Baskets... - Page 3 TROUBLESHOOTING TIPS Error Codes TECHNICAL INFORMATION Product Fiche NOTE: Reviewing the section on troubleshooting Tips will help you solve some common problems by yourself. If you cannot solve the problems by yourself, please ask for help from a professional technician. The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
-
Page 4: Safety Information
SAFETY INFORMATION WARNING When using your dishwasher, follow the precautions listed below: Installation and repair can only be carried out by a qualified technician. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses;... - Page 5 The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
-
Page 6: Disposal
The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused. To save energy, in stand by mode , the appliance will switch off automatically while there is no any operation in 30 minutes . Disposal For disposing of package and the appliance please go to a recycling center. -
Page 7: Product Overview
PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Inner pipe Lower spray arm Filter assembly Dispenser Upper spray arm Cup rack Cutlery basket Upper basket Lower basket NOTE: Pictures are only for reference, different models may be different. -
Page 8: Installation Instruction
INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter plug with this appliance. -
Page 9: Position The Appliance
Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. -
Page 10: Connection Of Drain Hoses
Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it. -
Page 11: Using Your Dishwasher
USING YOUR DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power Press the Delay button to increase the delay start time. Delay a Delay start cycle for up to 24 hours in one-hour increments. After setting the delay time, press the Start/Pause button to start. - Page 12 Display Heavy heavily soiled items include pots and pans. With dried on food. Normal This is the standard program suitable for normally soiled loads, such as pots, plates, glasses and lightly soiled pans. For normally soiled loads, such as pots, plates, glasses and Cycle lightly soiled pans.
-
Page 13: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 14: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Remove the rinse aid reservoir cap Carefully pour in the rinse-aid into by rotating it counterclockwise. its dispenser, whilst avoiding it to overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 15: Filling The Detergent Dispenser
Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle . -
Page 16: Basket Used Tips
Basket Used Tips Adjusting the upper basket The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps: lower position Remove the upper basket. -
Page 17: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles... - Page 18 Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another.
- Page 19 Loading the upper basket 8 place setting The upper basket has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other.
- Page 20 Loading the cutlery basket The silverware basket can be divided into three separate modules that can be used in both upper and lower racks 4 4 4 Item Number WARNING Soup spoons Do not let any item extend Knives through the bottom. Always load sharp utensils with Salad forks the sharp point down!
-
Page 21: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Detergent Energy Water... -
Page 22: Starting A Cycle Wash
Detergent Energy Water Description Running Program Pre/Main (Kwh) Of Cycle Time(min) Pre-wash(55℃) Main wash(60℃) Rinse(55℃) 0/17.8g 0.56 Rapid Rinse(58℃) Drying Starting A Wash Cycle 1. Pull out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one. 2. -
Page 23: Forget To Add A Dish
Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Open the door a little to stop the dishwasher, after the spray arm stop working, you can open the door completely. -
Page 24: Maintenance And Cleaning
MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. - Page 25 Coarse filter Coarse filter Main filter Main filter Fine filter Open Open Hold the coarse filter and rotate it The fine filter can be pulled off the counter-clockwise to unlock the filter. bottom of the filter assembly. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
- Page 26 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the center still and out the spray arm upward.
-
Page 27: Caring For The Dishwasher
Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3. - Page 28 TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. start circuit break tripped. Remove any other appliances sharing the same circuit with the dishwasher.
- Page 29 Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. White film on Hard water minerals. To clean the interior, use a damp inside surface sponge with dishwasher detergent and wear rubber gloves.
- Page 30 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of can rotate freely. the spray arms. The filter combination Clean and/or fit the filter correctly.
- Page 31 Problem Possible Causes What To Do The dishes aren't Wrong program has With a short program, the washing drying been selected. temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating.
- Page 32 TECHNICAL INFORMATION W W W H H H Height (H) 905mm Width (W) 448mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°)
Need help?
Do you have a question about the SD-9263SS and is the answer not in the manual?
Questions and answers
My dishwasher is constantly giving an e1 code. We have cleaned the filters. It won't drain
The E1 code for the SPT SD-9263SS dishwasher indicates a "Longer inlet time." This can occur due to:
1. The faucet not being opened.
2. Restricted water intake.
3. Low water pressure.
To fix the issue:
- Ensure the faucet is fully opened.
- Check for blockages in the water supply line and clear them.
- Verify that the water pressure meets the dishwasher's requirements. If the pressure is too low, consult a professional technician.
This answer is automatically generated
Code E4, I cleaned the filter and unplugged to reset machine to no avail Code reappear. I even check to see if the line were kinked.
What does code E4 mean?
