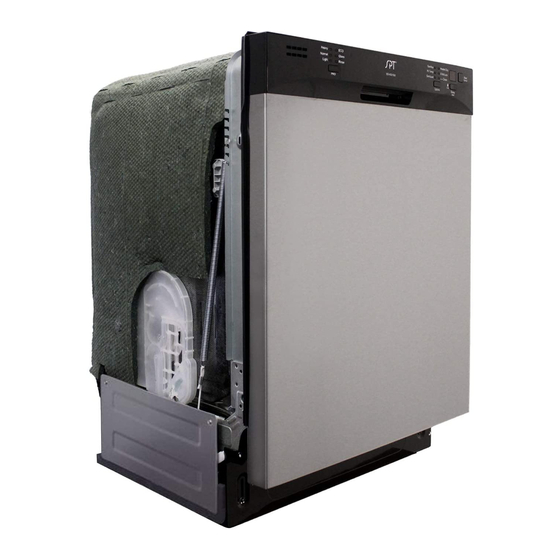

SPT SD-6501SS Use & Care Manual

Hide thumbs Also See for SD-6501SS:

Installation instructions manual (13 pages)

Table Of Contents

Quick Links

PANTONE BLACK C

REV

Table of Contents

Need help?

Do you have a question about the SD-6501SS and is the answer not in the manual?

Questions and answers

Donald Foust

January 23, 2025

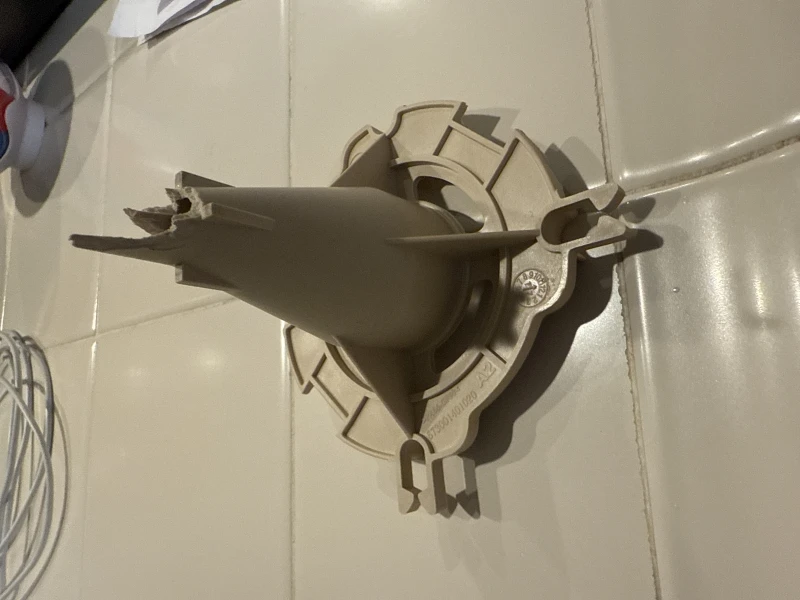

I need the plastic motor stablizer that sits on top of the motor that keeps the motor secure.

Summary of Contents for SPT SD-6501SS

Page 1 PANTONE BLACK C...
Page 2: Table Of Contents
Dishwasher Use & Care Manual Dishwasher Use & Care Manual SD-6501SS & SD-6501W TA B L E O F C O N T E N T S Important Safety Instructions ......2-3 Dishwasher Dispenser and Detergents ....11 Dishwasher Features ......... 4 Care and Cleaning ........
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! When using the dishwasher follow basic precautions including the following: Water supply temperature should be 120 or 149 . Dispose of the discarded appliance and packing material properly. The dishwasher must be grounded or it can result in a risk of electric shock . If there is any damage of the dishwasher please contact to your dealer do not to attempt to repair or replace any part by yourself .
Page 4 IMPORTANT SAFETY INSTRUCTIONS Do not use the dishwasher if it has a damaged power line or plug and do not plug the dishwasher into a damage d outlet failure to observe these instructions may result in electrical shock. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it . STEAM Do not touch the on the pannel during the washing...
Page 5: Dishwasher Features
DISHWASHER FEATURES Capacity 14 place settings Dimension 23.89 x 25.6 x 33.74inches W x D x H Weight unpacked 99lb 45kg Power Supply 120volts 60Hz Rated power usage Wash motor 50W Heater 840W Water Feed Pressure 120 psi 138 828kPa Rinse Aid Dispenser Top Spray Arm Cup Shelf...
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Options With the dishwasher door close, you can press When the wash cycle has been selected, you the PRO button to select the wash cycle. A can choose options by pressing the "Options" light on the display will indicate which cycle button.
Page 7 OPERATING INSTRUCTIONS Indicator light Delay Start To delay the start of a selected cycle, press Delay /Start Sanitize pad until the desired delay time shows in the LED When "sanitize" option is selected, the temperature indicator. It allows you to automatically start your of the water will reach a maximum of 70°C (158°F).
Page 8 OPERATING INSTRUCTIONS NOTE The remaining time could suddenly increase or decrease by several minutes. This means the Smart Sensor has checked the soil level and adjusted for the appropriate water fill level. Running time Running time with Running time with Program Description of Cycle Detergent(g)
Page 9: Preparing And Loading Dishes
PREPARING AND LOADING DISHES Dish preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove the remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to...
Page 10 PREPARING AND LOADING DISHES Loading the Bottom Rack bottom rack is designed to load plates, soup bowls, plates, saucers and cookwares. The adjustable rack space will allow you to load maximum 13 inch items. Large items should be placed along the edge so they do not interfere with the middle spray arm rotation, and make sure they do not...
Page 11 PREPARING AND LOADING DISHES Adjusting the top rack This dishwasher has a convenient top rack for silverware, cutlery, and small items. This rack can be adjusted to accommodate varying loads, as shown below. Left and right racks aligned Left rack adjusted to lower position and right rack angled Left rack adjusted to lower position and right rack to upper position Left rack adjusted to lower position and right rack moved to the left Left rack adjusted to lower position and right rack removed...
Page 12: Dishwasher Dispenser And Detergents
PREPARING AND LOADING DISHES Adjustable Upper Rack Fold-down Tines The upper rack height can be easily adjusted to The fold-down tines in the rack make easy loading accommodate loading taller dishes in either rack. for those extra large and hard-to-fit items. The tines may be left up for normal use or folded down for more flexible To accommodate taller dishes in the bottom rack, there loading.
Page 13 & Filling the detergent dispenser Filling the rinse aid dispenser Rinse aid greatly improves drying and reduces water 1. Push the dispenser cover latch downwards and spots and filming. open it . Rinse agent removes spots and prevents new film build up on your dishes, glasses, flatware, cookware and plastic.
Page 14: Care And Cleaning
CARE AND CLEANING Because hard water chemicals will clog the Clean the Stainless Steel Inner spray arm jets and bearings, it is necessary Door and Tub to clean the spray arms regularly. Wash the The tub is made of Stainless Steel, it will not rust or corrode if the dishwasher should be scratched or dented.
Page 15 CARE AND CLEANING Clean the Fine Filter Take out the Cylinder Filter and remove the Fine Filter from the dishwasher tub bottom. To remove the Fine Filter you must first remove the bottom spray arm as shown below. Flush the Fine Filter by holding it under running water and replace.
Page 16: Solutions To Common Dishwashing Problems
SOLUTIONS TO COMMON DISHWASHING PROBLEMS Solution Problem Possible cause Possible cause Solution Door may not be closed properly Shut the door compl l ete ly make sure it is latched Door may not be closed properly Power supply or power line is not connected Check and connect the power supply Power supply or power line is not connected Dishwasher won’t start...
Page 17 SOLUTIONS TO COMMON DISHWASHING PROBLEMS Problem Possible cause Solution Detergent dispenser Add the detergent and rinse aid as indicated Improper operation of the detergent cover will not shut the manual Water remains in the Select the proper cycle as indicated Previous cycle has not finished or has been by the dishwasher...
Page 18: Warranty
Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: ...
