Rane AM1 Datasheet

DATA SHEET

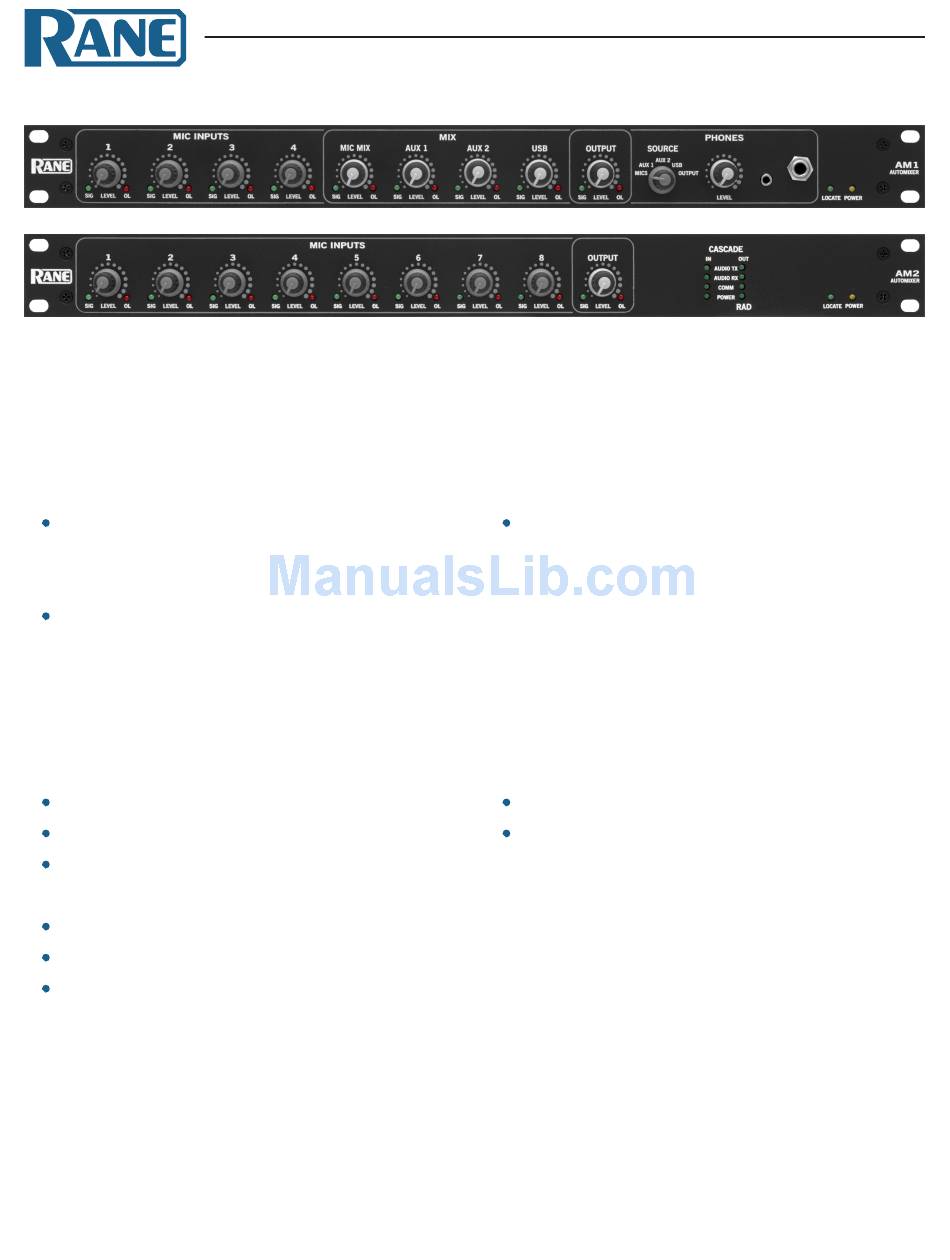

AM1 Features
INPUTS:
• Gain-Sharing Automatic Mic Mixing:
• 4 XLR Inputs with Level controls & Sig/OL indicators.
• Select Mic, Mic with 48V phantom, or Line-level.
• Manually Mix:
• Overall Mic Mix.
• Two Aux Inputs: dual RCA & 3.5 mm, independently monoed.
• USB Audio Input (16-bit, 48 kHz).
OUTPUTS (all mono):
• XLR Main with Mic/Line switch, Level control & Sig/OL.
• Dual RCA Record.
• Headphone ¼" and 3.5 mm Outputs with Level control:
• Source select cues Mics, Aux 1, Aux 2, USB Input or Output.
• USB Audio Output (16-bit, 48 kHz).
• USB Charge Port for iPod® or other USB-powered devices.
• Rane RAD and Cascade IN RJ-45 Ports:
• Cascade In Port connects up to seven Rane AM2 Automixers.
• RAD Port sends Output to Rane HAL or Mongoose Systems.
AM2 Features
INPUTS:
• Gain-Sharing Automatic Mic Mixing:
• 8 XLR Inputs with Level controls & Sig/OL indicators.
• Select Mic, Mic with 48V phantom, or Line level.
OUTPUTS (all mono):
• XLR Main with Mic/Line switch, Level control & Sig/OL.
• Rane RAD and Cascade IN RJ-45 Ports:
• Cascade In Port connects up to seven Rane AM2 Automixers.
• RAD Port may send Output to Mongoose (CobraNet).
• RAD Port may send Output to HAL (DSP/control). It is possible
to cascade the AM2 mix into Halogen's Gain-Sharing Auto Mixer
or Room Combine Processor DSP, so that all mics connected to
HAL may gain-share (does not work with the AM1).
AM1 & AM2
AUTOMIXERS
Data Sheet - 1
