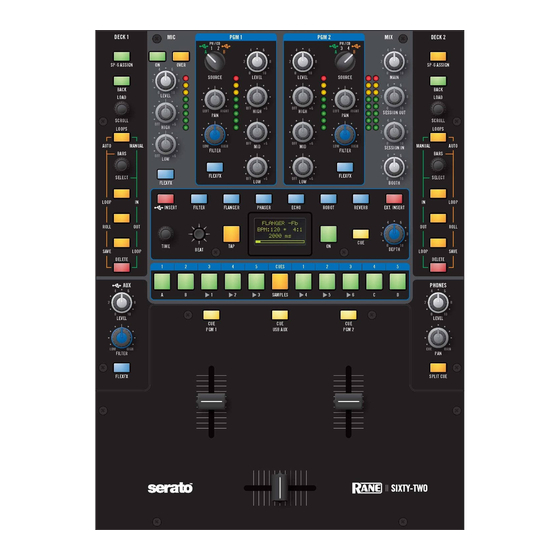

OWNER'S MANUAL
RANE
SIXTY-TWO
MIXER
MANUAL
SIXTY-TWO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIXTY-TWO and is the answer not in the manual?

Questions and answers

Related Manuals for Rane SIXTY-TWO

Summary of Contents for Rane SIXTY-TWO

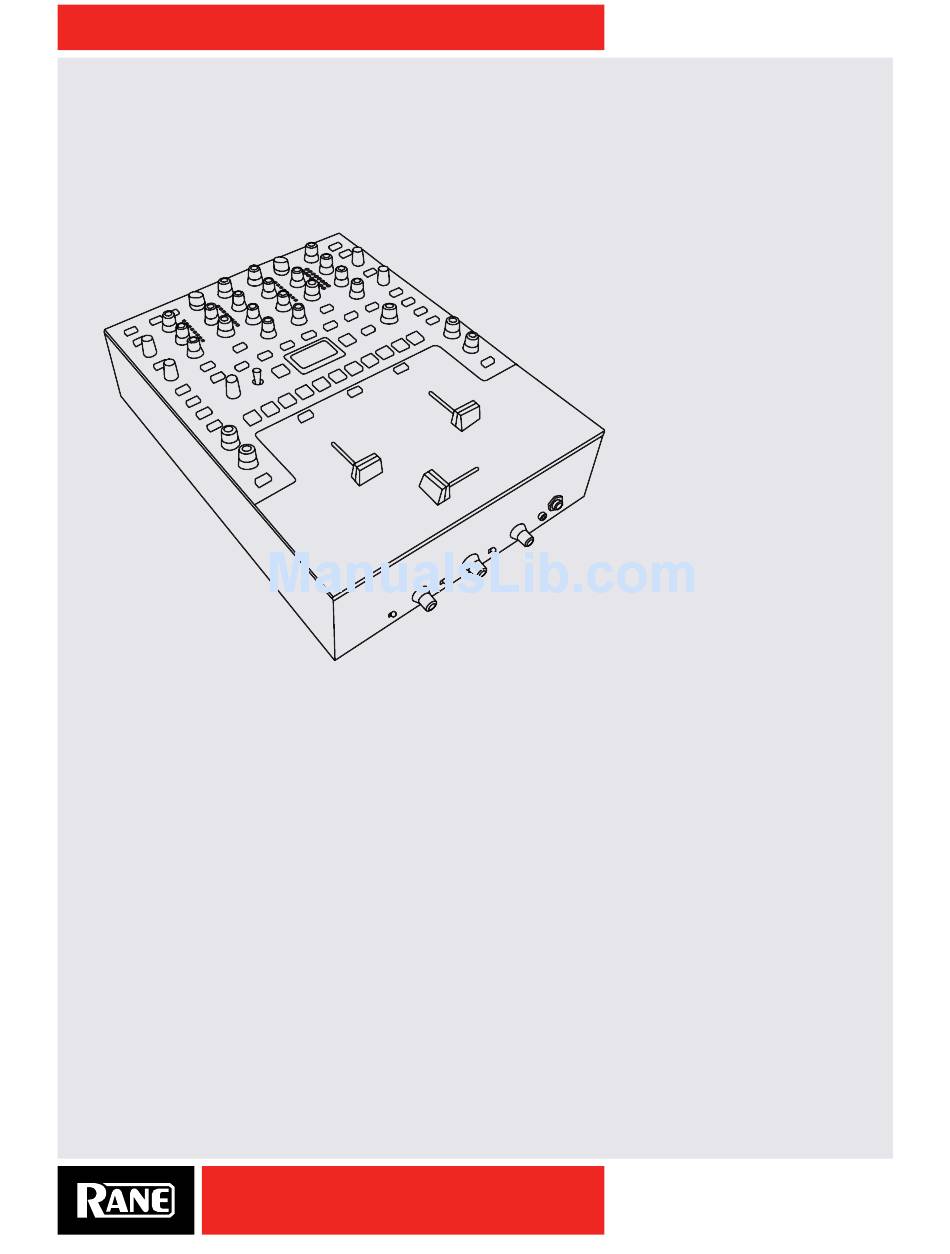

  • Page 1 OWNER’S MANUAL RANE SIXTY-TWO MIXER MANUAL SIXTY-TWO...

  • Page 2: Important Safety Instructions

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.
  • Page 3 • Consulter un revendeur ou un technicien radio / TV expérimenté. ATTENTION: Les changements ou modifications non expressément approuvés par Rane Corporation peuvent annuler l'autorité de l'utilisateur à manipuler cet équipement et rendre ainsi nulles toutes les conditions de garantie.

  • Page 4: Check List

    • IEC C5 line cord. • Serato DJ Software Manual. • This Sixty-Two Mixer Manual. Wear Parts The Sixty-Two Mixer contains no wear parts. The control vinyl records and CDs are wear parts as described in "Limited Warranties" on page 40. SIXTY-TWO...

  • Page 5: Table Of Contents

    23 Deck 1-2 Channel Options Menu 23 Mic Option Menu 8 USB Control Source 23 Mic Bypass Mode 23 Headphone Tone Control 10 Sixty-Two Overview 24 Mixer Shift Functions 24 MIDI Start/Stop 11 Sixty-Two Connections 24 Nudge 24 BPM Adjust...

  • Page 6: Quick Start: Software

    NOTE: A shortcut will be also be created on desktop. When you first connect your Sixty-Two Mixer via USB, you may see a request to install drivers. Accept the request and allow the driver installation to proceed. After drivers are installed, a Sixty-Two control panel will be available, and your software will recognize the Sixty-Two.

  • Page 7: Quick Start: Hardware

    BOOTH OUT SESSION ANALOG INPUTS RIGHT LEFT PHONO SIXTY-TWO GROUNDS RIGHT LEFT MADE IN U.S.A. RANE CORP. INPUT SELECT 100-240V 50/60 Hz 15 WATTS PH - CD PH - CD PH - CD PH - CD FLEXFX LOOP INPUT USB B...

  • Page 8: Analog Outputs

    “Main” output if a different cable type is required to your speaker amplifiers. Rane recommends balanced wiring (3-conductor) for the strongest signal and rejection of hum and noise. If your cable to the destination is less than 10 feet (3 meters), you can often get away with an unbalanced cable.
  • Page 9 RPM. In the bottom left is the current threshold setting, and the number in the bottom right shows the percentage of readable signal – this number should be close to 85% when your system is calibrated properly. For complete software operating instructions, see the Serato DJ Manual. SIXTY-TWO...

  • Page 10: Sixty-Two Overview

    • Includes Serato DJ software. • Includes Rane ASIO and Core Audio Drivers for Serato DJ and other audio programs. • Advanced MIDI and audio routing: route either deck to either USB Port, and MIDI follows the audio. • Independently control Library, Cues, Loops and Samples on two computers with more than 40 software controls.

  • Page 11: Sixty-Two Connections

    Return input. The FlexFX Return input is normally used along with the FlexFX Send output to connect an outboard analog effects processor. Phono Sensitivity and Analog Insert level can be adjusted in the "Rane Drivers" on page 26. Analog Outputs There are five stereo analog outputs available on the mixer: •...
  • Page 12 The Sixty-Two has two USB ports, allowing simultaneous connection of two computers. Each port is completely independent. It is possible to run Serato DJ on one computer while running third-party software on the other, Mac or PC. See how to share the Sixty-Two in "DJ Changeover" on page 25. Left Virtual Deck L&R Right Virtual Deck L&R...

  • Page 13: Deck Input Channels

    Left / Right PAN controls adjust the balance of left and right signals. Left and right are equal at 12 o’clock . Tone Controls HIGH, MID and LOW full-cut isolator tone controls adjust the frequency response from off to +6 dB. Unity gain (no boost or cut) is at 12 o’clock. SIXTY-TWO...

  • Page 14: Filter

    LEVEL SOURCE MAIN the mixer in the "Deck 1-2 Channel Options Menu" on page 23, or in the "Rane Drivers" on page 26. BACK BACK High resonance adds a “zip” effect to the Filter when it is moved. Low resonance is best when the Filter is...

  • Page 15: Aux

    AUX input has it’s own LEVEL, FILTER and FLEXFX assign. CUE for AUX is in the FILTER center just below the SAMPLES row of buttons. The Resonance for the AUX FILTER can be adjusted in the "Rane Drivers" on page FLEXFX Mic Input DECK 1 DECK 1...

  • Page 16: Software Controls

    PH / CD PH / CD BYPASS BYPASS CLEAN FEED CLEAN FEED The Sixty-Two Mixer has dedicated Serato DJ software controls for the Left Virtual Deck and Right Virtual Deck. The mixer has two high-speed SP-6 ASSIGN SP-6 ASSIGN OVER OVER...

  • Page 17: Cues / Samples Control

    Serato DJ. Sample playback can be assigned to the Left Virtual Deck, Right Virtual Deck or USB AUX. The Sixty-Two has a dedicated USB AUX input for the sample player typically used for SP-6 playback. When two USB ports are in use, the SP-6 ASSIGN button at the top of each control strip determines to which computer the SP-6 player controls are assigned.

  • Page 18: Flexfx Loop

    OWNER’S MANUAL FlexFX Loop The FlexFX Bus in the Sixty-Two works differently than a typical effects insert loop. This architecture opens up many new possibilities not possible with simple effect insert designs found on other mixers. The FlexFX Bus is more like an auxiliary bus that can have multiple signals assigned to it. Signals assigned to the bus may then have internal effects, external analog effects and external USB effects applied in any combination.

  • Page 19: Internal Audio Effects

    The type of Echo is selected in the menu on the mixer in the "Echo Effect Options Menu" on page 22, or in the "Rane Drivers" on page 26. Operation of the Echo controls is detailed in the "Effects Parameter Table" on page 21.
  • Page 20 Regardless of the clock source, the mixer broadcasts the current MIDI Beat-Clock to both USB ports when the Send MIDI Beat Clock option is selected in the MIDI Configuration page of the driver control panel. Both USB ports will also echo out any system real-time messages from the host computer. SIXTY-TWO...

  • Page 21: Effects Parameter Table

    "Shift Adjusts reverb reverb decay time, TAP does not Reverb right or down/left in 10% Options" on page 22 intensity. shown by the bar in affect reverb. steps. or in the "Rane Drivers" the display. on page 26. SIXTY-TWO...

  • Page 22: Shift Options

    To select a menu, press and hold the SHIFT  button and then press the desired menu key.   Note: the Shift button may be labeled as the Delete button on older Sixty-Two Mixers. Ext. Insert Options Menu This menu sets the sensitivity of the external...

  • Page 23: Deck 1-2 Channel Options Menu

    When the bar-graph is in the center, the response is flat. As the control is moved toward Low, low frequencies are boosted and high frequencies are cut. As the bar-graph moves toward High, high frequencies are boosted and low frequencies are cut. SIXTY-TWO...

  • Page 24: Mixer Shift Functions

    SHIFT normal (e.g., Scratch, Loop, Cues etc.). However, once you have finished, playback is returned to where it would be if you had not manipulated the audio. See Slip in the Serato DJ manual. SIXTY-TWO...

  • Page 25: Dj Changeover

    Serato DJ or software control panels with current mixer settings. Swapping between two DJs is now easier than ever! With a computer already connected to the Sixty-Two and playing, do the following: 1.

  • Page 26: Rane Drivers

    OWNER’S MANUAL Rane Drivers The Serato DJ installer includes Core Audio (Mac) and ASIO (PC) drivers that allow your Rane Sixty-Two to use other popular DJ and DAW audio applications. Once installed, you will have the option to select the Sixty-Two’s inputs and outputs in the audio settings of these programs.
  • Page 27 Another method is to match the level of a CD on another input. • Filter Resonance: Each channel of the Sixty-Two has a Filter knob that provides High- and Low-Pass filtering. Filter resonance controls the “peak” of the filter cutoff frequency. The Low setting provides the smoothest Filter without adding gain.

  • Page 28: Factory Defaults

    1. Power off the Sixty-Two. 2. Push both Deck 1 and 2 FLEXFX buttons at the same time. 4. While holding these buttons down, power on the Sixty-Two. 5. Immediately after fading up, the FLEXFX lights flash one time, indicating a successful reset.

  • Page 29: Midi Mapping

    For advanced users or with third-party DAWs, it is possible to custom MIDI-map most mixer controls on the Sixty-Two and control the lighting and color of buttons in the Serato DJ control strips. There are three groups of MIDI controls: •...
  • Page 30 NUDGE START / STOP SLIP SLIP SAVE LOOP LOOP SAVE TIME BEAT DEPTH SHIFT SHIFT CUES 104 105 101 102 103 106 107 PHONES SAMPLES LEVEL LEVEL DECK 1 USB AUX DECK 2 HIGH MAIN FILTER FLEXFX SPLIT CUE SIXTY-TWO...
  • Page 31 OWNER’S MANUAL SIXTY-TWO...

  • Page 32: Midi Implementation

    LH Manual Loop In PRI – Green SEC – Orange DAW MIDI Control 0x1D LH Manual Loop PRI – Green SEC – Orange DAW MIDI Control 0x1E LH Manual Out PRI – Green SEC – Orange DAW MIDI Control SIXTY-TWO...
  • Page 33 0x71 RH Auto Loop PRI – Green SEC – Orange DAW MIDI Control 0x72 RH Auto Roll PRI – Green SEC – Orange DAW MIDI Control 0x73 RH Auto Save PRI – Green SEC – Orange DAW MIDI Control SIXTY-TWO...
  • Page 34 Same as Analog 1 Phono Sensitivity 0x21 Main Record Select, (USB 11-12) 0x01 Record Main Mix 0x02 Record Mic 0x26 USB Aux Filter Resonance 0-127, 0x00-0x7F Low to High Resonance 0x27 FX Flanger Type 0-63, 0x00-0x3F Negative 64-127 0x40-0x7F Positive SIXTY-TWO...
  • Page 35 USB A Left Virtual Deck, 0x02 Analog 1 0x03 Analog 2 0x04 USB B Left Virtual Deck 0x75 Deck 2 Source Select 0x01 USB A Right Virtual Deck 0x02 Analog 3, 0x03 Analog 4 0x04 USB B Right Virtual Deck SIXTY-TWO...

  • Page 36: Magnetic Fader Maintenance

    OWNER’S MANUAL Magnetic Fader Maintenance The faders and crossfader in the Sixty-Two are designed with materials highly resistant to corrosion and most chemicals. While they will handle millions of operations, they may become dirty over time. Bad things may be spilled into a fader, but in many instances the fader may not be damaged and the sound quality thus unaffected.
  • Page 37 If the CUE lights flash three times, the sensors may have moved too far or all faders were not properly centered, and the faders cannot correctly calibrate. Problems? Contact Rane Corporation customer service at 425-355-6000 or email us at info@rane.com. Online help is available at dj.rane.com.

  • Page 38: Technical Specifications

    OWNER’S MANUAL Technical Specifications Sixty-Two Specifications All specifications typical unless otherwise stated Analog Inputs 4 Stereo unbalanced RCA jacks …...Phono or Line level input Rear panel switches for each input …...Phono Response RIAA ±1 dB, Gain: 31 dB at 1 kHz …...Max Phono Input...

  • Page 39: Battle Bridge Accessory

    Battle Bridge Accessory When installing a Sixty-Two mixer in a coffin case, it is important to leave 10 centimeters (3.9 inches) in front and in back of the mixer to allow room for cables and access to controls. The rubber feet provided on the chassis for table top use should remain in place when installing the mixer in a coffin case.

  • Page 40: Limited Warranties

    1) arising out of material or workmanship not provided or furnished by Rane, or 2) resulting from abnormal use of the product or use in violation of instructions, or 3) in products repaired or serviced by other than the Rane Factory, or 4) in products with removed or defaced serial numbers, or 5) in components or parts or products expressly warranted by another manufacturer.
  • Page 41 IN THE COUNTRY WHERE THE UNIT WAS PURCHASED, OR (if product was purchased in the U.S.) AT THE RANE FACTORY IN THE U.S.. If the product is being sent to Rane for repair, please call the factory for a Return Authorization number.

  • Page 42: Declaration Of Conformity

    LV directive and the EMC directive in the event that the equipment is modified without written consent of the manufacturer. This declaration of conformity is issued under the sole responsibility of Rane Corporation. Type of Equipment: Professional Audio Signal Processing...
  • Page 43 OWNER’S MANUAL SIXTY-TWO...
  • Page 44 OWNER’S MANUAL PART 22489 SIXTY-TWO...
