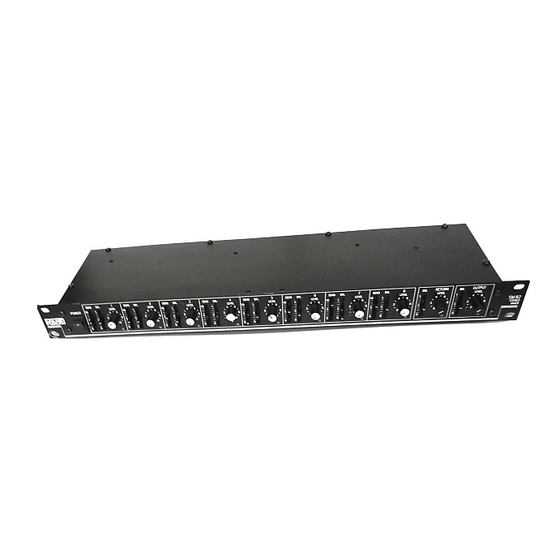

- Page 1 SM 82 STEREO LINE MIXER...
-
Page 2: Important Safety Instructions
Protect the power cord and plug from damage caused by being walked on or pinched. Protect the line cord, where it exits the unit, from excessive strain. Only use attachments and acces- sories specified by Rane. Unplug this equipment during lightning storms or when unused for long periods of time. -
Page 3: Stereo Mixer
Never connect anything except an RS 1 or other approved Rane AC power supply to the thing that looks like a telephone jack on the rear of the SM 82. This is an AC input and requires some special attention if you do not have an operational power sup- ply exactly like the one that was originally packed with your unit. - Page 4 FRONT PANEL DESCRIPTION RETURN OUTPUT SM 82 STEREO MIXER POWER SEND BAL LEVEL SEND BAL LEVEL SEND BAL LEVEL SEND BAL LEVEL SEND BAL LEVEL SEND BAL LEVEL SEND BAL LEVEL SEND BAL LEVEL LEVEL LEVEL 11 10 1 POWER switch: Depress the upper portion of this switch to turn the unit on (with power supply plugged in); depress the lower portion to turn the unit off.
- Page 5 3 LOOP RETURN: These ¼" aux returns may connect the output of a reverb or other effect unit to the Loop bus of the SM 82. If no effect is used, they can be used as a ninth stereo Input to the mixer in addition to those described in 5.
-
Page 6: Block Diagram
0 dB (MONO) RECEIVE BALANCE CH 7 LEFT (MONO) CH 8 RING RIGHT LOOP LEFT EXPAND INPUT RING RIGHT MAIN LEFT EXPAND INPUT ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 USA TEL 425-355-6000 FAX 425-347-7757 WEB www.rane.com 107271 Manual-4...
