CDE-7828E/
CDE-7826E

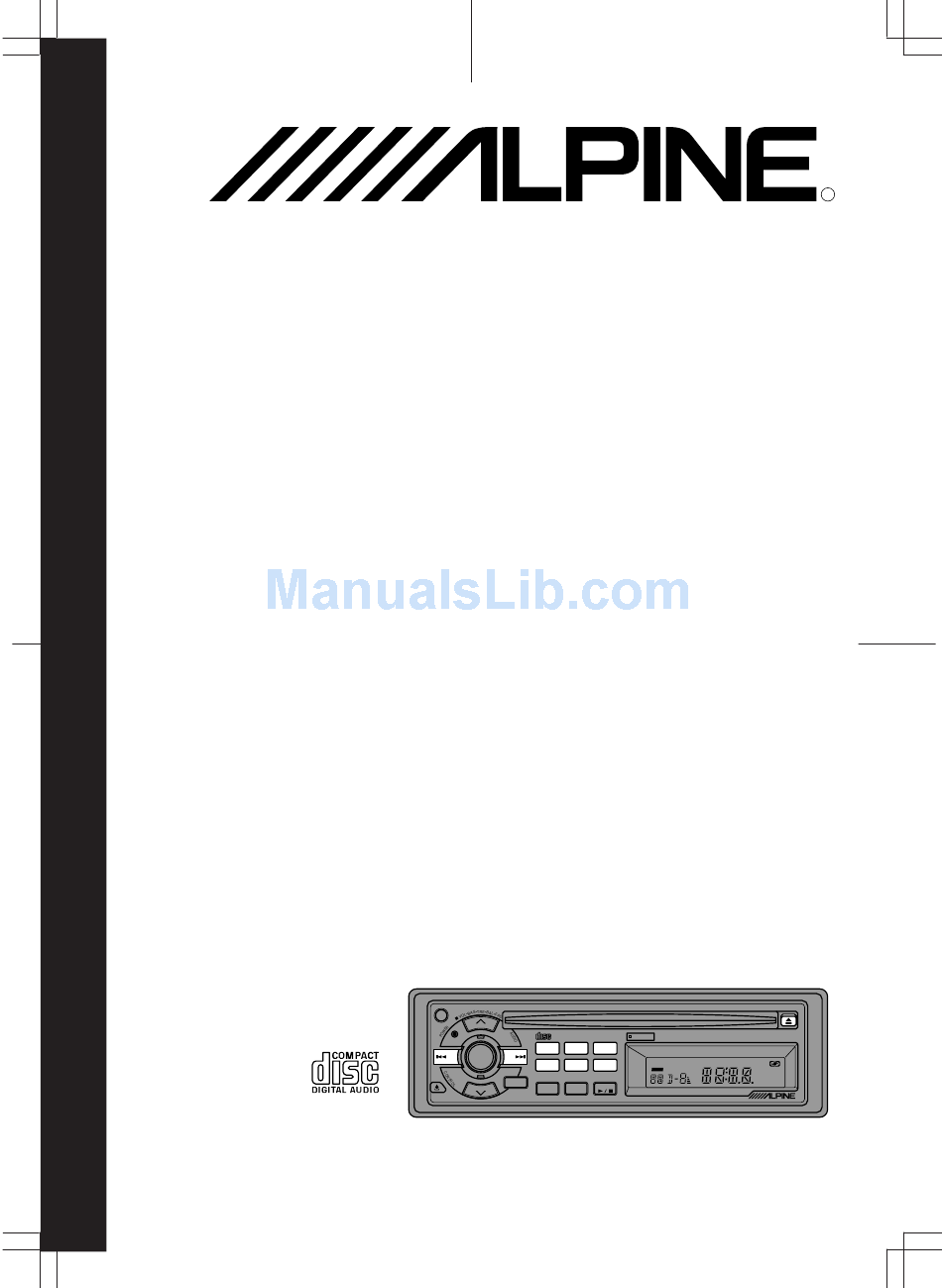

FM/AM Compact Disc Receiver
• OWNER'S MANUAL
Please read this manual to maximize your enjoy-
ment of the outstanding performance and feature
capabilities of the equipment, then retain the
manual for future reference.
PWR
MODE
DN
LOUD
35W x 4
COMPACT
CLOCK
DISP
DIGITAL AUDIO
1
2
3
M.I.X.
RPT
SCAN
UP
4
5
6
REPEAT
M.I.X.
CT
H
M
D.A.P.
TUNE
A. MEMO
TUNER
DISC
D.A.P.
BAND
CD RECEIVER
R
35
4
WATTS x
AMPLIFIER
ST
DX
SEEK
LOUD
CDE-7828E
(CDE-7828E)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDE-7828E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpine CDE-7828E

Summary of Contents for Alpine CDE-7828E

  • Page 1 CDE-7828E/ CDE-7826E FM/AM Compact Disc Receiver • OWNER'S MANUAL Please read this manual to maximize your enjoy- ment of the outstanding performance and feature capabilities of the equipment, then retain the manual for future reference. COMPACT CLOCK DISP WATTS x...
  • Page 2 English...
  • Page 3 English Precautions Warning DO NOT DISASSEMBLE OR ALTER Attempts to disassemble or alter may lead to an accident, fire and/or electric shock. KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN Store small articles (screws, etc.) in places not accessible to children. If swallowed, consult a physician immediately.
  • Page 4 English Precautions Caution DO NOT RAISE THE VOLUME EXCES- SIVELY Keep the volume at a level where you can still hear outside noises while driving. Driving while unable to hear outside sounds could cause an accident. DO NOT USE THIS EQUIPMENT OUTSIDE THE VEHICLE Do not use this equipment for purposes other than those listed for a vehicle.

  • Page 5: Table Of Contents

    English Contents Page 6 ............... Precautions 9 ........... Detachable Front Panel Basic Operation 10 ............Initial System Start-up 10 ..........Turning Power On and Off 11 ..........Non Fading Pre-Out (N.F.P.) On and Off 12 ........Adjusting Volume/Bass/Treble/ Balance/Fader 13 ..........Turning Loudness On/Off Radio Operation 14 ..............

  • Page 6: Precautions

    Do not attempt to insert a disc into the unit when the unit power is off. Maintenance If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.
  • Page 7 English Precautions Inserting Discs Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. Your player will automatically eject any disc that is inserted incorrectly.

  • Page 8: Installation Location

    English Precautions Installation Location Make sure the CDE-7828E/CDE-7826E player/ receiver will not be exposed to: • Direct sun and heat • High humidity • Excessive dust • Excessive vibrations Handling the Detachable Front Panel • Do not expose to rain or water.

  • Page 9: Detachable Front Panel

    Detachable Front English English Panel Detaching the Front Panel Press the PWR button to turn off the power. Press the release button until the front panel pops out. Grasp the left side of the front panel and pull it out. Note: To protect the front panel, place it in the supplied carrying case.

  • Page 10: Basic Operation

    English Basic Operation Initial System Start-Up Immediately after installing or applying power to the unit, it should be initialized. To do this, first, remove the detachable front panel. Behind the front panel, to the left of the connector, is a small hole.

  • Page 11: Non Fading Pre-Out (N.f.p.)

    English Basic Operation Non Fading Pre-Out (N.F.P.) On and Off Press and hold the eject ( ) button for at least 3 seconds. With each press, N.F.P. is toggled On or Off. N.F.P. ON: In this position, the Pre-Output will not be affected by the fader.

  • Page 12: Adjusting Volume/Bass/Treble

    English Basic Operation Adjusting Volume/Bass/ Treble/Balance/Fader Press and release the MODE/LOUD button repeatedly to choose the desired mode. MODE LOUD Note: If the button is not pressed in 5 seconds after selecting the BAS, TRE, BAL and FAd modes, the unit automati- cally returns to the VOL mode.

  • Page 13: Turning Loudness On/Off

    English Basic Operation Turning Loudness On/Off Loudness introduces a special low- and high- frequency emphasis at low listening levels to compensate for the ear's decreased sensitivity to bass and treble sound. Press and hold the MODE/LOUD button for at least 2 seconds to activate or deactivate the LOUD MODE loudness mode.

  • Page 14: Radio Operation

    English Radio Operation Manual Tuning Press the TUNER/BAND button repeatedly until TUNER the desired radio band is displayed. BAND Press the TUNE/A. MEMO button repeatedly TUNE until "MAnu" is displayed. SEEK A. MEMO Note: Initial mode is DX SEEK. SEEK MAnu Press the DN ( ) or UP (...

  • Page 15: Automatic Seek Tuning

    Réception Operación de la English Radio Operation radio radio Automatic Seek Tuning Press the TUNER/BAND button repeatedly until TUNER the desired radio band is displayed. BAND Press the TUNE/A. MEMO button to illuminate the DX indicator in the display. With the DX TUNE SEEK A.

  • Page 16: Manual Storing Of Station Presets

    English Radio Operation Manual Storing of Station Presets 1. Tune in the desired radio station you wish to store in the preset memory. 2. Press and hold any one of the preset buttons (1 through 6) for at least 2 seconds. M.I.X.

  • Page 17: Automatic Memory Of Station Presets

    Réception Operación de la English Radio Operation radio radio Automatic Memory of Station Presets Press the TUNER/BAND button until the desired radio band is displayed. TUNER BAND Press and hold the TUNE/A. MEMO button for TUNE at least 2 seconds. A.

  • Page 18: Storing Into Direct Access Preset (D.a.p.) Band

    English Radio Operation Storing into Direct Access Preset (D.A.P.) Band A combination of radio stations in any band (up to 6 stations) can be manually preset into the D.A.P. band. Press the D.A.P. button until the D.A.P. D.A.P. indicator appears. D.A.P.

  • Page 19: Tuning To Preset Stations

    Réception Operación de la English Radio Operation radio radio Tuning to Preset Stations Press the TUNER/BAND button repeatedly until the desired band is displayed. TUNER BAND To select the D.A.P. band, press the button until the D.A.P. indicator appears. D.A.P. Press the station preset button that has your desired radio station in memory.

  • Page 20: Cd Operation

    English CD Operation Inserting/Ejecting Disc Insert a CD half way into the slot with the label LOAd side facing up. The player automatically draws the disc into the disc compartment. The DISC indicator appears to show that a disc is loaded. Note: Three-inch (8 cm) CD's can not be used.

  • Page 21: Track/Elapsed Time Display Switching

    English CD Operation Track/Elapsed Time Display Switching Press and hold the CLOCK/DISP button for T-03 at least 2 second to alternate between the CLOCK DISP Track Number and Elapsed Time displays. 8'35 Music Sensor (Skip) Momentarily press the DN ( ) button once to T-04 return to the beginning of the current track.

  • Page 22: Fast Forward And Backward

    English CD Operation Fast Forward and Back- ward Press and hold the DN ( ) or UP ( ) button to quickly move backward or forward until you reach the desired section of the track. Repeat Play Press the RPT button to play back repeatedly the track being played.

  • Page 23: Random Play)

    English CD Operation M.I.X. (Random Play) Press the M.I.X. button in the play or pause M.I.X. mode. The M.I.X. indicator will illuminate and the tracks on the disc will be played back in a M.I.X. random sequence. Each track on the disc will be played once.

  • Page 24: Clock Operation

    English English CD Operation Clock Operation Displaying Time Press the CLOCK button to display the time. 12:00 The unit displays the time. CLOCK Note: Selecting any tuner or CD function while in the Clock mode will interrupt the time display momentarily. The function selected will be displayed for about 5 seconds before the time returns to the display.

  • Page 25: Setting Time

    English English Clock Operation CD Operation Setting Time Press and hold the CLOCK button for at least 3 12:30 seconds. The time indication will begin to blink. CLOCK Press the CT button while the time indication is 12:00 blinking to set seconds to "0". Example: To adjust to 9:35 9:00 Press the "H"...

  • Page 26: Disc Care

    Using such accessories Transparent Sheet can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players. Disc Stabilizer...

  • Page 27: In Case Of Difficulty

    This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer. Initial Turn-on After Installation Symptom Cause and Solution No function or display.

  • Page 28: Radio Mode

    English In Case of Difficulty Radio Mode Symptom Cause and Solution Unable to receive stations. • No antenna or open connection in cable. – Make sure the antenna is properly connected; replace the antenna or cable if necessary. Unable to tune stations in the seek mode. •...
  • Page 29 English In Case of Difficulty CD Mode Cause and Solution Symptom CD insertion not possible. • There is a CD already in the transport. – Eject the CD in transport and remove it. • The CD is being improperly inserted. –...

  • Page 30: Specifications

    English Specifications FM TUNER SECTION Tuning Range ...................... 87.5 – 108.0 MHz Mono Usable Sensitivity ................9.3 dBf (0.8µV/75 ohms) 50 dB Quieting Sensitivity ................ 13.5 dBf (1.3µV/75 ohms) Alternate Channel Selectivity ....................80 dB Signal-to-Noise Ratio ......................65 dB Stereo Separation ........................
  • Page 31 English Specifications GENERAL Power Requirement ..............14.4V DC (11 – 16V (allowable)) Maximum Power Output ..................... 35W x 4 Pre-Output Voltage ....................500 mV/10k ohms Note: The above spec is used for reference only. Actual output will be greater than 2.0V (before clipping).
  • Page 32 English Note...
