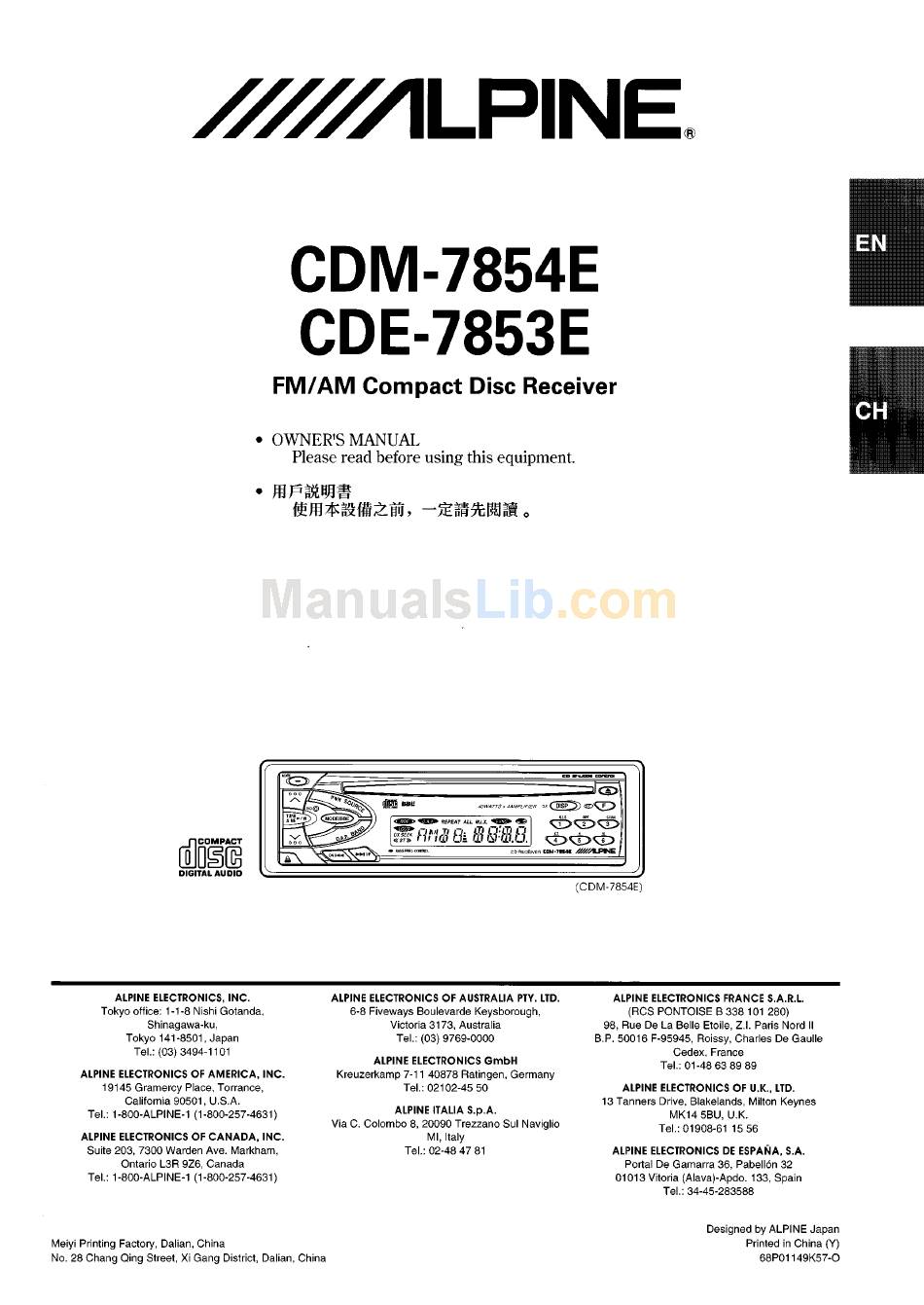

Alpine fm/am compact disc receiver owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Alpine CDE-7853E

Summary of Contents for Alpine CDE-7853E

  • Page 3: Table Of Contents

    (CDM-7854E only) ... 5 Adjusting Volume/Bass/Treble/ Balance (Between Left and Right)/ Fader (Between Front and Rear) ... 5 Turning Loudness On/Off (CDE-7853E only) . 5 Audio Mute Function ... 5 BBE Mode On/Off (CDM-7854E only) ... 5 Setting Bass Frequency ... 5 Displaying Time ...

  • Page 4: Operating Instructions

    Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism. Maintenance If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.
  • Page 5 Use of special shape discs may cause damage to the mechanism. Installation Location Make sure the CDM-7854E/CDE-7853E will not be installed in a location subjected to: • Direct sun and heat • High humidity and water •...

  • Page 6: Basic Operation

    The very first time the power is turned on, the volume will start from level 12, the BBE will be on in the tuner mode*, and the LOUD function will be on**. * CDM-7854E only. ** CDE-7853E only. B.C. Reset switch...

  • Page 7: Subwoofer On And Off

    Depending on the connected devices, some functions and display indications do not work. Turning Loudness On/Off (CDE-7853E only) Loudness introduces a special low- and high- frequency emphasis at low listening levels. This compensates for the ear's decreased sensitivity to bass and treble sound.

  • Page 8: Displaying Time

    Basic Operation Displaying Time Press the CLK (clock) button repeatedly until the clock time is displayed. Each press changes the modes as follows: Radio mode. Clock priority Radio frequency mode CD Player/Changer(CDM-7854E only) modes Track No. Playing time mode mode Setting Time While the clock time is displayed, press and hold the CLK (clock) button for at least 3...

  • Page 9: Radio Operation

    Radio Operation TUNE BAND DN g Manual Tuning Press the SOURCE button until a radio frequency appears in the display. Press the BAND button repeatedly until the desired radio band is displayed. Each press changes the band: Press the TUNE button repeatedly until "DX SEEK"...

  • Page 10: Manual Storing Of Station Presets

    Radio Operation A.ME D.A.P./BAND Manual Storing of Station Presets Select the radio band and tune in a desired radio station you wish to store in the preset memory. Press and hold any one of the Preset buttons (1 through 6) for at least 2 seconds until the station frequency on the display blinks.

  • Page 11: Storing Into Direct Access Preset (D.a.p.)

    Storing into Direct Access Preset (D.A.P.) Band A combination of radio stations in any band (up to 6 stations) can be manually preset into the D.A.P. band. Press and hold the D.A.P. button for more than 2 seconds until the D.A.P. indicator appears. Press the BAND button to select FM or AM.

  • Page 12: Cd Player Operation

    CD Player Operation - / J SOURCE Inserting/Ejecting Disc Insert a CD half way into the slot with the label side facing up. The player automatically draws the disc into the disc compartment. The Disc indicator appears to show that a disc is loaded.

  • Page 13: Repeat Play

    Press the "F" button to illuminate the "FUNC" indicator and go to step 1. Controlling CD Changer (Optional) (CDM-7854E only) If an optional Alpine 6-disc CD Changer is connected to the 8-pin DIN connector (M-Bus) of the CDM-7854E, you can control the CD changer using the CDM-7854E.

  • Page 14: Information

    - Clean the disc; damaged disc should be replaced. Error displays (built-in CD player only) • Mechanical error - Press the c button. After the error indication disappears, insert the disc again. If the above- mentioned solution does not solve the problem, consult your nearest ALPINE dealer.

  • Page 15: Specifications

    E - 01 • Malfunction in the CD Changer. - Consult your Alpine dealer. Press the magazine eject button and pull out the magazine. Check the indication. Insert the magazine again. If the magazine cannot be pulled out, consult your Alpine dealer.

  • Page 16: Installation And Connections

    (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the CDM- 7854E/CDE-7853E to the fuse box, make sure the fuse for the intended circuit of the CDM-7854E/CDE-7853E has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle.

  • Page 17: Installation

    Connect each input lead coming from an amplifier or equalizer to the corresponding output lead coming from the left rear of the CDM-7854E/CDE-7853E. Connect all other leads of the CDM-7854E/CDE- 7853E according to details described in the CONNECTlONS section.

  • Page 18: Connections

    Installation and Connections Connections Blue Blue/White (CDM-7854E only) Yellow Black (CDM-7854E only) (CDM-7854E only) When Subwoofer is set to OFF: Output is from Rear speakers. When Subwoofer is set to ON: Output is from Subwoofer. For details on how to set the Subwoofer to ON/OFF, see “Subwoofer On and Off” on page 5. POWER ANT REMOTE TURN-ON...
  • Page 19 Connect the ground lead securely to a bare metal spot (remove the coating if necessary) of the car chassis. If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various Alpine noise suppressors, contact them for further information.
