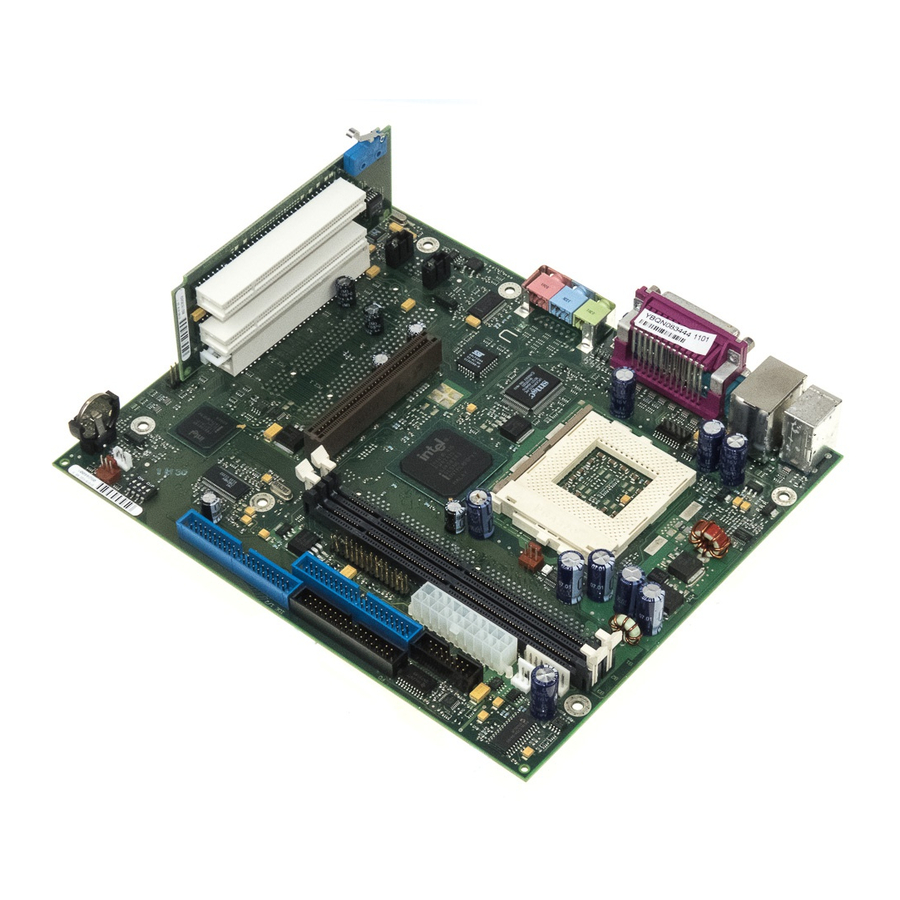

- Page 1 COMPONENT .com Technisches Handbuch / Technical Manual Systembaugruppe / Systemboard D1215...
- Page 2 Further information can be found in the "Safety, Warranty and Ergonomics" booklet. The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com Are there ..any technical problem or other question you need clarified? Please contact: ·...
- Page 4 Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Herausgegeben von/Published by Fujitsu Siemens Computers GmbH A26361-D1215-Z120-1-7419 Bestell-Nr./Order No.: Printed in the Federal Republic of Germany AG 0102...
- Page 5 German English Systembaugruppe D1215 System Board D1215 Technisches Handbuch Technical Manual Ausgabe Januar 2002 January 2002 edition...
- Page 6 All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. Copyright ã Fujitsu Siemens Computers GmbH 2002 All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved.
-
Page 7: Table Of Contents
Write protection for floppy disks - switch 3 ................10 Add-on modules ..........................11 Installing and removing processors..................12 Upgrading main memory......................13 Upgrading an AGP screen controller or the GPA memory ............14 Installing network board with WOL...................14 Replacing the lithium battery....................15 Glossary ............................16 A26361-D1215-Z120-6-7419... -
Page 9: Introduction
Please observe the safety information provided in the "Important notes" chapter in the device’s operating manual. Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore essential to observe the instructions in the "Add-on modules" - "Replacing the lithium battery" section. English - 1 A26361-D1215-Z120-6-7419... -
Page 10: Information About Boards
· Remove the power plug from the mains supply before inserting or removing boards containing ESDs. · Always hold boards with ESDs by their edges. · Never touch pins or conductors on boards fitted with ESDs. 2 - English A26361-D1215-Z120-6-7419... -
Page 11: Features
Mono Micro-In, Stereo Line-In external: Game/Midi port, Stereo Line-Out / headphones · Fujitsu Siemens system monitoring and temperature monitoring · 2 DIMM slots for 32 to 512 Mbyte main memory (SDRAM memory modules meet the PC100/PC133 specification) without ECC ·... - Page 12 (16C550 compatible with FIFO). This port does not support the ring indicator signal. · 1 internal WOL interface · 2 external PS/2 ports for keyboard and mouse · 2 external USB ports · 2 internal USB ports · Real-time clock/calendar with integrated battery backup 4 - English A26361-D1215-Z120-6-7419...
-
Page 13: External Ports
4 = USB ports 1 and 2 Headphones 5 = Serial port 1 9b = Audio Line-In 6 = Parallel port 9c = Audio Micro-In The components and connectors marked are not necessarily present on the system board. English - 5 A26361-D1215-Z120-6-7419... -
Page 14: Internal Ports And Connectors
6 = Connector for control panel and 13 = Power supply monitoring loudspeaker 14 = Cover monitoring 7 = Fan 2 (e.g. for the processor) The components and connectors marked are not necessarily present on the system board. 6 - English A26361-D1215-Z120-6-7419... -
Page 15: Temperature / System Monitoring
In addition, any unnecessary noise is also prevented by reducing the fan speed, and information is provided about the system status. Cover monitoring protects the system from unauthorised opening. An onboard controller developed by Fujitsu Siemens Computers controls the temperature and system monitoring. The following functions are supported: Temperature monitoring: Measurement of the processor and the system temperature with an onboard temperature sensor. -
Page 16: Hard Disk Connection
The LAN RJ45 connector is equipped with a yellow and a green LED (light emitting diode). 1 = a connection exists (e.g. to a hub). 2 = Link Mode: the LAN connection is active. WOL mode: a Magic Packet is being received. 8 - English A26361-D1215-Z120-6-7419... -
Page 17: Screen Resolution
PCI bus slot 1 C, D, A, B PCI bus slot 2 D, A, B, C PCI bus slot 3 A, B AGP slot First USB controller Second USB controller LAN controller Graphics processor SMBus AC'97 Audio English - 9 A26361-D1215-Z120-6-7419... -
Page 18: Settings With Switches And Jumpers
BIOS Setup must be disabled (in menu Security, the field Diskette Write must be set to Enabled). The floppy disk drive is write-protected. Floppy disks can be read, written and deleted (default setting). 10 - English A26361-D1215-Z120-6-7419... -
Page 19: Add-On Modules
3 = Location bank 1 for main memory 7 = PCI slots 1, 2 4 = Location bank 2 for main memory 8 = AGP slot / GPA slot The components and connectors marked are not necessarily present on the system board. English - 11 A26361-D1215-Z120-6-7419... -
Page 20: Installing And Removing Processors
The angled corner of the processor may be covered by the heat sink. In this case let yourself be guided by the marking in the rows of pins on the underside of the processor. Ê Push the lever back down until it clicks into place (5). 12 - English A26361-D1215-Z120-6-7419... -
Page 21: Upgrading Main Memory
At the same time flip the lateral holders upwards until the memory module snaps in place (2). Removing a memory module Ê Push the clips on the right and left of the compartment outward (1). Ê Carefully remove the memory module from the compartment (2). English - 13 A26361-D1215-Z120-6-7419... -
Page 22: Upgrading An Agp Screen Controller Or The Gpa Memory
5 V auxiliary voltage of at least 1 A. If the system board was not already incorporated in a device when you bought it you must check whether your power supply can provide the auxiliary voltage. You may find further information in the supplied description of the network board. 14 - English A26361-D1215-Z120-6-7419... -
Page 23: Replacing The Lithium Battery
Ensure that you insert the battery the right way round. The plus pole must be on the top! Ê Lift the contact (1) a few millimetres and remove the lithium battery from its socket (2). Ê Insert a new lithium battery of the same type into the socket (3). English - 15 A26361-D1215-Z120-6-7419... -
Page 24: Glossary
Super Video Graphic Adapter GMCH Graphics and Memory Controller Universal Serial Bus Graphics Performance Video Graphic Adapter Accelerator Inter Integrated Circuit Wake On LAN IAPC Instantly Available Power Managed Desktop PC Design I/O Controller Hub Intelligent Drive Electronics 16 - English A26361-D1215-Z120-6-7419...
