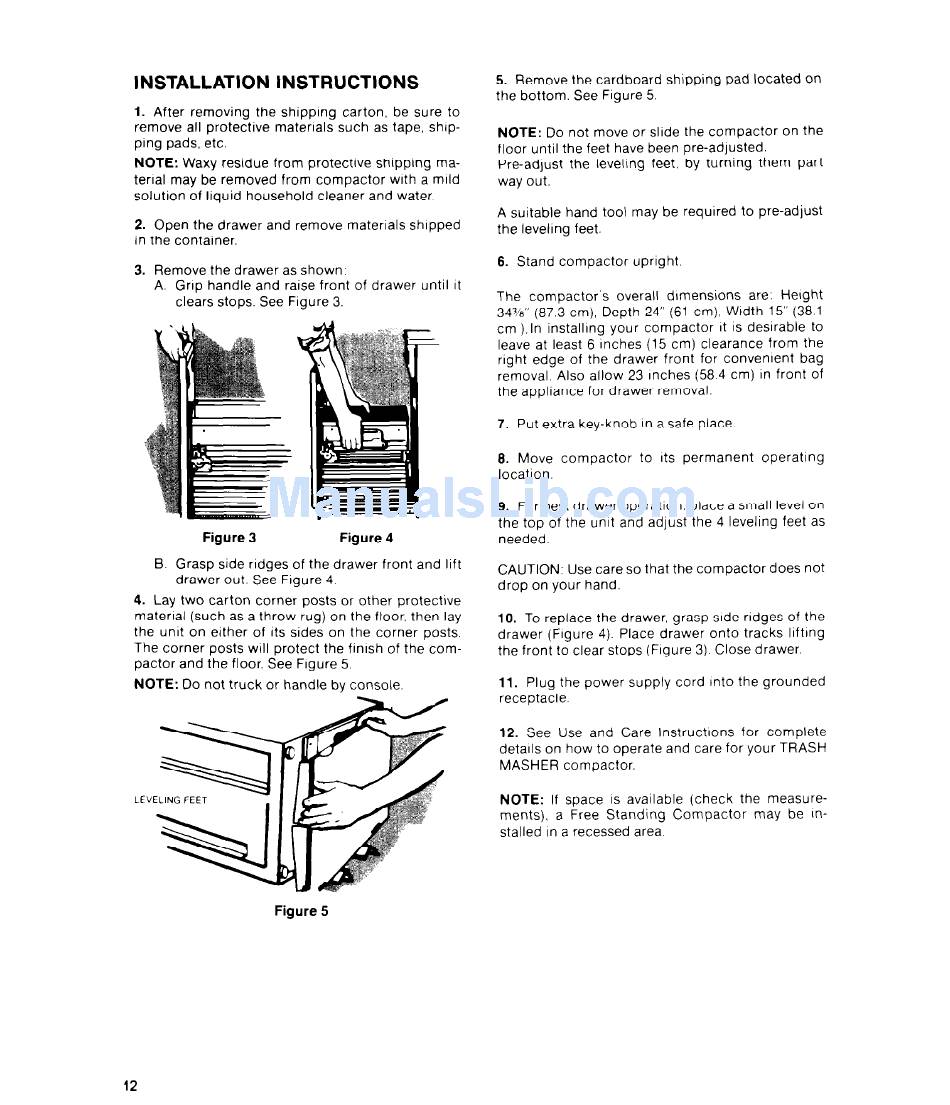

INSTALLATION
INSTRUCTIONS
1. After
removing
the shipping
carton,
be sure to
remove
all protective
materials
such as tape, ship-
ping pads, etc.
NOTE:
Waxy residue
from protective
shipping
ma-
terial
may be removed
from compactor
with a mild
solution
of liquid
household
cleaner
and water.
2. Open the drawer
and remove
materials
shipped
In the container.
3. Remove
the drawer
as shown:
A. Grip handle
and raise front
of drawer
until It
clears stops.
See Figure
3.
Figure
3
Figure
4
B. Grasp side ridges
of the drawer
front and lift
drawer
out. See Figure
4.
4. Lay two carton
corner
posts or other
protectrve
material
(such as a throw
rug) on the floor, then lay
the unit on either
of its sides on the corner
posts.
The corner
posts wtll protect
the finrsh of the com-
pactor
and the floor. See Figure
5.
NOTE:
Do not truck
or handle
by console.
LEVELING
FEET
5. Remove
the cardboard
shipping
pad located
on
the bottom.
See Figure
5.
NOTE:
Do not move or slide the compactor
on the
floor until the feet have been pre-adjusted.
Pre-adjust
the leveling
feet, by turning
them
part
way out.
A suitable
hand tool may be required
to pre-adjust
the leveling
feet.
6. Stand
compactor
upright
The
compactor's
overall
dlmensrons
are:
Herght
34%" (87.3 cm), Depth
24" (61 cm), Wtdth
15" (38.1
cm ).In installrng
your
compactor
It is desirable
to
leave at least 6 Inches
(15 cm) clearance
from
the
right edge of the drawer
front
for convenrent
bag
removal.
Also allow
23 Inches
(58.4 cm) in front
of
the appliance
for drawer
removal.
7. Put extra key-knob
in
a safe place
8. Move
compactor
to Its permanent
operating
location.
9. For best drawer
operation.
place a small level on
the top of the unit and adjust
the 4 leveling
feet as
needed
CAUTION:
Use care so that the compactor
does not
drop on your hand.
10. To replace
the drawer,
grasp
side ridges
of the
drawer
(Frgure
4). Place drawer
onto tracks
liftrng
the front to clear stops (Figure
3). Close drawer.
11. Plug the power
supply
cord Into the grounded
receotacle.
12. See Use and
Care
lnstructrons
for
complete
details
on how to operate
and care for your TRASH
MASHER
compactor.
NOTE:
If space
IS
available
(check
the measure-
ments),
a Free
Standing
Compactor
may
be In-
stalled
In a recessed
area.
Figure
5
12
