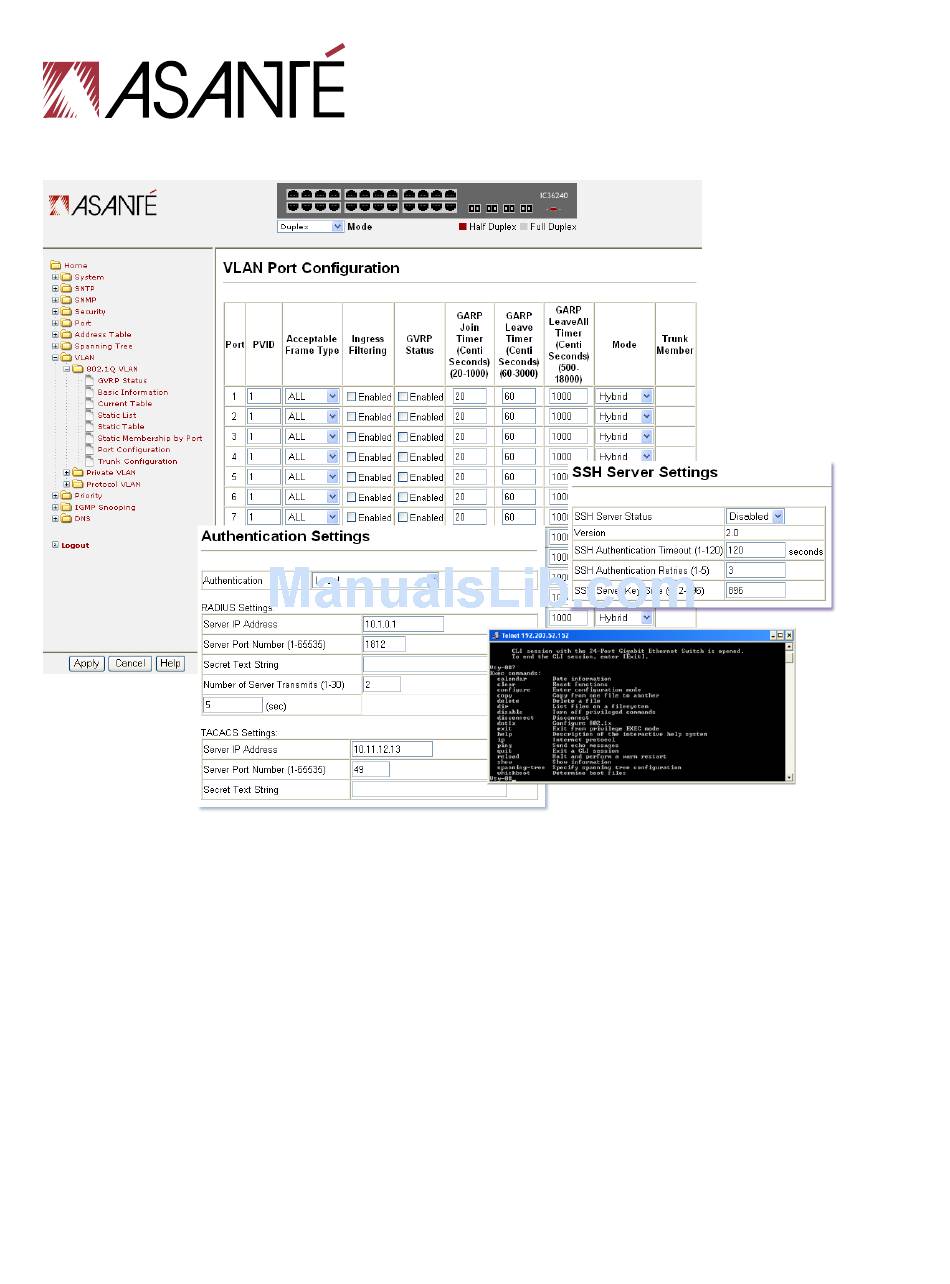

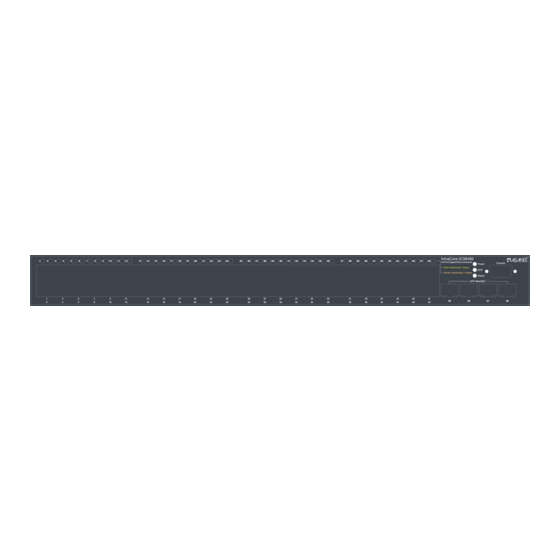

- Page 1 ® IntraCore 36000 Series Managed Gigabit Ethernet Switches Setup Guide...
-
Page 2: Setup Guide
IntraCore 36000 Series Managed Gigabit Ethernet Switches Setup Guide Asanté Technologies, Inc. 821 Fox Lane San Jose, CA 95131 SALES 800-662-9686 Home/Office Solutions 800-303-9121 Enterprise Solutions 408-435-8388 TECHNICAL SUPPORT 801-566-8991: Worldwide 801-566-3787: Fax www.asante.com/support support@asante.com [Default IP Address: 192.168.0.1] [Default username: root [Default password: Asante Copyright ©... -
Page 3: Table Of Contents
4.2 Fiber Optic SFP Devices..........................21 4.3 Interpting LEDs ...............................22 4.4 Connectivity Guidelines...........................23 4.5 Cable Labeling and Connection Records......................25 Chapter 5: Configuring the Switch..........................26 5.1 Connecting to the Switch ..........................26 5.2 Setting an IP Address .............................27 Asanté IntraCore 36000 Series Managed Gigabit Switches... - Page 4 Chapter 6: Understanding the Command Line Interface (CLI) ..................28 6.1 User Top (User EXEC) Mode..........................28 6.2 Privileged Top (Privileged EXEC) Mode ......................28 6.3 Global Configuration Mode ..........................29 6.4 Advanced Features Supported within the Command Mode ................31 6.5 Checking Command Syntax..........................32 6.6 Using CLI Command History...........................33 6.7 Using the No and Default Forms of Commands....................33 6.8 Using Command-Line Editing Features and Shortcuts ...................33...
-
Page 5: Chapter 1: Introduction
Chapter 1: Introduction The IntraCore 36000 Series Managed Gigabit Ethernet Switches are high-performance network switches used to reduce network congestion and application response times. The 24-port (IC36240) and 48-port (IC36480) have 10/100/1000BaseT ports and four combination ports used for sharing with SFP mini GBICs. The switches also have an SNMP-based management agent embedded on the main board. - Page 6 Fiber cable options using SFP ports: 1000BaseSX (MMF) up to 550 m 1000BaseLX (SMF) up to 5 km 1000BaseLH link up to 70 km 1.1.2 Expandability Provides support for 1000BaseSX, 1000BaseLX, 1000BaseLH, and 1000BaseT SFP transceivers 1.1.3 Performance Provides 255 port-based VLANs, 4K VLAN ID, private VLAN, 802.1v VLAN, GVRP, and IGMP snooping Transparent bridging Switching table with 16K MAC address entries with automatic learning and aging Store-and-forward switching...
-
Page 7: Switch Architecture
1.3 Network Management Options The IntraCore 36000 Series Managed Gigabit Ethernet Switches provide a management agent with both local and remote management. You can configure or monitor the switch using the embedded management software or by using SNMP applications. -
Page 8: Chapter 2: Network Planning
2.1 Switch Applications The IntraCore 36000 Series Managed Gigabit Ethernet Switches are designed to segment your network and provide a wide range of options in setting up network connections and linking VLANs. The switch can operate as a stand- alone network or in combination with other IntraCore switches in the backbone. -
Page 9: Network Aggregation Plan
1000BaseLX SFP can be used to connect to other buildings in a campus setting. For long-haul connections, a 1000BaseLH SFP transceiver can be used to reach another site up to 70 km away. The following figure illustrates the 24-port Gigabit Ethernet Switch connecting multiple segments with fiber cable. Asanté IntraCore 36000 Series Managed Gigabit Switches... - Page 10 Headquarters 1000=Yellow 100=Green 10=Flashing Green Link Power Console Diag Link 1000=Yellow 100=Green 10=Flashing Green 1000BASE-SX MMF 1000BASE-LX SMF (500 meters) (5 kilometers) Server Farm Remote Switch Remote Switch 1000=Yellow 100=Green 10=Flashing Green Link Power Console Diag Link 1000=Yellow 100=Green 10=Flashing Green 1000=Yellow 100=Green 10=Flashing Green 1000=Yellow 100=Green 10=Flashing Green Link...
-
Page 11: Configuration Considerations
The receptacle labeled “RPU” is for the optional Redundant Power Unit (RPU). The following illustration shows the receptacle for the IC36240. 100-240V~, 50-60Hz 2A DC IN 12V 8.5A The following illustration shows the receptacle for the IC36480. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 12: Chapter 3: Hardware Installation And Setup
36000 Series Managed Gigabit Ethernet Switch at your site. 3.1 Installation Overview Follow these steps to install the IntraCore 36000 Series Managed Gigabit Ethernet switch: Open the box and check the contents. For a complete list of the items included with the switch, see “Unpacking and Inspecting”... -
Page 13: Site Requirements
Circuit Overloading: Be sure that the supply circuit to the rack assembly is not overloaded. Grounding: Rackmounted equipment should be properly grounded. Particular attention should be given to supply connections other than direct connections to the mains. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 14: Preparing For Installation
Unpack the unit by removing the packing material and lifiting it from the protective enclosures. Visually examine the equipment and check the container for parts and accessories. You should have the following items: A 24- or 48-port IC 36000 Managed Gigabit Ethernet Switch Four adhesive foot pads A Bracket Mounting Kit... -
Page 15: Installing The Switch
4. Repeat the two previous steps on the other side of the switch. 5. Place the switch in the equipment rack. 6. Secure the switch by attaching the mounting brackets onto the equipment rack with the screws supplied with the unit. Asanté IntraCore 36000 Series Managed Gigabit Switches... - Page 16 Warning: Make sure you support the switch until all the mounting screws for each bracket are secured to the equipment rack. Failure to do so could cause the switch to fall, which may result in personal injury or damage to the switch.
-
Page 17: Installing An Optional Sfp Transceiver
“Interpreting LEDs” section in Chapter 4. The back panel contains a 12 VDC jack for redundant power (optional) and the primary power socket. Follow these steps to connect the switch. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 18: Ethernet Cabling
1. Use the supplied power cord and plug the female end directly into the receptacle located at the back of the device. 100-240V~,50-60HZ 2A 2. Plug the other end of the cord into a properly grounded electrical outlet. 3. Check the front-panel LEDs as the device is powered on to be sure the Power LED is lit. If not lit, check that the power cable is correctly plugged in. -
Page 19: Connecting To The Console Port
2 RXD (receive data) 5 SGND (signal ground) 5 SGND (signal ground) The serial port configuration requirements are as follows: Default Baud rate—auto-sensing (9.6 to 115K) Character Size—8 Characters Parity—None Stop bit—One Data bits—8 Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 20: Chapter 4: Connecting Network Devices
Chapter 4: Connecting Network Devices The switch is designed to interconnect multiple segments (or collision domains). It can be connected devices using optional SFP transceivers to network cards in PCs and servers, to hubs, routers or other switches. 4.1 Twisted-Pair Devices Each device requires an unshielded twisted-pair (UTP) cable with RJ-45 connectors at both ends. -
Page 21: Fiber Optic Sfp Devices
Warning: The lasers used to transmit signals over fiber optic cable are compliant with the requirements of a Class 1 Laser Product and in normal operation are safe. It is still recommended you not look directly at a transmit port. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 22: Interpreting Leds
1. Remove and keep the LC port’s rubber cover. When not connected, the rubber cover should be replaced to protect the optics. 2. Check that the fiber terminators are clean. You can clean the cable plugs by wiping them gently with a clean tissue or cotton ball moistened with a little ethanol. -
Page 23: Connectivity Guidelines
The Category 5e specification includes test parameters that are only recommendations for Category 5. When preparing existing Category 5 cabling for running 1000BaseT, a simple test of the cable installation is required to be sure that it complies with the IEEE 802.3ab standards. Asanté IntraCore 36000 Series Managed Gigabit Switches... - Page 24 4.4.2 1000 Mbps Gigabit Ethernet Cabling The following tables show cable types, maximum lengths, required connectors and bandwidth as applicable. 1000BaseT Gigabit Ethernet Cable Length Cable Type Maximum Length Connector Category 5, 5e, 6 100-ohm UTP 328 ft (100 m) RJ-45 1000BaseSX Gigabit Ethernet Cable Length Fiber Size...
-
Page 25: Cable Labeling And Connection Records
Use sequential numbers for cables that originate from the same equipment. Name racks to help differentiate among them. Label each piece of equipment. Display a copy of your equipment map, including keys to all abbreviations, at each equipment rack. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 26: Chapter 5: Configuring The Switch
Passwords can consist of up to eight alphanumeric characters and are case sensitive. To prevent unauthorized access to the switch, set the passwords as follows: 1. Open the console interface and type the default user name root and password Asante to access the Privileged Exec level. -
Page 27: Setting An Ip Address
2. At the interface-configuration mode prompt, use one of the commands in the following table: Command Purpose ip address dhcp Obtains IP settings using DHCP ip address bootp Obtains IP settings using BOOTP ip dhcp restart client Starts broadcasting service requests Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 28: Chapter 6: Understanding The Command Line Interface (Cli)
Chapter 6: Understanding the Command Line Interface (CLI) The switch utilizes Command Line Interface (CLI) to provide access to several different command modes. Each command mode provides a group of related commands. After logging into the system, you are automatically at the privileged (privileged EXEC) mode. At this level, you can perform general tasks and access the global configuration mode to setup and maintain specific modes (for example, interface, IP and VLAN configuration). -
Page 29: Global Configuration Mode
Lists the global configuration commands. Use one of the following commands to exit global configuration mode and return to privileged EXEC mode: Command Purpose Exit Any of these command exits and returns to the previous mode. Ctrl-Z Asanté IntraCore 36000 Series Managed Gigabit Switches... - Page 30 To list the commands available in global configuration mode, enter a question mark (?) at the prompt, as shown in the following example. Enter a question mark (?) after a command to see all the options for that command. Switch# configure Switch(config)# ? access-list Access lists...
-
Page 31: Advanced Features Supported Within The Command Mode
(e.g. 'show ?') and describes each possible argument. 2. Partial help is provided when an abbreviated argument is entered and you want to know what arguments match the input (e.g. 'show br?'). Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 32: Checking Command Syntax
As described in the help command output, you can enter a partial command name and a question mark (?) to obtain a list of commands beginning with a particular character set. Example of Context Sensitive Help The following illustrates how the context-sensitive help feature creates an access list from the configuration mode. Enter the letters “co”... -
Page 33: Using Cli Command History
Move the cursor to the end of the command line. Press Esc B Move the cursor back one word. Press Esc F Move the cursor forward one word. Note: The arrow keys function only on ANSI-compatible terminals such as VT100s. Asanté IntraCore 36000 Series Managed Gigabit Switches... - Page 34 6.8.2 Completing a Partial Command Name To have the system complete an entry, press the Tab key. If the keyboard does not have a Tab key, press Ctrl-I. The following example shows typing the letters conf and using Tab key, to complete the command: Switch# conf<Tab>...
- Page 35 6.8.8 Controlling Capitalization To toggle between uppercase and lowercase letters, use the following command: Keystrokes Purpose Press Esc C Capitalize at the cursor. Press Esc C or Alt-C again to return to lowercase letters. Asanté IntraCore 36000 Series Managed Gigabit Switches...
-
Page 36: Appendix A: Basic Troubleshooting
Appendix A: Basic Troubleshooting In the event that the switch does not operate properly, follow the troubleshooting tips below. If you need more help, contact Asanté’s technical support at www.asante.com/support. A.1 Diagnosing Switch Indicators Refer to the following troubleshooting chart for information about the diagnostic LEDs. -
Page 37: In-Band Access
Caution: The management agent can accept up to four simultaneous Telnet sessions. If you are at maximum number of sessions, an additional Telnet connection will not be able to log into the system. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 38: Appendix B: Specifications
Appendix B: Specifications The sections below list the features and product specifications for the IntraCore 36000 Series Managed Gigabit Ethernet switches. Physical Characteristics Ports IC36240: 24 10/100/1000BaseT, with auto-negotiation; 4 Combination Ports (RJ- 45/SFP), 1000 Mbps only IC36480: 48 10/100/1000BaseT, with auto-negotiation; 4 Combination Ports (RJ-... - Page 39 Telnet, HTTP or SNMP manager. Software loading TFTP Standards IEEE, ISO, IEC IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3z and 802.3ab Gigabit Ethernet IEEE 802.1D (Bridging) IEEE 802.3x full-duplex flow control ISO/IEC 8802-3 Asanté IntraCore 36000 Series Managed Gigabit Switches...
- Page 40 Compliances Emissions IC36240: FCC Class B IC36480: FCC Class A CE Mark Class A VCCI Safety CB (IEC 60950), CSA Setup Guide...
-
Page 41: Appendix C: Cables And Pin Assignments
Transmit Data plus (TD+) Receive Data plus (RD+) Transmit Data minus (TD-) Receive Data minus (RD-) Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) 4, 5, 7, 8 Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 42: Pin Assignments For 1000Baset Pin
Note: The “+” and “-” signs represent the polarity of the wires that make up each wire pair. C.1.2 Straight-Through Wiring If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires must be straight-through. -
Page 43: Cable Testing For Existing Category 5 Cable
TIA 568-B allows the use of 50/125 micron multimode optical fiber in both the horizontal and backbone in addition to the types listed above. All optical fiber components and installation practices must meet applicable building and safety codes. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 44: Appendix D: Fcc Compliance And Warranty Statements
Appendix D: FCC Compliance and Warranty Statements D.1 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 45: Intracare Warranty Statement
This warranty gives you specific legal rights, and you may have other rights, which vary from jurisdiction to jurisdiction. Asanté IntraCore 36000 Series Managed Gigabit Switches... -
Page 46: Appendix E. Online Warranty Registration
Appendix E. Online Warranty Registration Please register the switch online at www.asante.com/support/warranty/index.html. By doing so, you’ll be entitled to special offers, up-to-date information, and important product bulletins. You may also register the switch by returning the following card by mail.
