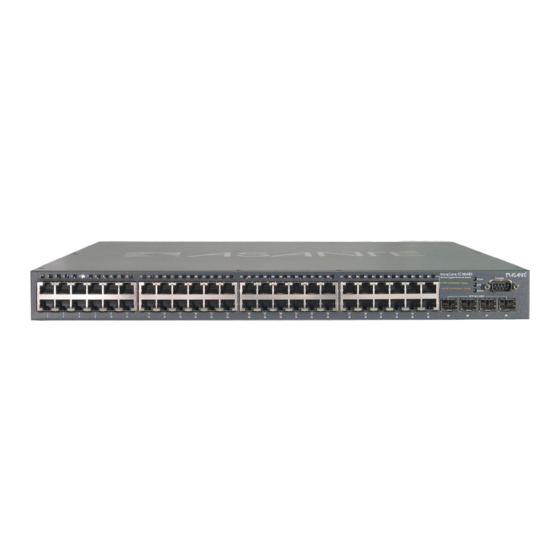

Asante IntraCore 36480 Specifications

Asante IntraCore 36480 Specifications

48-port managed gigabit ethernet switch

Advertisement

Quick Links

IntraCore
36480
®
48-port Managed Gigabit Ethernet Switch
Streamline your network, reduce network congestion and improve
application response times by replacing legacy 10/100 Fast Ethernet hubs
and switches with Asanté's new high-density IntraCore 36480 switches.
These new high-density 10/100/1000BaseT edge switches are the building
blocks for enterprises and mid-sized organizations.
All-Gigabit Performance. With Gigabit speeds on all 48 ports, you'll have
not only 10x more bandwidth, but also the ability to manage traffic flows.
Use rate limiting to proactively guard against congestion caused by a small
number of users saturating network bandwidth. With full support for
data/voice/video over Ethernet/IP, you'll be running VoIP and IP
multicasting with IGMP.
For greater bandwidth and improved resiliency, connect up to 8 ports to
form a logical 8 Gbps trunk. A total of 8 static (compatible with Cisco
EtherChannel) or dynamic (IEEE 802.3ad link aggregation control protocol)
trunks are supported.

Advertisement

loading
Need help?

Need help?

Do you have a question about the IntraCore 36480 and is the answer not in the manual?

Questions and answers

Summary of Contents for Asante IntraCore 36480

  • Page 1 Streamline your network, reduce network congestion and improve application response times by replacing legacy 10/100 Fast Ethernet hubs and switches with Asanté’s new high-density IntraCore 36480 switches. These new high-density 10/100/1000BaseT edge switches are the building blocks for enterprises and mid-sized organizations.
  • Page 2 For larger installations, with the available IntraCore Management Utility (sold separately), swiftly manage hundreds of IntraCore switches from a single Microsoft Windows-based application. Automatically discover compatible Asanté switches and schedule tasks (firmware updates, configuration file upload/download or even reset) for one switch or a group of switches. asante.com/intracore...
  • Page 3 Cisco’s TACACS+ allows a separate access servers to independently provide authentication, authorization and accounting (AAA). The request packet may be encrypted (for better security) or left unencrypted (to ease debugging). asante.com/intracore...
  • Page 4: Specifications

    Password, IP address (5 entries), secure shell (SSH v2) and HTTPS Mirror: Monitor any port from any port (at the same speed) Internal: Thermal plus system events (memory allocation, start-up, traps, watch dog timer, buffer, stack) Firmware: Dual banks of operational and configuration code saved to flash memory asante.com/intracore...
  • Page 5 (port/trunk, VLAN), IP multicast registration (VLAN, multicast IP address) and IGMP member port (port/trunk, VLAN, multicast IP, port, trunk) Domain Naming Service (DNS): Config (default name, add/remove domain name, add/remove name server IP), static host (name, 1–8 IP addresses) and cache status asante.com/intracore...
  • Page 6 12.9 lbs (5.8 Kg) Case: Metal finished in Asanté Gray; desktop or rack mounting (kit included) Operating Temperature: 32º to 104º F (0º to 40º C) Relative Humidity: 10% to 90% non-condensing Power: Internal switching, 100-240 VAC, 50/60 Hz, maximum 150 watts asante.com/intracore...
  • Page 7: Ordering Information

    * For international part numbers, please refer to the Asanté price list. Asanté Technologies, Inc. · 821 Fox Lane, San Jose, CA 95131 USA · Phone 408.435.8388 · Website www.asante.com © 2004 Asanté Technologies, Inc. All rights reserved. Asanté Technologies and IntraCore are registered trademarks of Asanté Technologies, Inc. Auto-Uplink is a trademark of Asanté Technologies. All other names may be trademarks or registered trademarks of their respective owners.
