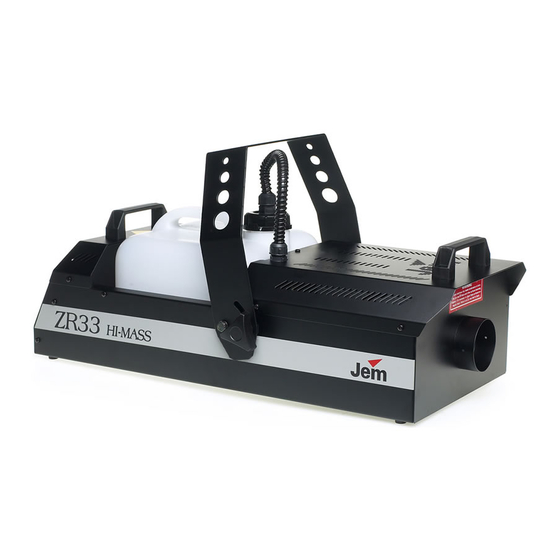

- Page 1 USER GUIDE VERSION 1.5 ZR33 HI-MASS ZR33 HI-MASS ZR33 HI-MASS Martin Professional A/S, Olof Palmes Allé,DK-82000 Aarhus N Phone: +45 87 40 00 00, Internet: www.martin.dk MARTIN MANUFACTURING (UK) PLC...
- Page 2 Super Note: The JEM warranty will be void if any fluid other then JEM approved fluid is used. If other fluids are used there could be serious damage to the machine and the fluid may not of been tested for use in public areas.
- Page 3 ZR33-DMX USER GUIDE ZR33-DMX USER GUIDE User Guide Index Introduction Safety Machine Layout Getting Started Using The Remote Control Using DMX 512 Using The Slave Socket The ZR33 Flying Kit The ZR33 Ducting Kit Trouble Shooting How To Contact Us Note: Martin Manufacturing (UK) reserves the right to modify or change the specification of this product without prior notice.
- Page 4 The JEM ZR33 ducting kit enables the user to duct the smoke from the away from the ZR33. machine to an area where the effect is required. This is done by using the JEM ducting adaptor and a length of 100 mm (4“) ducting pipe. The length can be FEATURES anything from a couple of metres up to 20 metres or further.
- Page 5 ZR33-DMX USER GUIDE ZR33 Flying Kit Safety Always use a JEM approved fluid, other fluids could be dangerous and could cause damage to the machine. Always check the voltage is correct for use with the machine, the voltage Hanging Bracket Safety Strap setting is printed on the serial label.
- Page 6 ZR33-DMX USER GUIDE ZR33-DMX USER GUIDE Using The Slave Socket Machine Layout ZR33 has the ability to connect machines together using a XLR lead and Fluid container then operating all of the machines with one controller. This is ideal when there is a need for lots of smoke and there is no DMX to operate the machines.
- Page 7 Check that the mains power supply matches the voltage and compliant interface as standard, giving the user the possibility of controlling the smoke frequency on the serial number label. If not, contact your JEM dealer for and light from a single source. The...
- Page 8 Maximum = 18 seconds range or varying times. The x8 timer value gives even greater flexibility when a longer delay and run time are needed. An extension lead is available from JEM for using the controller out of the machine. PAGE 6...
