Electrolux EKG 6700 X Instruction Booklet

Electrolux EKG 6700 X Instruction Booklet

Gas cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

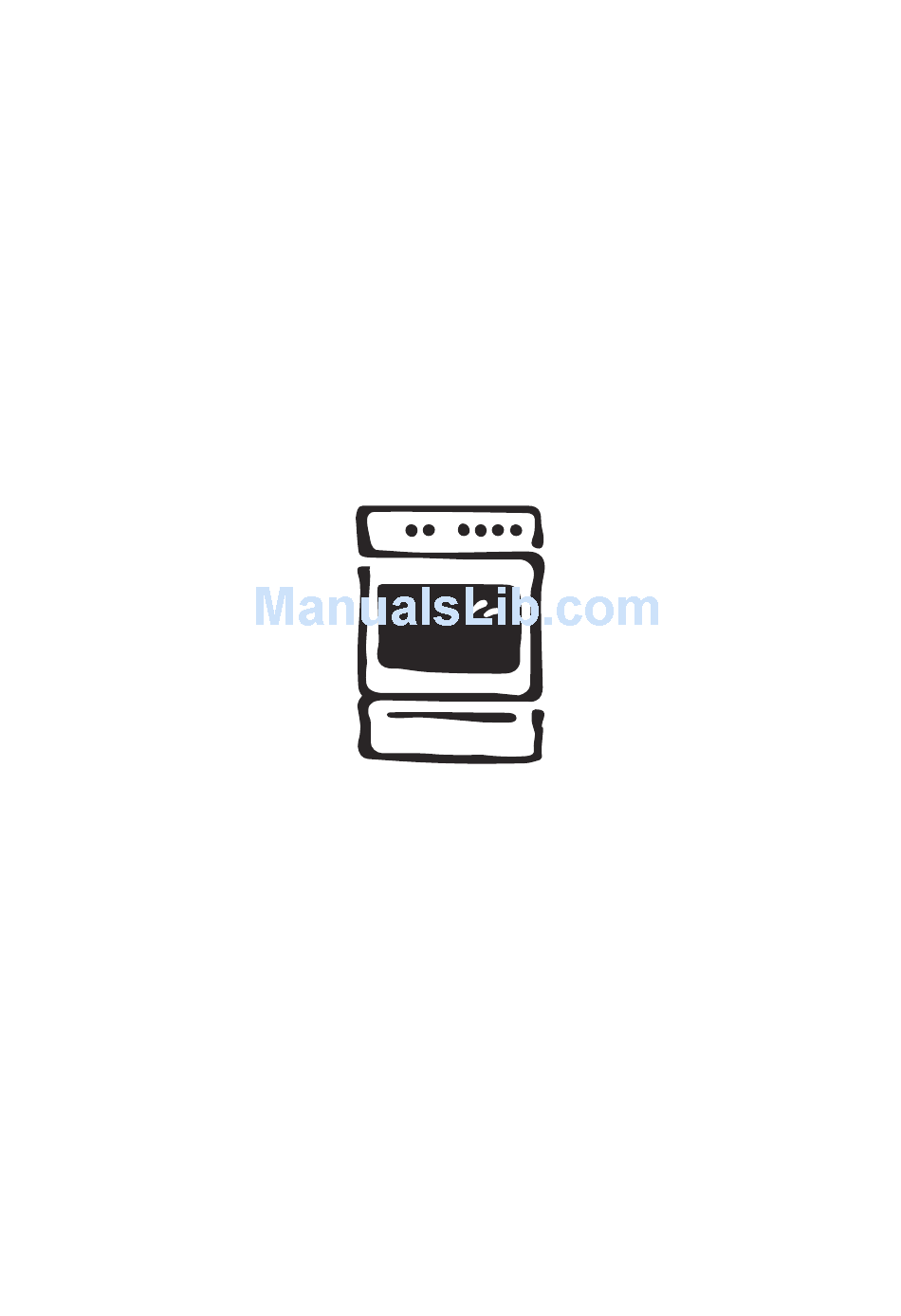

Gas Cooker
INSTRUCTION BOOKLET
Model EKG 6700 X
ID-PH-VN-TH
35692-0511

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EKG 6700 X

Summary of Contents for Electrolux EKG 6700 X

  • Page 1 Gas Cooker INSTRUCTION BOOKLET Model EKG 6700 X ID-PH-VN-TH 35692-0511...

  • Page 2: Important Safety Information

    Important safety information You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact your local Service Force Centre. Installation • The work of installation must be carried out by window or increasing the extractor speed. •...

  • Page 3: Table Of Contents

    Contents For the User For the Installer Important safety information Instructions for the Installer Control panel Technical data The gas hob controls Installation The gas oven and gas grill control Gas connection Before the first use of the appliance Electrical connection Using the gas oven Hints and Tips Gas oven cooking chart...

  • Page 4: Control Panel

    Control panel 1. Oven light/grill turnspit push button 2. Back left burner control knob (semi-rapid) 3. Front left burner control knob (ultra-rapid triple crown) 4. Front right burner control knob (auxiliary) 5. Back right burner control knob (semi-rapid) 6. Gas oven and gas grill control knob 7.

  • Page 5: The Gas Hob Controls

    The gas hob controls Control knobs on the gas hob The knobs for using the gas hob of the cooker are found on the control panel. The regulation knobs could be turned in anti-clockwise direction until the small flame symbol, and vice-versa for the larger symbol. No gas supply Maximum gas supply Minimum gas supply...
  • Page 6 Using the wok stand A wok stand is provided to enable you to use a round bottomed wok on the hob.The wok stand must only be used on the triple crown burner and should not be used with any other type of wok or pan. When fitting the wok stand, ensure the recesses in the frame fit securely onto the bars of the pan supports, as shown in the picture.

  • Page 7: The Gas Oven And Gas Grill Control

    The gas oven and gas grill control Oven Function Control Knob Oven switched off 150-240 150-240 150-240 150-240 150-240 Range of temperature regulation for gas oven. Grill and Rotisserie - When selecting this cooking function, the heat comes only from the top element (gas grill).

  • Page 8: Before The First Use Of The Appliance

    Before the first use of the appliance Before using the appliance, remove all packaging, both inside and outside the appliance, including the advertising labels and any protective film. Before cooking for the first time, carefully wash the oven accessories. Before first use, the oven should be heated without food. During this time, an unpleasant odour may be emitted.

  • Page 9: Using The Gas Oven

    Using the gas oven Always cook with the oven door closed. When cooking with the oven, the cover must be kept open to avoid overheating. Gas oven safety device The gas oven features a a safety device (“thermocouple”); if for any reason the flame should extinguish, the device will stop the gas flow.

  • Page 10: Hints And Tips

    Hints and Tips Always cook with the oven door closed. Stand clear when opening the drop down oven door. Do not allow it to fall open - support the door using the door handle, until it is fully open. The oven has four shelf levels. The shelf positions are counted from the bottom of the oven as shown in the diagram.

  • Page 11: Condensation And Steam

    Condensation and Steam The oven is supplied with an exclusive system which produces a natural circulation of air and the constant recycling of steam. This system makes it possible to cook in a steamy environment and keep the dishes soft inside and crusty outside. Moreover, the cooking time and energy consumption are reduced to a minimum.

  • Page 12: Gas Oven Cooking Chart

    Gas oven cooking chart This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your individual requirements. Only experience will enable you to determine the correct setting for your personal requirements. Cooking times do not include pre-heating time.A short oven pre-heating (about 10 minutes) is neces- sary before any cooking.

  • Page 13: Using The Gas Grill

    Using the gas grill Grilling must be carried out with the oven door closed. When cooking with the grill, the cover must be kept open to avoid overheating. Gas grill safety device The gas grill features a safety device (“thermocouple”); if the flame should extinguish for any reason, the device will stop the gas flow.
  • Page 14 Hints and Tips Most foods should be placed on the grid in the grill pan to allow maximum circulation of air and to lift the food out of the fats and juices. Food such as fish, liver and kidneys may be placed directly on the grill pan, if preferred.

  • Page 15: Cooking With The Turnspit

    Cooking with the turnspit — Place the spit-support frame into the second runner from the bottom of the oven (see diagram). — Pierce and secure well food on the spit. — Pour some water in the dripping pan and place it on the first shelf level.

  • Page 16: Maintenance And Cleaning

    Maintenance and Cleaning Before any maintenance or cleaning can be carried out, you must DISCONNECT the cooker from the electricity supply. This appliance cannot be cleaned with steam or with a steam cleaning machine. The Hob Top The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool.

  • Page 17: Cleaning The Oven

    Cleaning the oven The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan. Cleaning materials Before using any cleaning materials on your oven, check that they are suitable and that their use is recommended by the manufacturer.

  • Page 18: Oven Shelves

    Oven Cavity The enamelled oven cavity is best cleaned whilst the oven is still warm. Wipe the oven over with a soft cloth soaked in warm soapy water after each use. From time to time it will be necessary to do a more thorough cleaning, using a proprietary oven cleaner.

  • Page 19: Replacing The Oven Light

    Replacing the Oven Light Disconnect the appliance from the electricity supply. If the oven bulb needs replacing, it must comply with the following specifications: - Electric power: 15 W/25 W, - Electric rate: 230V (50 Hz), - Resistant to temperatures of 300°C, - Connection type: E14.
  • Page 20 Lid cleaning The crystal lid can be dissasembled to allow a better cleaning (see picture). Clean the crystal lid only with warm water and avoid the use of rough cloths or abrasive substances. After a proper cleaning, carefully reposition the lid into its hinges.

  • Page 21: Something Not Working

    Something not working If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Centre. SYMPTOM SOLUTION " " " " " # # # # # The gas oven burner or the gas grill burner do not Check that the oven is switched on at the wall.

  • Page 22: Instructions For The Installer

    Instructions for the Installer Technical Data Rear left burner (semi-rapid) 2000 W Appliance Class 2 sub class 1 and Class 1 Front left burner (ultra-rapid triple crown) 4000 W APPLIANCE CATEGORY: Rear right burner (semi-rapid) 2000 W APPLIANCE GAS SUPPLY: LPG 28-30/37 mbar Front right burner (auxiliary) 1000 W...

  • Page 23: Installation

    Installation This appliance cannot be positioned on a base. The following instructions are meant for a qualified installer, in order that the operations of installation, regulation, and service are executed according to the existing regulations. Before using the unit, take off the special protective layer which protects the stainless steel and anodyzed tin parts.
  • Page 24 Feet Assembly Before installing the cooker, it is necessary to assemble the supplied feet. 1. Remove the crystal lid, the hob pan supports, the burner caps and crowns and the oven accessories. 2. Carefully lean the cooker on its back, paying attention not to cause any damage.

  • Page 25: Gas Connection

    Gas connection Gas connection must be carried out according to the rules in force. The manufacturing company release the unit, once tested, adjusted for the kind of gas stated on the rating plate located on the back of the range, next to connection pipe.

  • Page 26: Electrical Connection

    Electrical connection Any electrical work required to install this cooker should be carried out by a qualified electrician or competent person, in accordance with the current regulations. The unit is preset to work with a voltage of single phase 230 V. Before making the connection make sure that: —...
  • Page 28 02/06...
