K40 CALIBRE DL Installation Instructions Manual

Unlike other radar detectors and aftermarket accessories, the K40 Calibre will not interfere with the vehicle's
NOTE:
complex electronic systems. The K40 Calibre has its own independent Bluetooth
unique address.
Warning LED(s)
1. Consult with vehicle owner about LED location. For best visibility, choose a
mounting location as close to the vehicle gauges as possible.
2. Check for proper clearance behind the area where the LED(s) will be
installed (approximately 1") and drill a 3/16" hole in the chosen location
for the LED(s). CALIBRE DL models require the mounting of a second
LED for rear radar warnings.

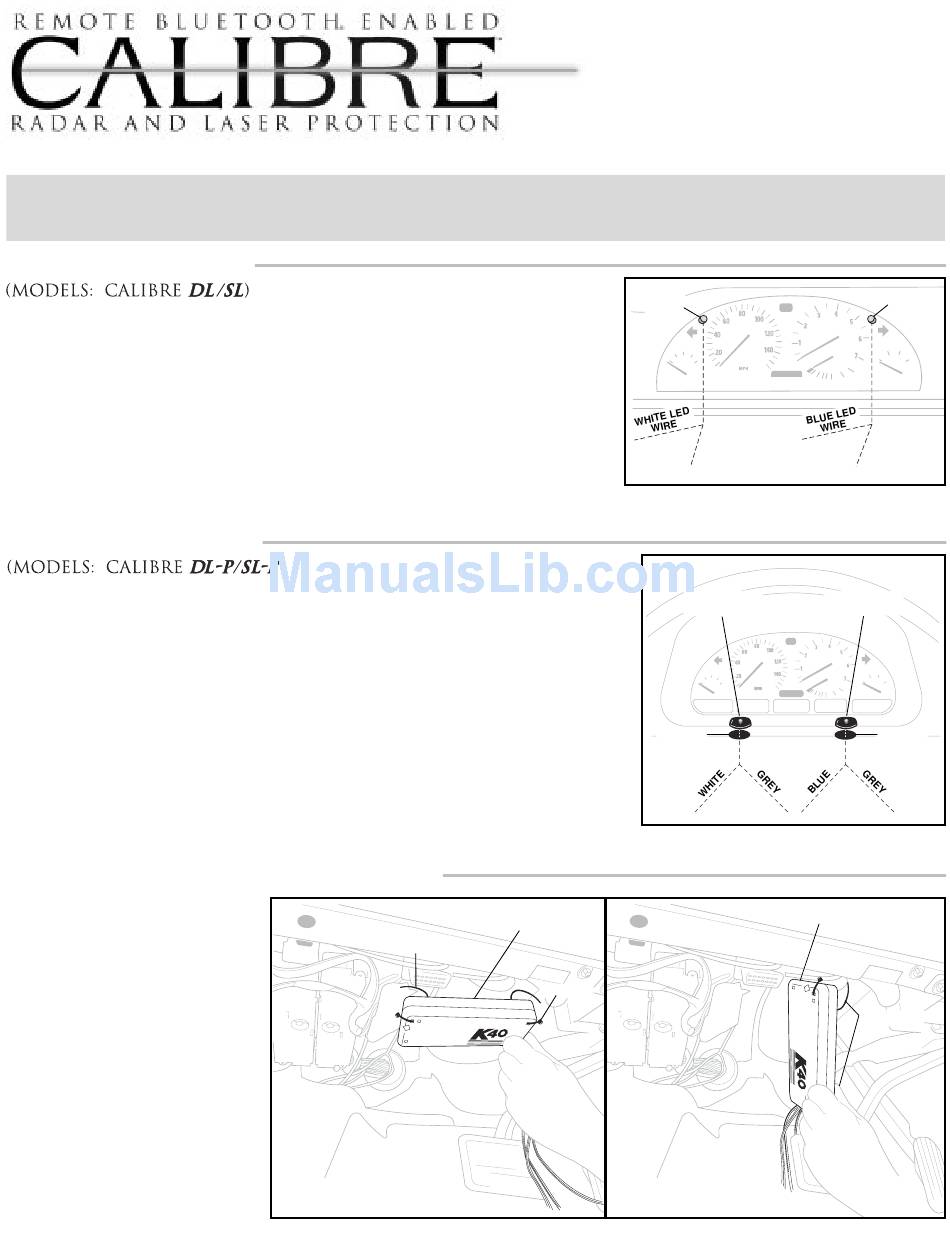

3. Route all of the LED wires under the dash per DIAGRAM A1.
Warning Pod(s)
1. Consult with vehicle owner about Pod location. For best visibility, choose a
mounting location as close to the vehicle gauges as possible.
2. Before mounting the Warning Pod(s), clean both the Pod surface and
desired mounting location on the dash with rubbing alcohol.
3. Position the Warning Pod(s) on the dash with the provided double stick
"O" ring tape. CALIBRE DL-P models require the mounting of a second
Pod for rear radar warnings.
4. Route the black cable(s) from the Warning Pod(s) through or under the
dash per DIAGRAM B1.
Interior Network Module
1. Remove the under dash
panel and mount the Interior
Network Module using the
supplied cable ties to the
existing factory wire looms,
brackets, or other support
structures as per DIAGRAM
C1. The Interior Network
Module can be mounted hor-
izontally or vertically under
the dash.
2. Connect the LED, ignition-on,
and ground wires per the
separate enclosed block
diagram sheet.
WIRE TIE
HORIZONTAL MOUNT
Inst
Inst
Instr
Instr
& R e c o m m e n d e d
FRONT
ALERT
GREY LED WIRE
INTERIOR NETWORK
MODULE
WIRE TIE
DIAGRAM C1
all a ti o
all a ti o
uc ti o
uc ti o
P r o c e d u r e s
® network with its own
GREY LED WIRE
DIAGRAM A1
FRONT
WARNING POD WARNING POD
"O" RING
TAPE
DIAGRAM B1
INTERIOR NETWORK
MODULE
VERTICAL MOUNT
n
n
ns
ns
REAR
ALERT
REAR
"O" RING
TAPE
WIRE TIES
