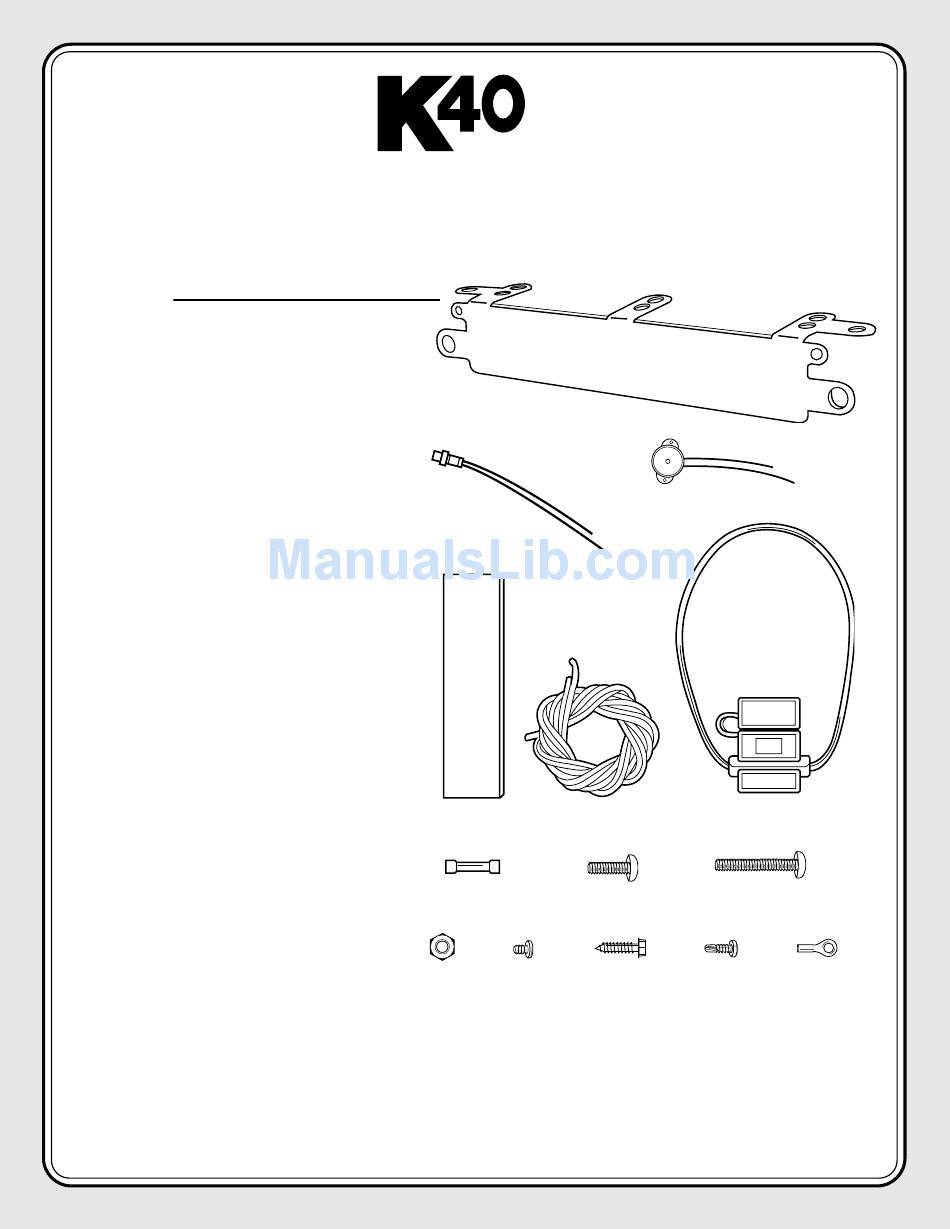

Parts Kit includes the following:
A- (1) Universal Mounting Bracket
B- (1) Red L.E.D. Laser Alert Light
C- (1) Piezo Beeper w/ "O" Ring Tape
D- (1) Double Stick Tape Strip
E- (2) 36" - 20 ga. Grounding/Power Wires
F- (1) 3 AMP Fuse Assembly
G- (4) Barrel Connectors
H- (2) 1" - 1/4" x 20 Nylon Bolts
I- (2) 1 1/2" - 1/4" x 20 Nylon Nuts
J- (8) 1/4" x 20 Nylon Bolts
K- (2) #6 x 1/4" Screws
L- (3) #10 x 3/4" Screws
M- (1) 1/2" Self Tapping Screw
N- (1) 22-16 ga. Ring Terminal
When installing the Laser DefuserPlus outside of the system's license plate frame, the unit should be mounted as
close to the center of the vehicle as possible, without obstruction. The mounting location of the Laser DefuserPlus
is important, as police laser gun operators are trained to aim for the flat, reflective surface of a targeted vehicle's
front license plate. In states that do not require a front license plate, operators will traditionally aim for the front,
center of the vehicle. This procedure allows the operator to effectively "bounce" the laser signal back to the gun
to calculate the vehicle's speed.
