2 0 0 0 / 1 0 0 0
WARNING & BI-COLOR LED(S)
(MODELS: K40-2000/1000)

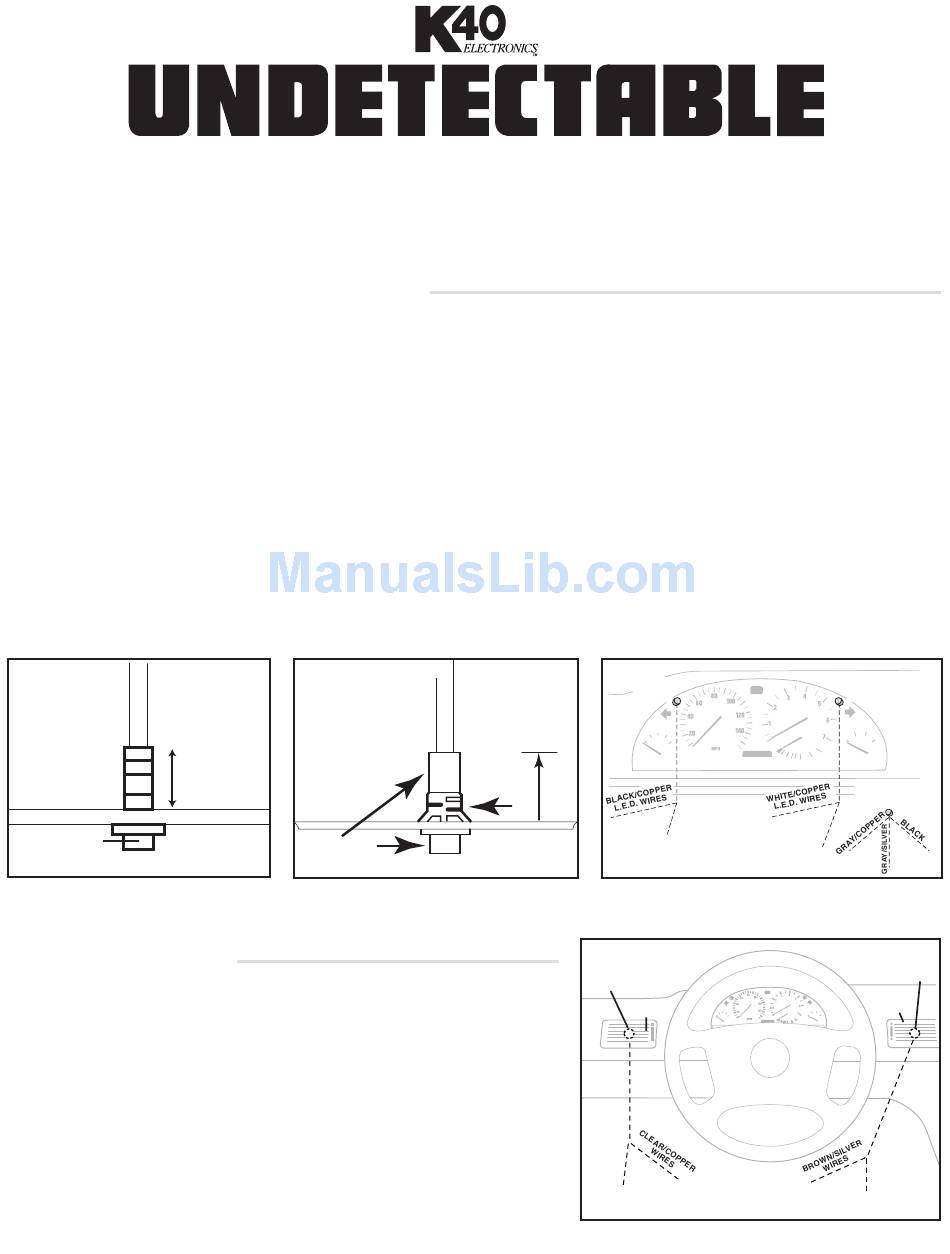

1. Consult with vehicle owner about LED location. For best visibility, choose a mounting location as close to the vehicle
gauges as possible.
2. Check for proper clearance behind the area where the LED(s) will be installed (approximately 1") and drill a 3/16" hole
in the chosen location for the LED(s). K40-2000 models require the mounting of a second LED for rear radar warnings
(see diagram A1).
3. If using the optional bi-color city/highway LED, choose a mounting location in the dashboard area that is below the
driver's line of sight.
4. Check for proper clearance behind the area (approximately 1"), and drill a 19/64" hole for the bi-color LED location.
Insert the LED into the drilled location and fasten it in place with the provided barrel fastener (see diagram A2).
5. Route all LED wires under the dash per diagram A3, and connect according to the separately enclosed block
wiring diagram.
1"
RED ALERT LED
DIAGRAM A1
PIEZO SPEAKERS
(MODELS: K40-2000/1000)
1. Use the provided double stick "O" ring tape to mount the piezo
speakers.
2. For maximum audio output and concealment, mount the front
piezo speaker in the driver's left air vent. Mount the rear piezo
speaker in the driver's right air vent.
3. Route the piezo speaker zip cord wires through or under the dash
and connect according to the separately enclosed block wiring
diagram (see diagram B1).
Installation Instructions
Installation Instructions
& Recommended Pr ocedures
BI-COLOR LED
DIAGRAM A2
M O D E L S
FRONT
ALERT
BARREL
1"
FASTENER
BLACK/SILVER
L.E.D. WIRES
FRONT PIEZO
SPEAKER
LEFT AIR
VENT
CLEAR/SILVER
WIRES
REAR
ALERT
BI-COLOR
L.E.D.
WHITE/SILVER
L.E.D. WIRES
DIAGRAM A3
REAR PIEZO
SPEAKER
RIGHT AIR
VENT
BROWN/COPPER
WIRES
DIAGRAM B1
