K40 Calibre Specifications

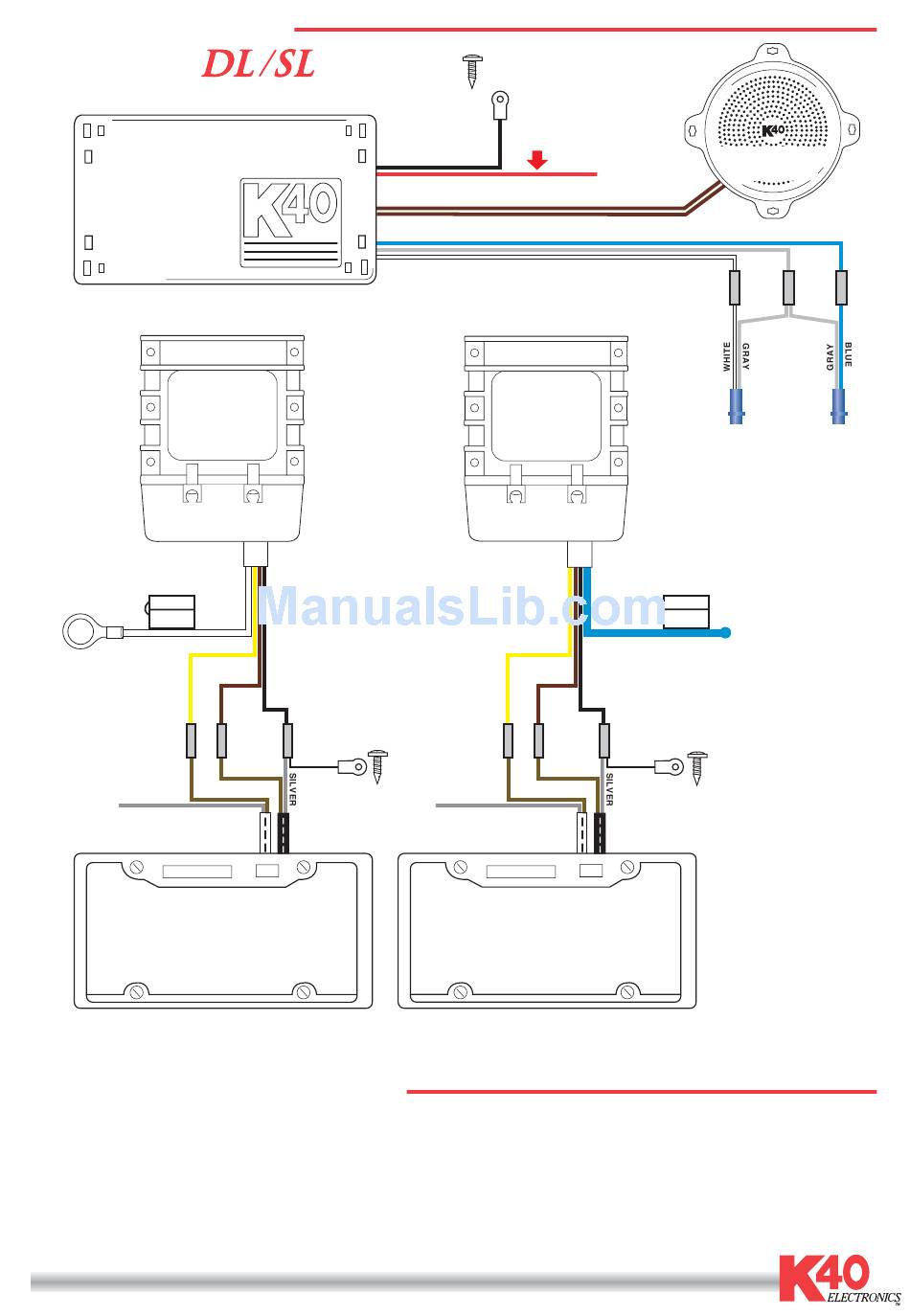

BLOCK DIAGRAM
CALIBRE
INTERIOR
NETWORK
MODULE
FRONT
+12 VOLT
FUSE
BATTERY
CONNECTION
OR IGNITION
SOURCE
1AMP
WHITE
YELLOW*
SILVER (NOT USED)
FRONT LASER DEFUSER
(OPTIONAL)
IGNITION AND GROUND
1. Use a test meter to locate an ignition on source for the Interior Network Module with +12 volts when
ignition key is both on and cranking.
2. Connect the black wire to a solid chassis ground using the provided ring terminal and silver self-
tapping screw.
3. Radar receivers may be connected to either a +12 volt ignition on source or +12 volt constant
battery source.
44586-1 4/06
RECEIVER
CABLE
BROWN*
BLACK
COPPER
COPPER
CLEAR BLACK
ZIP CORD ZIP CORD
GROUND
#8 X 1/2" TEK
*NOTE: THE RED WIRE
SHOULD BE CONNECTED
TO A MINIMUM 16 GAUGE
+12 VOLT IGNITION WIRE.
BLACK
BROWN
BLUE
WHITE
REAR
RECEIVER
CABLE
YELLOW*
BROWN*
GROUND
COPPER
#8 X 1/2" TEK
COPPER
SILVER (NOT USED)
CLEAR
ZIP CORD
REAR LASER DEFUSER
(OPTIONAL)
AMPLIFIED
IGNITION
RED
SPEAKER
SWITCHED
+12 VOLTS
FRONT
RADAR
LED
FUSE
CONNECTION
1AMP
BLUE
BLACK
GROUND
#8 X 1/2" TEK
BLACK
ZIP CORD
*THE YELLOW AND BROWN
RADAR RECEIVER WIRES
ARE USED TO CONNECT TO
THE OPTIONAL LASER
DEFUSER. IF NO LASER
DEFUSER IS BEING
INSTALLED WITH THE
RADAR RECEIVER (FRONT
AND/OR REAR), THE YEL-
LOW AND BROWN WIRES
WILL NOT BE USED.
GRAY
REAR
RADAR
LED
(CALIBRE DL
model only)
+12 VOLT
BATTERY
OR IGNITION
SOURCE
