Defuser EX
The
system is ideal for small to mid-size vehicles, and comes packaged in an ordinary looking
license plate frame. It may be installed with or without the license plate frame as needed.
Defuser EX2
The
is not used on the vehicle. The system includes two separate Defuser modules with no license plate frames.
LASER DEFUSER EX
(FRONT LICENSE PLATE MOUNT WITH FRAME)
1. Remove the mounting bolts and any existing frame or cover from the license plate. Remove license plate.
2. Position the Laser Defuser EX around the existing front license plate and mount it against the factory license
plate bracket. Use the existing mounting bolts or K40 supplied nylon bolts to secure the Laser Defuser EX
frame and license plate to the bracket.
On vehicles that have only one set of bracket mounting holes, it is recommended that the Laser
NOTE:
Defuser EX and the license plate be bolted together to eliminate any vibration.

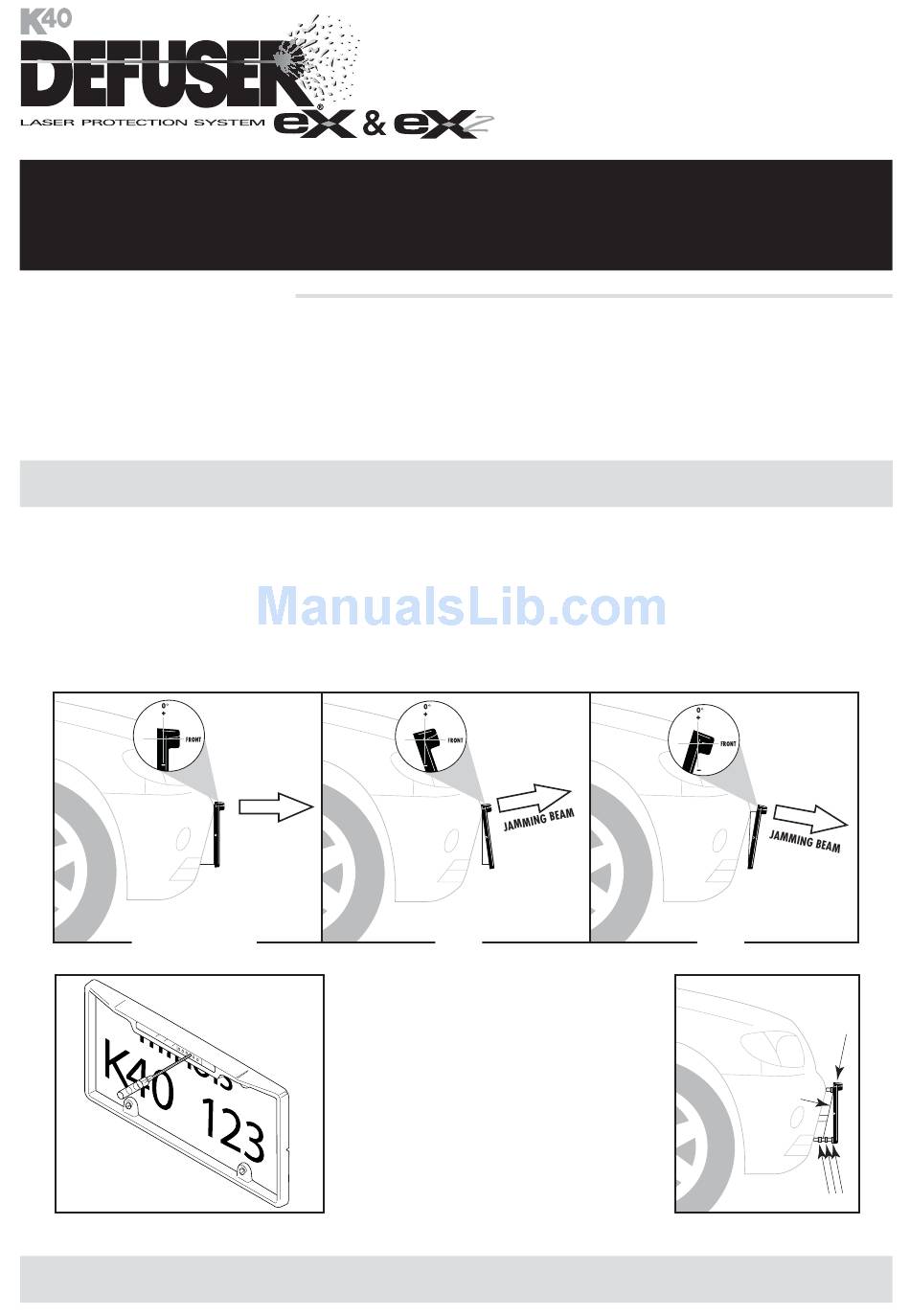

3. For proper performance, the Defuser EX must be mounted completely level. A unit which is positioned up,
down, or to the side by as little as 1° can reduce jamming effectiveness by as much as several hundred feet
(see diagram A1).
To assure the Defuser EX is properly leveled, insert the rod on the K40 supplied level into the leveling assem-
bly hole located on the top of the Defuser EX frame (see diagram A2). Be sure that the vehicle is on a level
surface before checking installation.
CORRECT
DIAGRAM A2
On some vehicles, it may be necessary to adjust or reposition the factory license plate bracket to
NOTE:
achieve the desired level installation.
system is recommended for larger size vehicles, or when a front license plate mount
Enlarged
View
JAMMING BEAM
LASER
DEFUSER EX
Use the K40 supplied nylon nuts
and bolts to correct either up or
down as needed (see diagram A3).
4. Route the black cable into the engine
compartment either through the grill
or under the bumper. Connect wires
per the separate enclosed block
diagram sheet.
Instructions
Enlarged
View
LASER
DEFUSER EX
NO
DIAGRAM A1
Installation
Installation
Instructions
& Recommended
Pr ocedures
Enlarged
View
DEFUSER EX
NO
FACTORY
MOUNTING
LOCATION
DIAGRAM A3
LASER
LASER
DEFUSER
MOUNTING NUTS
