ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own phillips screwdriver , adjustable spanner ,
and rubber mallet .

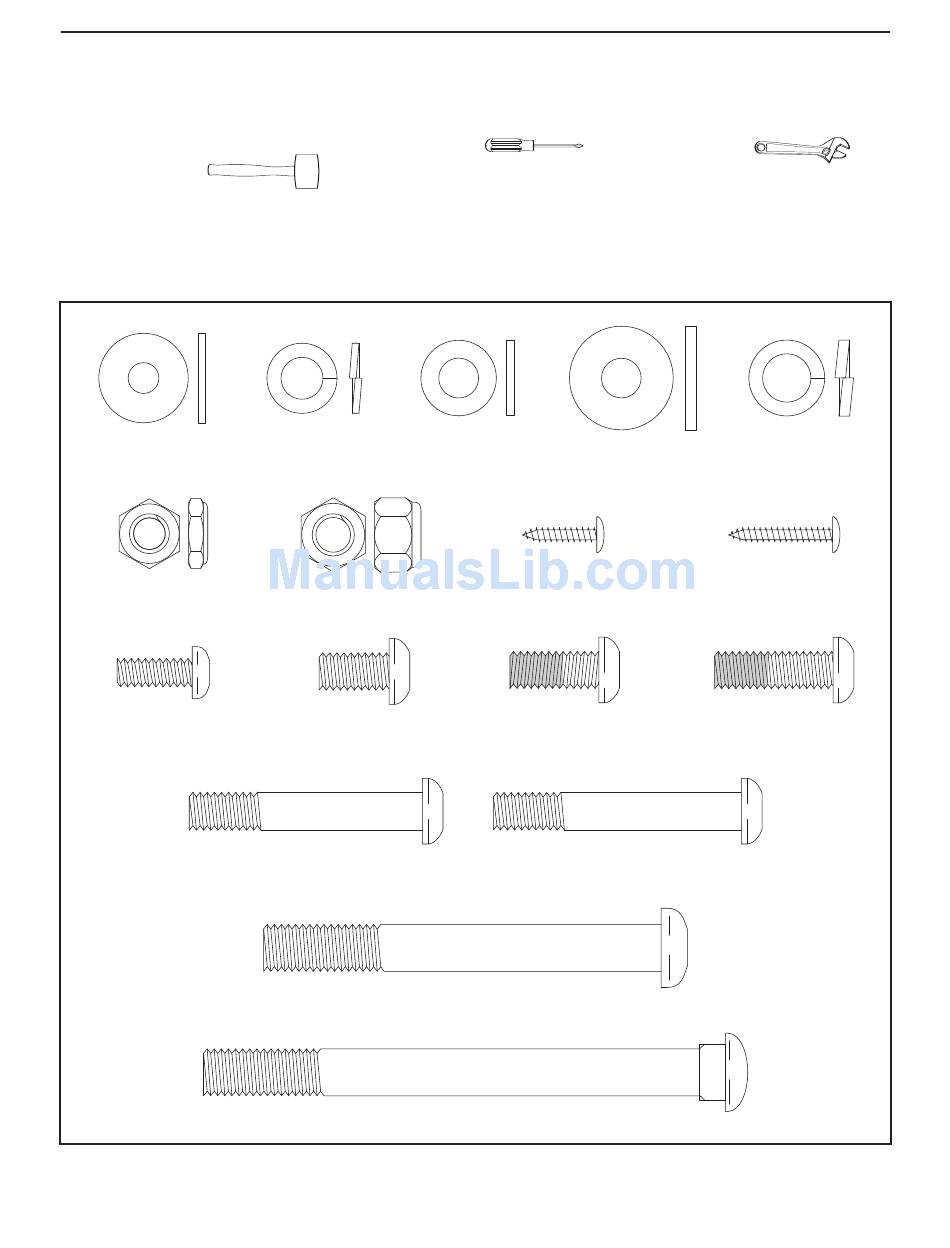

Refer to the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number following the
key number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
M6 Large Washer M8 Split Washer M8 Washer M10 Split Washer
M8 Large
(94)–2 (126)–4 (45)–2 Washer (53)–2 (70)–1
M8 Jamnut (127)–4 M10 Nylon Locknut M4 x 16mm Screw M4 x 22mm
(106)–4 (66)–4 Screw (93)–2
M8 x 19mm Patch M8 x 25mm Patch
M6 x 16mm Button M8 x 15mm Button
Screw (108)–2 Screw (22)–6
Screw (109)–2 Screw (65)–2
M8 x 50mm Button M8 x 53mm Button
Screw (20)–2 Screw (113)–4
M10 x 87mm Button
Screw (63)–1
M10 x 112mm Carriage Bolt (34)–4
5
