ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included allen wrenches and your own phillips screwdriver
rubber mallet

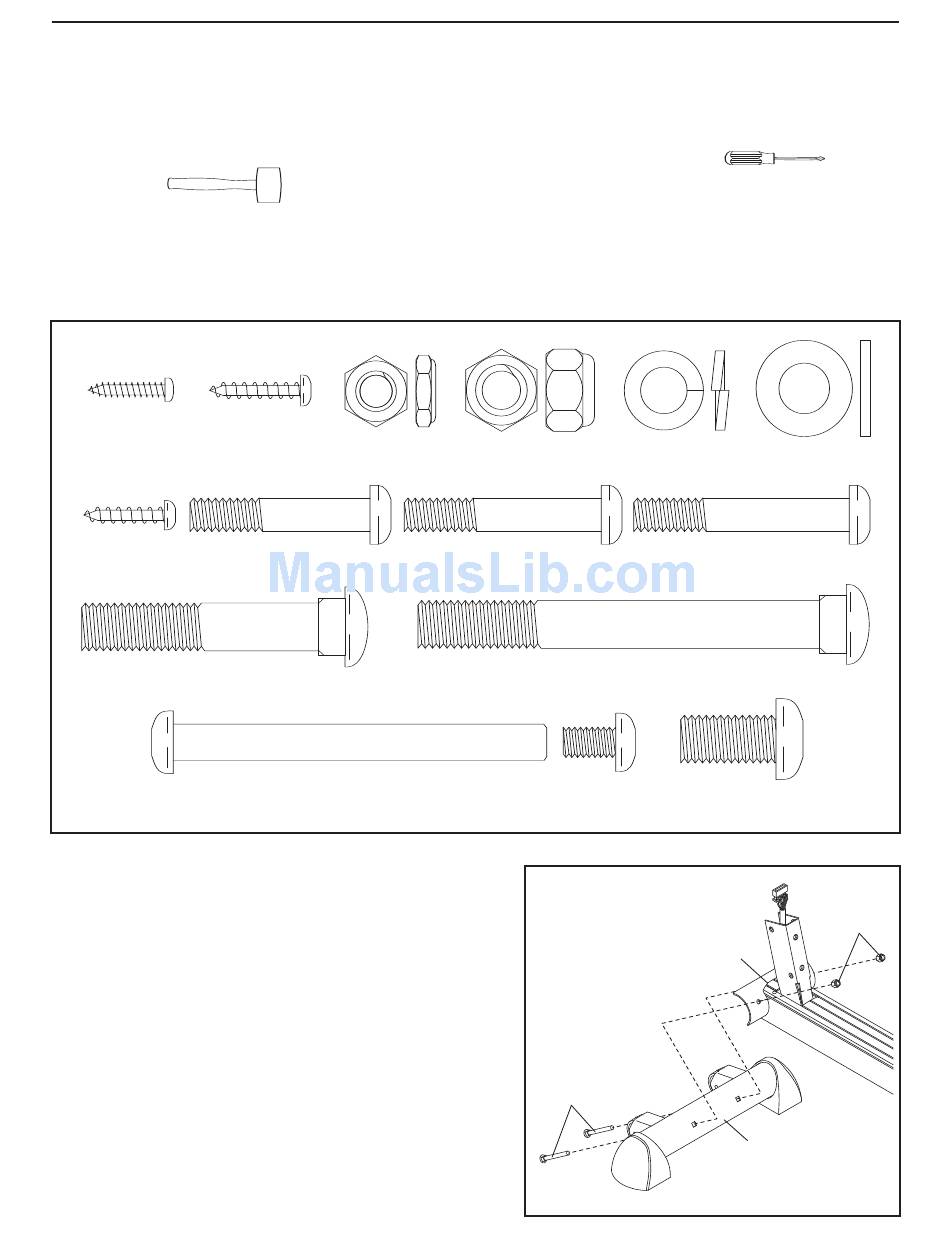

As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parentheses below each drawing is the key number of the part, from the PART LIST on page 21.
The number following the parentheses is the quantity used in assembly. Note: Some small parts may have
been preassembled. If a part is not in the parts bag, check to see if it is preassembled.
M4 x 16mm M4 x 19mm
Screw (94)–4 Screw (91)–4
M4 x 16mm
M8 x 38mm Button
Round Head
Screw (69)–1
M10 x 55mm
Carriage Bolt (83)–2
1. Identify the Front Stabilizer (8). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 90mm Carriage
Bolts (90) and two M10 Nylon Locknuts (89).
.
M8 Jam Nut
(81)–6
Bolt (85)–2
Bolt Set (65)–2
M10 Nylon
Locknut (89)–2 Washer (73)–6
M8 x 41mm Button
Bolt (80)–4
M10 x 90mm Carriage
Bolt (90)–2
1
90
4
M10 Split M10 Washer
(20)–2
M8 x 44mm Button
Screw (84)–4
M10 x 20mm Button
Screw (49)–6
1
8
and
89
