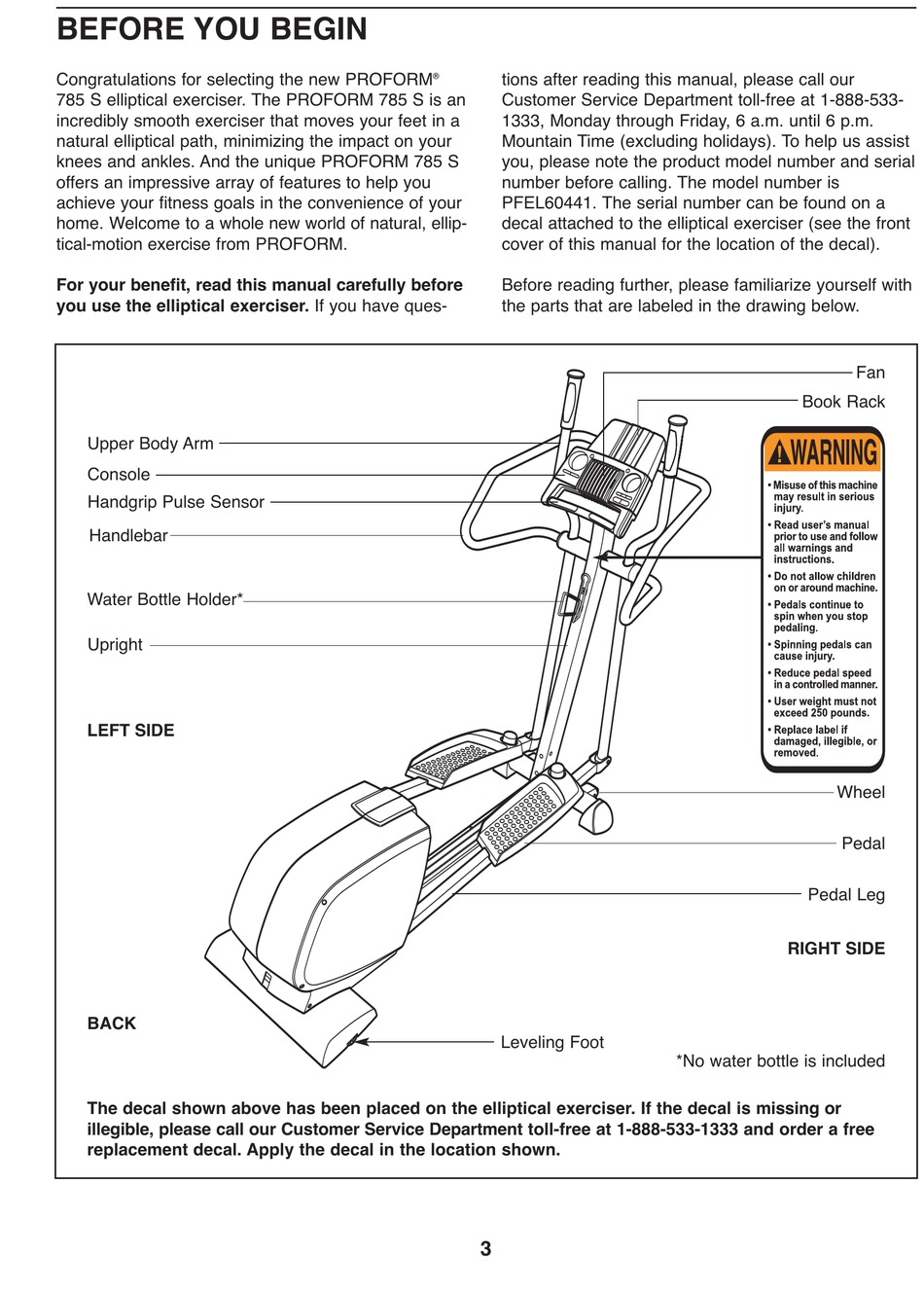

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM
785 S elliptical exerciser. The PROFORM 785 S is an
incredibly smooth exerciser that moves your feet in a
natural elliptical path, minimizing the impact on your
knees and ankles. And the unique PROFORM 785 S
offers an impressive array of features to help you
achieve your fitness goals in the convenience of your
home. Welcome to a whole new world of natural, ellip-
tical-motion exercise from PROFORM.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
Upper Body Arm
Console
Handgrip Pulse Sensor
Handlebar
Water Bottle Holder*
Upright
LEFT SIDE
BACK
The decal shown above has been placed on the elliptical exerciser. If the decal is missing or
illegible, please call our Customer Service Department toll-free at 1-888-533-1333 and order a free
replacement decal. Apply the decal in the location shown.
®
REV–B
* Must be able to apply decal with secure adhesion at a minimum temperature of 50 degrees F.
PART NO. BACKGROUND
CLEAR
209489
210125 CLEAR
Process Printed Vinyl
Material 4 mil clear vinyl backed with adhesive
Color Black Opaque – WARNING and triangle with "!"
reversed out of PMS 151 Orange
PMS 151 Orange – box behind signal word
PN 209489 White Opaque – body text and borders
PN 210125 Black Opaque – body text and borders
Dimensions
Die cut to 1.35" by 3.40", corner radius is .125"
Alt. Process Silkscreen upon approval
REVISED 08-29-03
tions after reading this manual, please call our
Customer Service Department toll-free at 1-888-533-
1333, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number is
PFEL60441. The serial number can be found on a
decal attached to the elliptical exerciser (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
TEXT/BORDER
PRODUCT COLOR
WHITE OPAQUE DARK
BLACK OPAQUE LIGHT
RELEASE APPROVALS
DRAWN BY:
CHECKED BY:
DSGN MNG.
ENG. APP.
MKT. APP.
Leveling Foot
3
Fan
Book Rack
Wheel
Pedal
Pedal Leg
PRODUCTS
DATE
X
M. Bennett 01/02/04
D. Shaw 01/02/04
RIGHT SIDE
R. Evans 01/02/04
X
B. Ellis 01/02/04
™
Health &
Fitness, Inc.
*No water bottle is included
