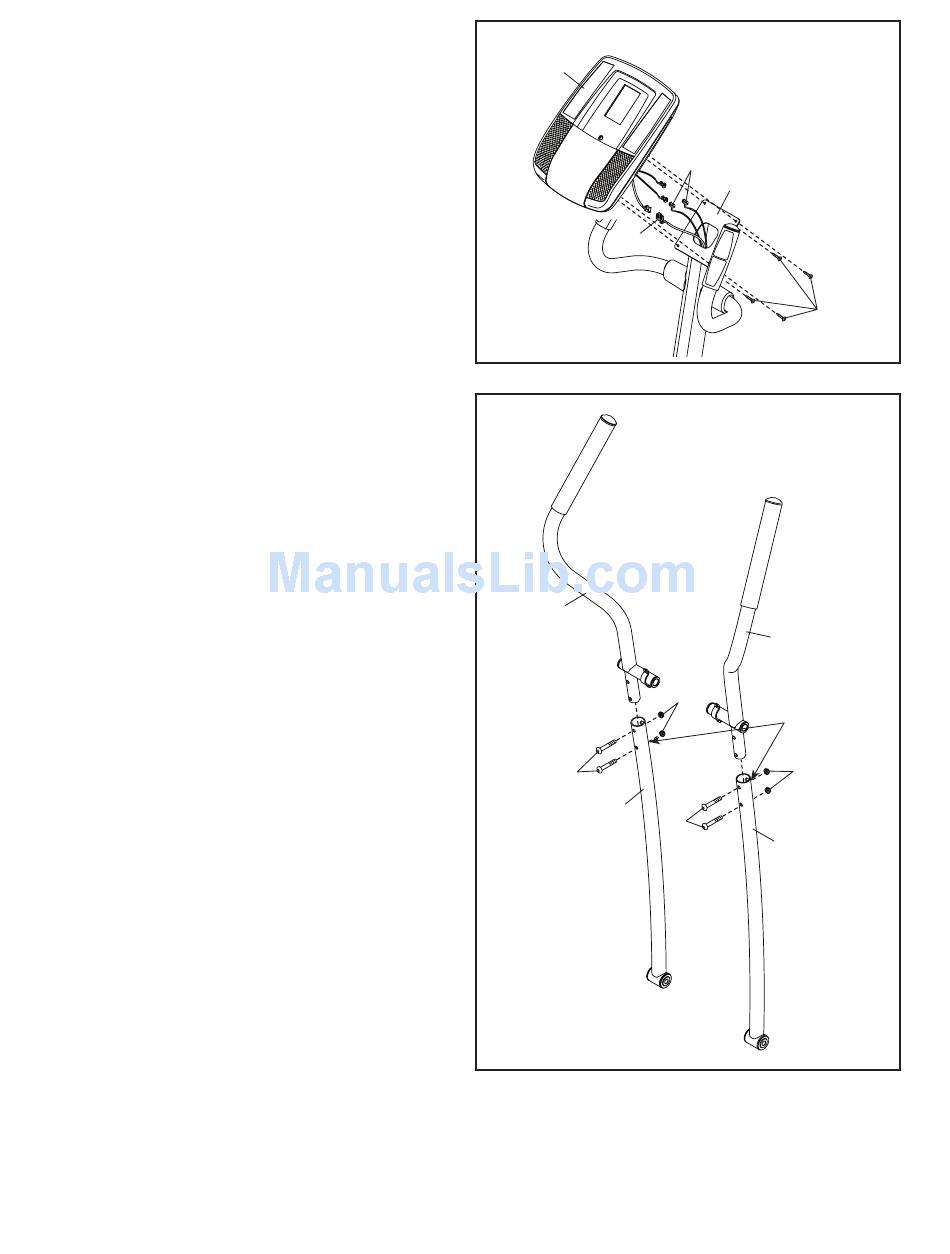

7. While a second person holds the Console (4)
near the Upright (2), connect the wires on the
Console to the Upright Wire (28) and to the
Pulse Wires (63).
Insert the excess wire into the Upright (2) or into
the Console (4).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x
16mm Screws (64).
8. Identify the Right Upper Body Arm (9).
Orient the Right Upper Body Arm (9) and an
Upper Body Leg (6) as shown. Insert the Right
Upper Body Arm into the Upper Body Leg.
Attach the Right Upper Body Arm (9) to the
Upper Body Leg (6) with two M8 x 35mm Bolts
(76) and two M8 Locknuts (77). Make sure that
the Locknuts are inside the hexagonal holes.
Do not fully tighten the Bolts yet.
Assemble the Left Upper Body Arm (8) and
the other Upper Body Leg (6) in the same
way.
7
4
28
8
8
76
6
9
Avoid pinching
the wires
63
2
64
9
77
Hexagonal
Holes
77
76
6
