Pro-Form 7.0 Re Elliptical Manual page 13

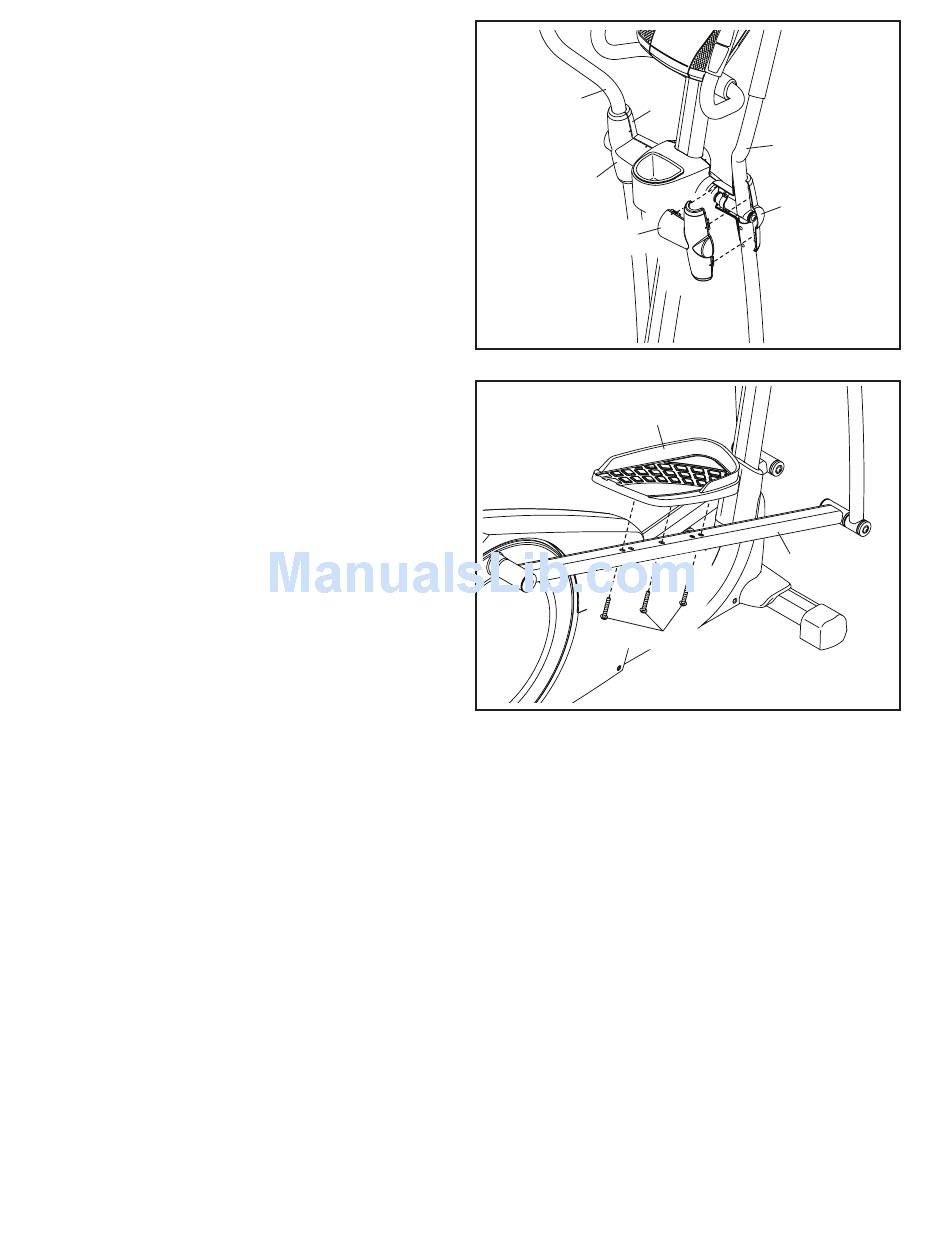

15. Identify the Rear Pivot Covers (19).
Attach a Rear Pivot Cover 19) around the Right
Upper Body Arm (9) by pressing it into the Front
Pivot Cover (22).
Repeat this step on the other side of the
elliptical.
16. Identify the Right Pedal (13) and orient it as
shown.
Attach the Right Pedal (13) to the Right Pedal
Arm (49) with three M10 x 35mm Screws (75).
Make sure to use the center hole and the two
outer holes to attach the Right Pedal.
Repeat this step on the other side of the
elliptical.
17. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. To
protect the floor or carpet from damage, place a mat under the elliptical.
