Understanding the Controls
and Front Panel
USER contRolS and SyStEm StatUS IndIcatoRS
The Eclipse user control panel displays important operating information. This section will help
you understand this operating information.
green, yellow, and Red Indicators on the front panel indicate the operating condition of
the device. For additional information on these indicators see the Alerts, Alarms and Trouble-
shooting Table in this manual.
14
Personal Ambulatory Oxygen System Users Manual Personal Ambulatory Oxygen System Users Manual
(continued)

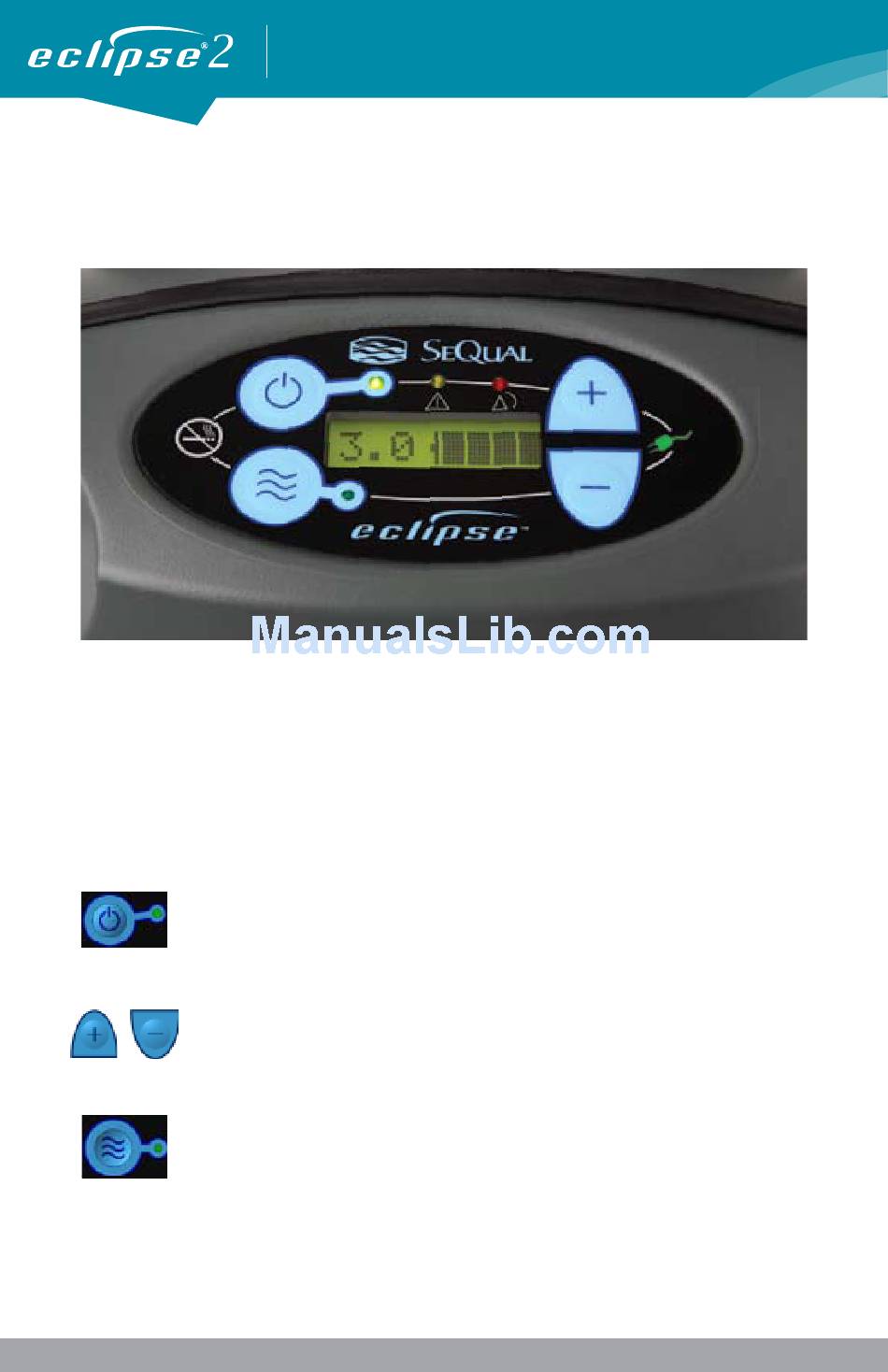

on/off button (green) Indicator:
or powers it OFF. The Green Indicator is illuminated when the device is
powered ON.
Increase or decrease flow Setting button:
flow to your prescribed level.
flow mode button and Indicator:
between Continuous Flow and Pulse Flow mode. The Pulse Flow mode
allows a significant increase in the duration-of-use time the device can
operate from the Power Cartridge. When the Pulse Flow Mode is acti-
vated, the green Flow Mode Indicator illuminates and a pulse of oxygen
is delivered with each inspiratory effort. When the pulse of oxygen is de-
livered, the flow mode indicator turns off. Changes in flow mode should
only be made on the recommendation of your physician.
This button powers the device ON
Use these buttons to set the
The Eclipse contains a button to toggle
