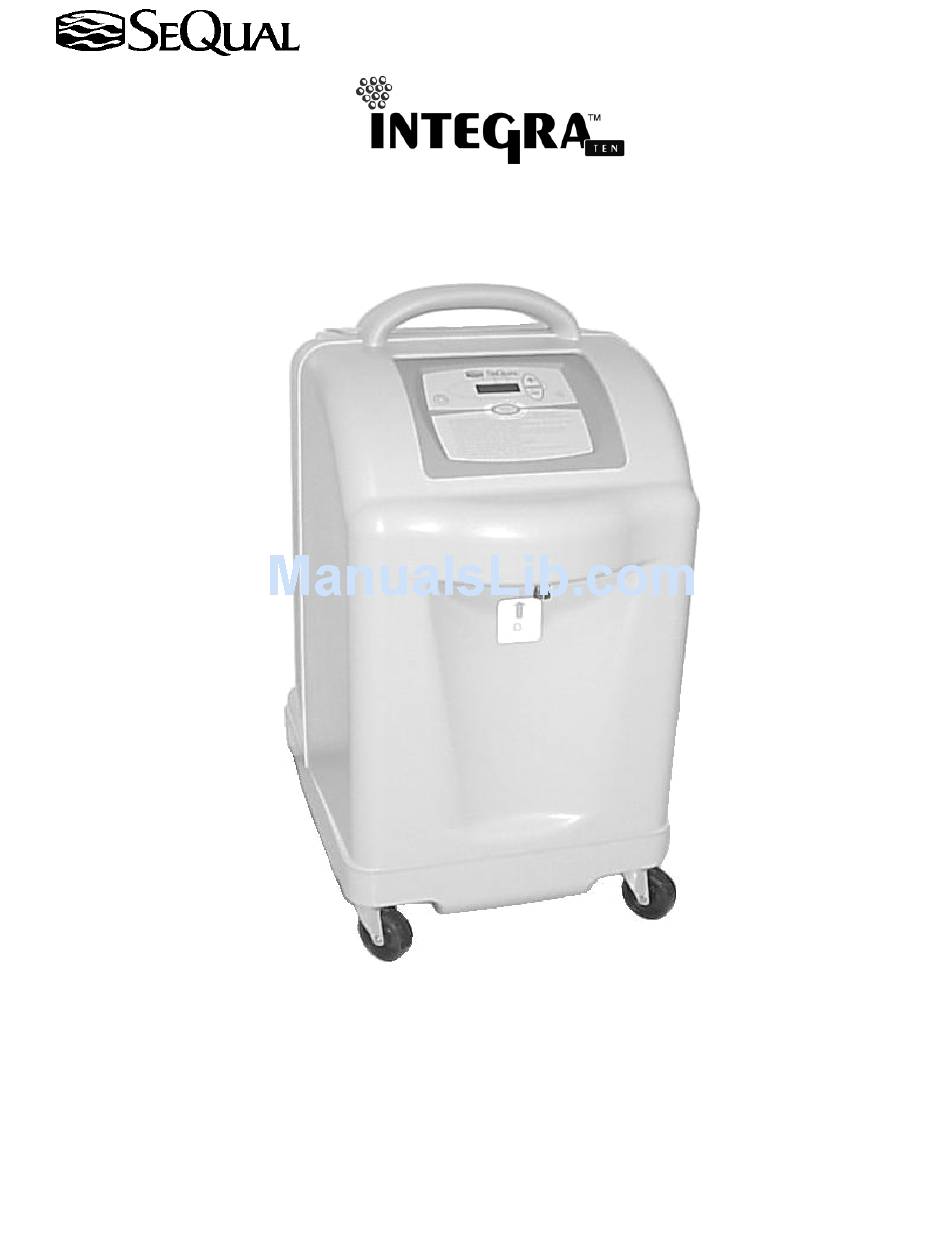

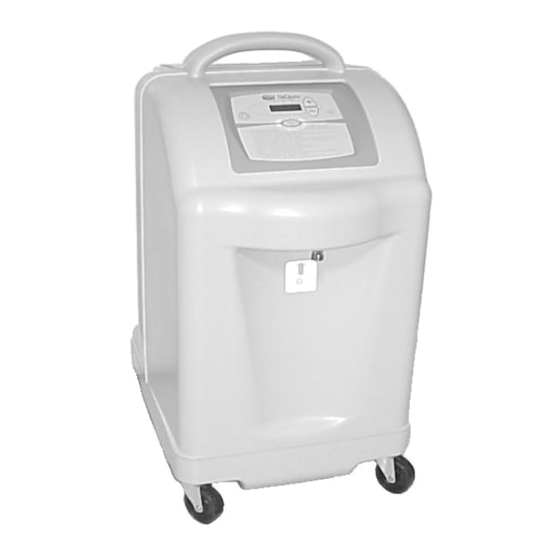

Oxygen Concentrator INTEGRA E-Z INSTRUCTION MANUAL Model 6323A-OM-10 Model 6323A-10 P/N 7040 Rev A July 2005... -
Page 2: Table Of Contents
Control Panel Display ........................10 Display of Operating Conditions ....................11 Usage............................. 11 Non-Usage ............................ 11 Maintenance ............................... 12 Trouble Shooting Guide..........................13 Technical Data ............................14 Electromagnetic Compatibility ........................15 Disposal of Equipment and Accessories ....................15 SeQual Technologies Inc. Part No: 7040... -
Page 3: Warnings And Cautions
"Read Instruction Manual" Do Not operate this oxygen concentrator without first reading and understanding this manual. If you are unable to understand the warnings and instructions, contact your local SeQual dealer or authorized service representative before attempting to use this oxygen concentrator. -
Page 4: Indications For Use
Indications for Use The SeQual Integra E-Z Oxygen Concentrator is intended to provide supplemental oxygen. It is not intended for life supporting, or life sustaining applications nor does it provide any patient monitoring capabilities. Contraindications An oxygen concentrator is not appropriate for any patient who would experience adverse health consequences as the result of such temporary interruption. -
Page 5: Symbols Used In Instruction Manual And On Oxygen Concentrator
"Electrical Shock” Indicates the presence of an electric shock hazard. Warning: To reduce the risk of electric shock, do not remove cover. There are no user serviceable parts inside. Refer servicing to a SeQual dealer or authorized service representative. "Audible Alarm" An audible indicator is provided to announce, in a tone distinctly different... -
Page 6: Oxygen Concentrator Information
Oxygen Concentrator Information SeQual's Integra E-Z Oxygen Concentrators are quiet, reliable and low maintenance sources of oxygen. The Integra E-Z is designed and constructed to consistently provide high concentrations of oxygen in a lightweight, compact cabinet that is easy to maneuver. -
Page 7: The Proper Location
If not, follow the instructions included with the cannula or facemask to attach them to the oxygen tubing. Use accessories recommended by your SeQual dealer/provider or authorized service representative. A cannula suitable for use with the 10L Integra E-Z is the Salter Labs High Flow Cannula (ref 1600HF). -
Page 8: Operating Your Oxygen Concentrator
If the red light turns on, you should discontinue use of the oxygen concentrator and refer to the troubleshooting section of this manual or contact your SeQual dealer/provider or authorized service representative to schedule a service call. -
Page 9: Installation Instructions
"+" − the Minus button to decrease the flow rate until the proper level is displayed. " " Warning: The prescribed flow rate setting should only be adjusted under the advice of a physician. SeQual Technologies Inc. Part No: 7040... -
Page 10: Power Management Feature
If the concentration level falls below preset levels, an indicator light will activate. Operating conditions are described in the table on the following page. Green Light Yellow Light Red Light LCD Flow Indicator Increase Flow Button (LPM) On/Off Button Decrease Flow Button SeQual Technologies Inc. Part No: 7040... -
Page 11: Display Of Operating Conditions
Warning: Use of certain administration accessories not specified for use with this oxygen concentrator may impair the performance. 4. Non-Usage - When not using the oxygen concentrator, press the On/Off button to turn it off. SeQual Technologies Inc. Part No: 7040... -
Page 12: Maintenance
Routine Maintenance: Routine maintenance consists of cleaning the air inlet filter at regular intervals to keep the unit functioning for years. The user can easily achieve this maintenance. When other than routine maintenance is needed, contact your SeQual dealer/provider or authorized service representative. Warning: Unplug the oxygen concentrator from the power outlet before cleaning or routine maintenance. -
Page 13: Trouble Shooting Guide
Remove power cord from wall Red Light On System malfunction outlet. Flow Indicator Blank Service required. Back Light On Note: If abnormal operating conditions are detected and cannot be remedied, contact your Service Provider SeQual Technologies Inc. Part No: 7040... -
Page 14: Technical Data
**Where equipped. Subject to ±5% system concentration accuracy, and for backpressures up to 7kPa. Outlet pressure may decline to 5.0 psig (34.5 kPa) nominal at 10,000 ft altitude. The system performance may decline above 10,000 ft (3048m). SeQual Technologies Inc. Part No: 7040... -
Page 15: Electromagnetic Compatibility
Disposal of Equipment and Accessories Follow local governing ordinances and recycling plans regarding disposal of device components. Authorized European Representative: Manufacturer: MeddiQuest Limited SeQual Technologies Inc. Business & Technology Centre 11436 Sorrento Valley Road Bessemer Drive San Diego, CA 92121 USA...
