Understanding the Controls
and Front Panel

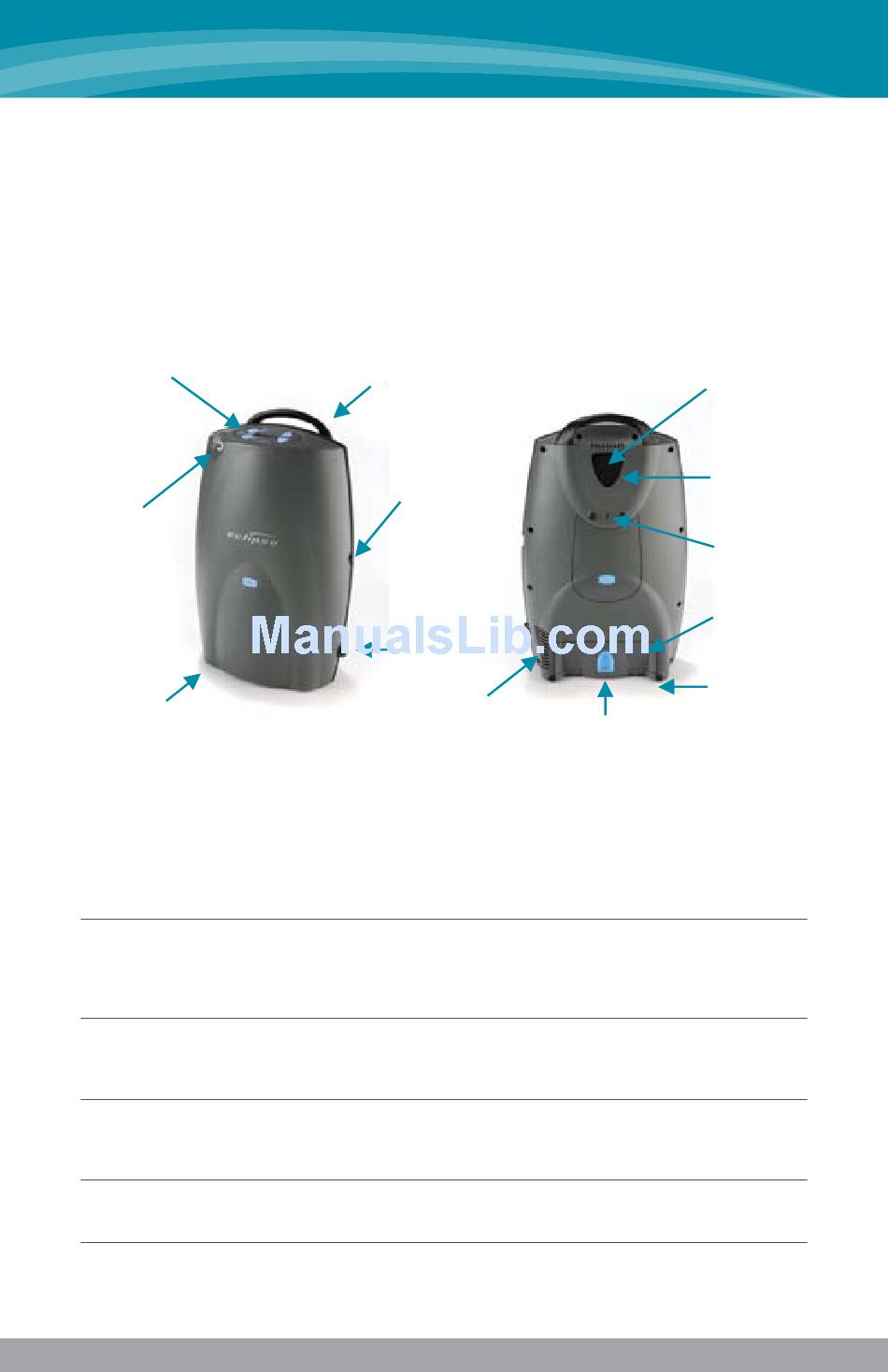

dEScRIptIon of thE EclIpSE 2

Become familiar with the key features of the Eclipse and the user control panel.
Control Panel
Oxygen
Outlet Port
Simplified User
Instructions
(Under Base)
fRont
Input/output connections
oxygen outlet port
air Inlet filter
Service port
External power
Receptacle
Exhaust vent
power cord Retainer
Handle
External Power
Receptacle
Power Cord
Retainer
Exhaust Vent
Oxygen supply tubing or a cannula is attached to this port.
Ambient air is drawn into the device through the air inlet located at
the top and rear of the device. This air inlet filter prevents dust and
debris from entering the Eclipse and should be cleaned regularly.
This connection allows qualified service personnel to diagnose and
monitor the Eclipse performance. It is not intended for the user.
The Eclipse AC or DC Power Supply power cords may be connected
to this receptacle.
Exhaust air from the Eclipse leaves the device from this vent.
Retainer to secure the Power Cord.
Service Port
(Not for Patient Use)
Main/Rating
Power
Label
Cartridge Latch
bacK
Air
Inlet Filter
Cart
Insert Screw
Power
Cartridge
(Under Base)
13
