Important!
The vibration value changes according to the area of
application of the electric tool and may exceed the
specified value in exceptional circumstances.

5. Before starting the equipment

Be sure to read the following information before you
use your cordless screwdriver for the first time:
1.
2. Only ever use sharp drill bits and screwdriver bits
which are suitable for the purpose and in
faultless condition.
3. Always check for concealed electric cables and
gas and water pipes when drilling and screwing
in walls.

6. Operation

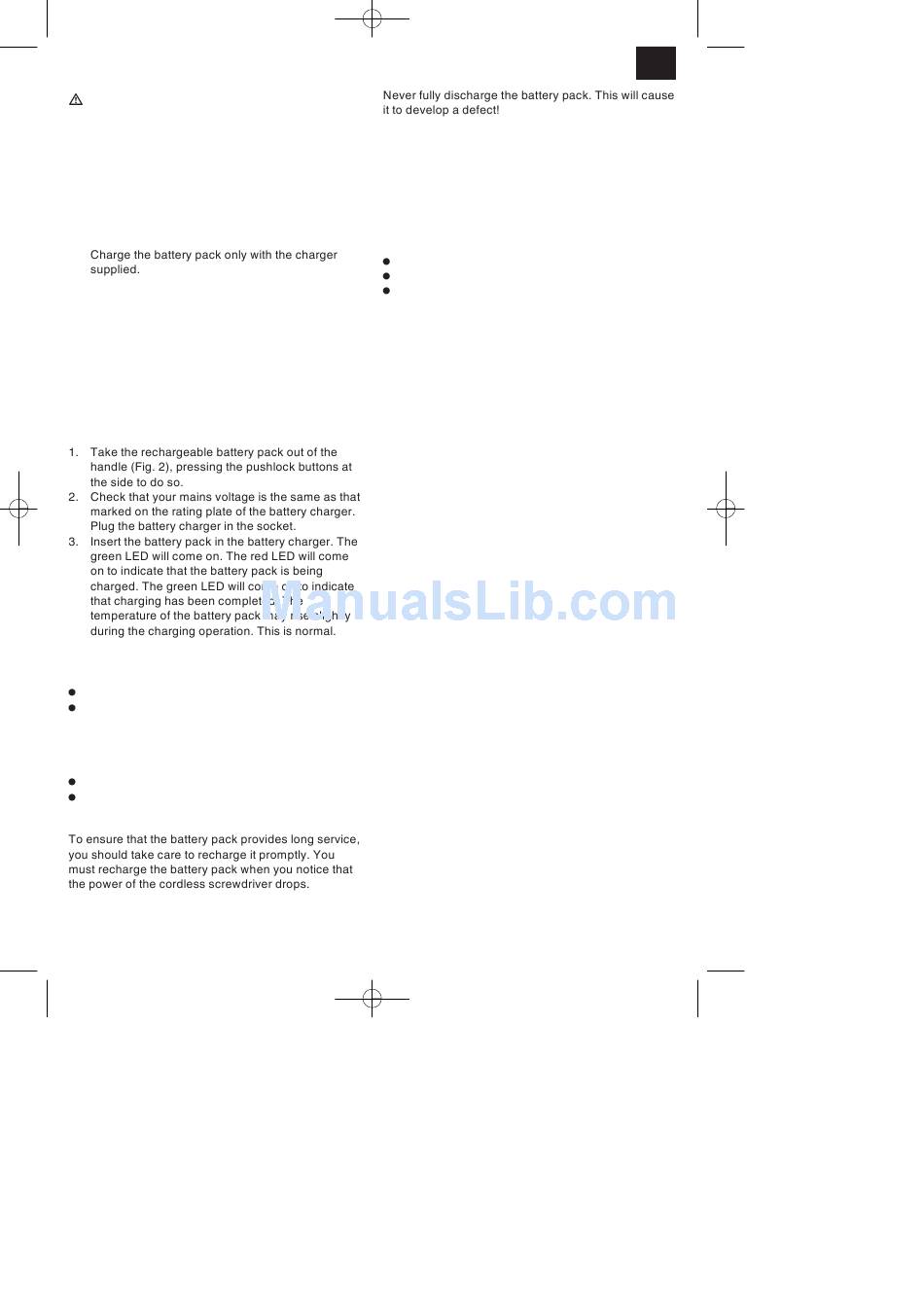

6.1 Charging the LI battery pack (Fig. 2/3)
If the battery pack fails to become charged, please
check
whether there is voltage at the socket-outlet
whether there is proper contact at the charging
contacts on the charger.
If the battery still fails to become charged, please
return
the charger
the battery pack
to our Customer Service Department.
10.04.2008 10:49 Uhr Seite 7
6.2 Torque setting (Fig. 4 / Item 1)
The cordless screwdriver is fitted with a mechanical
torque selector.
The torque for a specific size of screw is selected
with the set-collar (1). The correct torque depends on
several factors:
on the type and hardness of material in question
on the type and length screws used
on the requirements needing to be met by the
screwed joint.
The clutch disengages with a grating sound to
indicate when the set torque is reached.
Important! The tool must be at a standstill when
you set the torque with the setting ring.
6.3 Drilling/hammer drilling (Fig. 4)
Drilling (Fig. 4 / Item 1)
For drilling purposes, move the set-collar to the last
step „Drill". In this setting the slip clutch is inactive.
The maximum torque is available in drilling mode.
Hammer drilling (Fig. 4/Item 1/9)
For hammer drilling turn the setting ring (9) to the
"hammer" setting and the setting ring for the torque
(1) to the last setting "drill". The maximum torque is
available for hammer drilling.
6.4 Forward/Reverse switch (Fig. 5 / Item 3)
With the slide switch above the On/Off switch you
can select the direction of rotation of the battery-
powered drill/screwdriver and secure it against being
switched on accidentally. You can choose between
clockwise and anticlockwise rotation. To avoid
causing damage to the gearing it is advisable to
change the direction of rotation only when the tool is
at a standstill. The On/Off switch is blocked when the
slide switch is in centre position.
6.5 On/Off switch (Fig. 5 / Item 4)
Infinitely variable speed control is possible with the
On/Off switch. The further you press the switch, the
higher the speed of the battery-powered
drill/screwdriver.
6.6 Changing over from 1st gear to 2nd gear
(Fig. 6 / Item 7)
You can work at a higher or lower speed depending
on the position of the selector switch. To avoid
damaging the gear unit you should only change over
GB
7
