REPAIR PARTS
GSC13
Remote Condensing Units
GSC130181AB
GSC130181CA
GSC130241AB
GSC130301AB
GSC130361BB
GSC130361DA
GSC130361DB
GSC130361DF
GSC130361EA
GSC130361EB
GSC130363AB
GSC130363AC
GSC130421AB
GSC130481AB
GSC130481AC
GSC130483AB
GSC130483AC
GSC130484AB
GSC130601BB
GSC130601BC
GSC130603AB
GSC130603AC
GSC130604AB
GSC130604AC
This manual is to be used by qualified technicians only.
This manual replaces RP-431F.
© 2006-2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
www.goodmanmfg.com
www.amana-hac.com
June 2009
RP-431G
Advertisement
Related Manuals for Goodman REMOTE CONDENSING UNITS GSC13
Summary of Contents for Goodman REMOTE CONDENSING UNITS GSC13

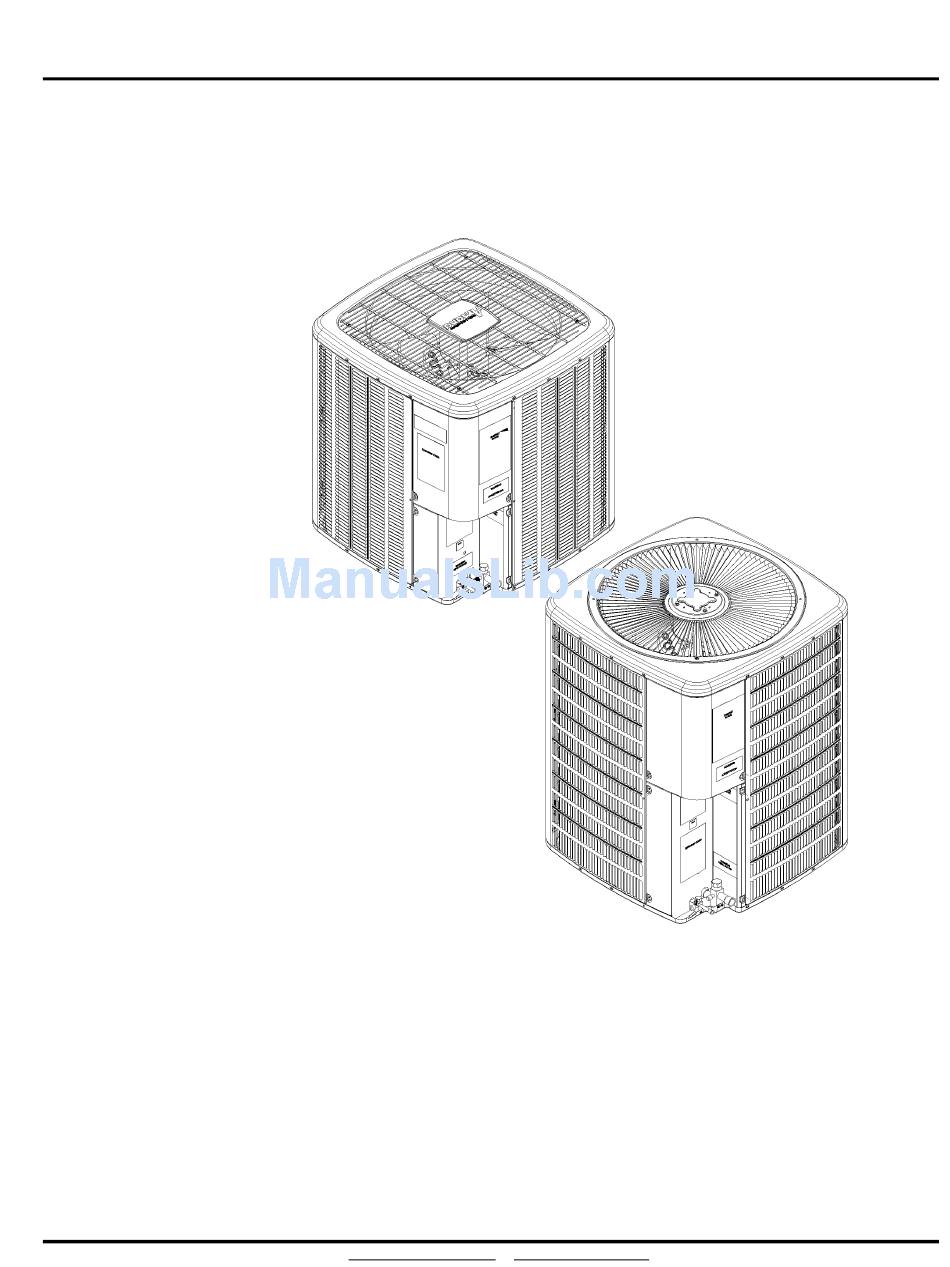

- Page 1 REPAIR PARTS GSC13 Remote Condensing Units GSC130181AB GSC130181CA GSC130241AB GSC130301AB GSC130361BB GSC130361DA GSC130361DB GSC130361DF GSC130361EA GSC130361EB GSC130363AB GSC130363AC GSC130421AB GSC130481AB GSC130481AC GSC130483AB GSC130483AC GSC130484AB GSC130601BB GSC130601BC GSC130603AB GSC130603AC GSC130604AB GSC130604AC This manual is to be used by qualified technicians only. This manual replaces RP-431F.
