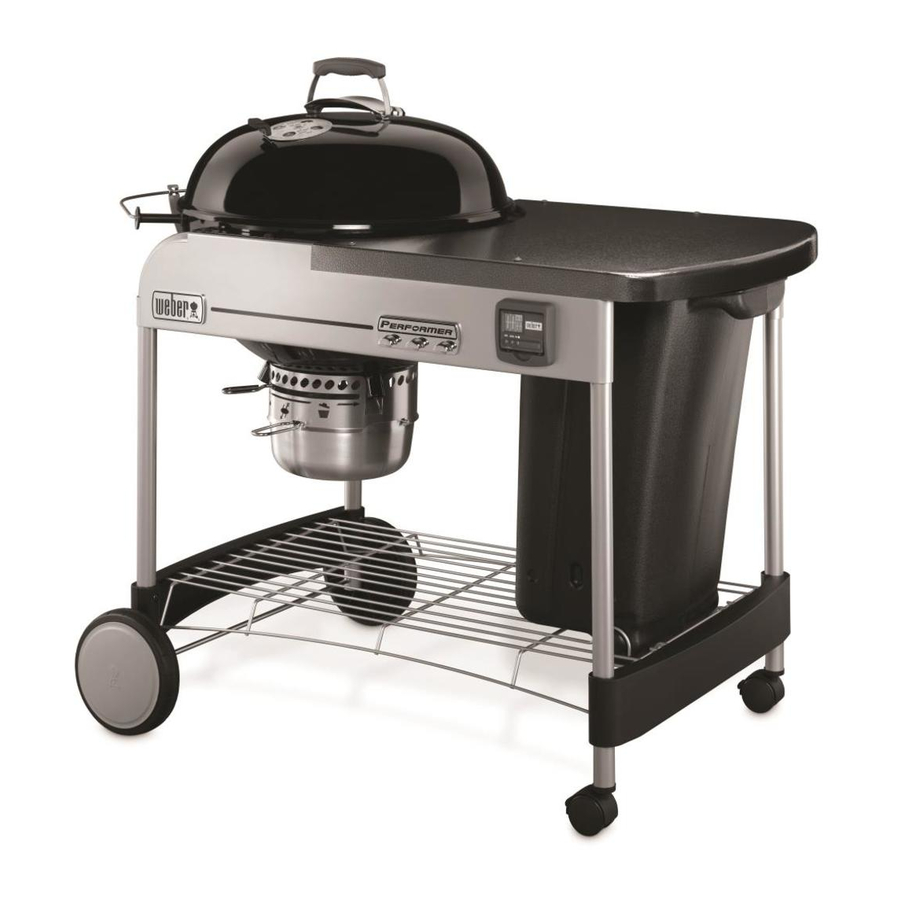

Weber Performer Touch-N-Go Ignition Owner's Manual
  1. Manuals
  2. Brands
  3. Weber Manuals
  4. Grill
  5. Performer Touch-N-Go Ignition
  6. Owner's manual

Weber Performer Touch-N-Go Ignition Owner's Manual

Gas ignition system
Hide thumbs
Table of Contents

Advertisement

Quick Links

TOUCH-N-GO
™
Owner's Manual
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
WARNING
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP tank not connected for use shall
not be stored in the vicinity of this or
any other appliance.
WARNING: Follow all leak check
procedures carefully in this manual prior
to barbecue operation. Do this even if
barbecue was dealer assembled.
NOTICE TO INSTALLER: These
instructions must be left with the owner
and the owner should keep them for future
use.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
WARNING: Do not try to light this
appliance without reading "Lighting"
instructions section of this manual.
IGNITION
Y
OU MUST READ THIS
BEFORE OPERATING YOUR GAS IGNITION GRILL
Gas Ignition
O
G
WNERS
UIDE
55015 02/03/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performer Touch-N-Go Ignition and is the answer not in the manual?

Questions and answers

Related Manuals for Weber Performer Touch-N-Go Ignition

Summary of Contents for Weber Performer Touch-N-Go Ignition

  • Page 1 TOUCH-N-GO IGNITION ™ Owner’s Manual DANGER If you smell gas: Gas Ignition 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, immediately call your gas supplier or your fire department. WARNING 1.

  • Page 2: Warnings

    DANGER Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. WARNINGS Do not store a spare or disconnected LP tank under or near this barbecue. Improper assembly may be dangerous.

  • Page 3: Warranty & Patents

    U.S. trademarks of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL 60067-6266, U.S.A. This product is covered by one or more United States patents and patents in other nations globally. Printed in the U.S.A.

  • Page 4: Table Of Contents

    Contents FEATURES: a) Exclusive Touch-N-Go ™ Gas Ignition System takes the hassle out of lighting charcoal briquets. Simply WARNINGS push a button and the system's gas burner ignites, Warranty & Patents starting the charcoal for you. No dangerous liquid starters to use or store, and no more liquid starter General Instructions aftertaste.

  • Page 5: General Instructions

    The gas must be turned OFF at the LP tank when has not resolved the issue to your satisfaction, then call the grill is not in use. Weber-Stephen Products Co., Customer Service Center. When the Performer Grill is stored indoors, the gas supply MUST BE DISCONNECTED and the LP tank stored outdoors in a well-ventilated space.

  • Page 6: Parts Listing

    39, 14-15 40-41 26,15...
  • Page 7 Parts can be ordered directly from Weber-Stephen Products Company by phone or mail. Note - Do not return parts to Weber-Stephen Products Co. without first contacting the Customer service Center by phone or mail. Returning the part may not be necessary.

  • Page 8: Tools Needed

    Tools needed: Check package contents The following item will be found in the top box. Phillips screwdriver Bottom rack 7/16 inch and 7/8 inch or an adjustable wrench The following items will be found in the large box (shipper). CharBin Storage Pliers Container Hammer...
  • Page 9 Filler adapter Charcoal grate The following items will be found in the bottom carton. Hinged cooking grate Wheel frame Burner cleaning tool/ match holder Two bottom connectors Two wheels Front panel Axle Ash Catcher Ring Caster frame assembly The following items will be found in the hardware pack.

  • Page 10: Assembly Instructions

    Assembly Instructions Step 1 Assemble wheels You will need: axle, two wheel hubcaps, two wheels, wheel frame, hammer and a block of wood. Place one end of the axle on the block of wood (or other protected surface). Tap on one hubcap. Put one wheel on the axle, WEBER side toward the hubcap.
  • Page 11 Step 2 (cont.) - Once the One Touch Handle is through the handle slot of the Ash Catcher Ring, tilt the ring back down and position the locking clips over the couplings on the bottom of the bowl. Once the the locking clips are in position over the couplings push the ring straight down until the clips snap Caution: Make sure all Locking Clips are fully engaged in each coupling as shown below.

  • Page 12: Assembly

    Step 3 Step 4 Assemble the frame Continue frame assembly You will need: top frame assembly, wheel frame You will need: frame assembly, front panel, four 1/2 inch assembly and caster frame assembly. bolts, four nylon washers and a 7/16 inch open-end or an adjustable wrench.
  • Page 13 Step 5 Step 6 Complete frame assembly Uncover CharBin lid You will need: two bottom connectors, tank holder Remove protective plastic covering from CharBin lid. assembly, four 1 3/4 inch bolts, four nylon washers and a Figure 6. 7/16 inch open-end or an adjustable wrench. CharBin lid Turn over partial frame assembly and remove twist tie from CharBin lid.
  • Page 14 Step 7 Step 8 Install bowl assembly Install igniter You will need: bowl assembly, four 1 3/4 inch bolts, eight Note - The igniter wires have been attached to the nylon washers, four aluminum washers, four acorn nuts, igniter for factory testing of the ignition system. There is 7/16 inch open-end or adjustable wrench and pliers.
  • Page 15 If the tank manufacturer has not resolved the issue to The bottom of the tank rests firmly on the lower lip of the your satisfaction, then call Weber-Stephen Products Co., tank holder assembly. Figure 9 (b). Customer Service Center.
  • Page 16 The hose and regulator are connected in the following Step 11 manner: Check for gas leaks Slide back the collar of the quick disconnect on the tank valve. Figure 10 (a). Push the male fitting of the regulator DANGER into the quick disconnect, and maintain Do not use an open flame to check for gas pressure.
  • Page 17 If bubbles occur, or if a bubble enlarges, the connection Step 12 is leaking. Turn OFF the gas at LP tank. Add bowl panel, tool holders and CharBin If the leak is at connection a) DO NOT OPERATE THE Storage Container BARBECUE.
  • Page 18 Step 13 Note: Before sliding the CharBin into place check that Install ash catcher, control panel & bottom rack the Cooking grate holder is sitting loosely on the frame You will need: ash catcher, control panel and bottom brace and is conforming to the frame brace. Figure 14 a. rack.
  • Page 19 Step 14 Add grates, Char-Basket Fuel Holders and lid You will need: charcoal grate, Char-Baskets, hinged cooking grate and lid. Place charcoal grate on bottom supports in bowl. Set Char-Baskets on charcoal grate, cooking grate on top supports, and lid on bowl. Figure 16. Figure 16...

  • Page 20: Operating Instructions

    Operating Instructions Lighting 4) Position filled Char-Baskets over burner. Figure 3. Char-Basket Fuel Holders DANGER Open lid before lighting. Do not use any flammable liquids such as starting fluid, Burner gasoline, alcohol or any form of self- lighting charcoal at any time, including when manually lighting.

  • Page 21: Insect Alerts

    Manual Lighting Insect Alert Your Performer Grill, as well as any outdoor gas WARNING: Do not attempt to light manually without using the match holder. appliance, is a target for spiders and insects. They can nest in the venturi section of the burner tube causing gas 1) Open lid.

  • Page 22: Cooking Methods

    Cooking Methods 1. Fill each Char-Basket with 25 briquets and place with flat sides together in center of charcoal grate. Direct Method 2. Ignite charcoal (approx. 3-5 minutes), then turn OFF gas supply at the tank. For foods requiring fewer than 30 minutes of cooking time, cook directly over the coals, absorbing the 3.

  • Page 23: Periodic Cleaning

    Periodic Cleaning Storage To remove ashes from the bowl, move control rod side to When the Performer Grill is stored indoors, the gas side so damper blades sweep ashes through the bowl supply MUST BE DISCONNECTED and the LP tank vents and into the ash catcher.

  • Page 24: Lp Tank Information

    To perform leak checks: Turn test valve to the CLOSED the tank manufacturer has not resolved the issue to your position. Figure 11. Turn tank valve ON satisfaction, then call Weber-Stephen Products Co., (counterclockwise). Check for leaks by wetting the Customer Service Center.

  • Page 25: Safe Handling Tips For Lp Gas

    Safe handling tips for LP Gas Liquid Propane (LP) Tank(s) The LP tank and connections supplied with your Liquid Propane (LP) gas is a petroleum product as Weber Performer Grill have been designed and are gasoline and natural gas. LP gas is a gas at tested to meet government, and Underwriters regular temperatures and pressures.

  • Page 26: Troubleshooting

    Troubleshooting Problem Check Cure Burner burns with a yellow or Inspect burner for possible Clean burner. See Section orange flame, in conjunction obstructions. "Maintenance." with the smell of gas. Burner does not light, or flame Is flow limiting device activated? (See Section "Lighting is low.

  • Page 27: Maintenance

    Maintenance Orifice clip After a period of nonuse we recommend that you perform the following maintenance procedures for your safety. Hose fitting Check hose before each use of barbecue for nicks, and orifice cracking, abrasions or cuts. If the hose is found to be unserviceable, do not use the barbecue.
  • Page 28 PERIODIC QUICK CLEANING BURNER FLAME PATTERN The burner has been factory set for the correct air and We recommend that you periodically brush the gas mixture. The correct flame pattern is shown in Figure outside of the burner slots with a brass wire brush and 17.
